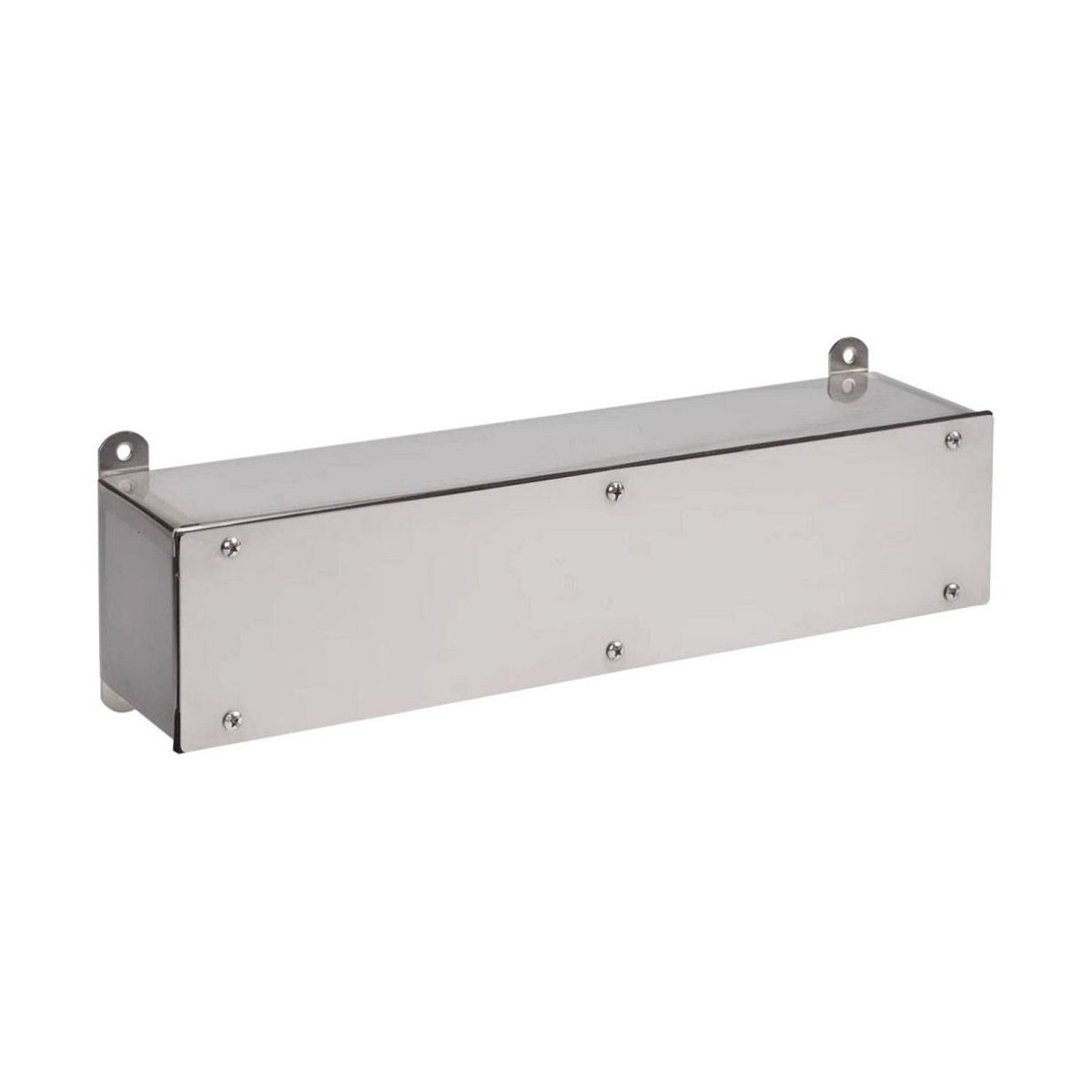

NVENT F121224SCSS Wire Trough Type 4X – Wire and Cable Management

The NVENT F121224SCSS Wire Trough is designed for secure wire and cable management in environments requiring corrosion resistance and protection against dirt. This Type 4X wiring trough is suitable for applications where frequent access is not necessary, providing durable protection in both indoor and outdoor settings. It is an ideal solution for electrical distributors and switchgear suppliers seeking reliable lighting solutions and wire and cable containment.

Specifications

• Manufacturer Part #: F121224SCSS
• Type: Screw Cover Wiring Trough, NEMA Type 4X
• Dimensions (AxBxC): 12.00 x 12.00 x 24.00 in. (305 x 305 x 610 mm)
• Number of Cover Screws: 6
• Cover Gauge: 12 gauge stainless steel
• Body Gauge: 14 gauge stainless steel
• Material: Type 304 stainless steel
• Finish: No. 2B finish
• UL Listed: UL 870, 50E Listed; Types 3R, 4, 4X, 12; File No. E27524
• cUL Listed per CSA C22.2 No. 26 & No. 94.2; Types 3R, 4, 4X, 12
• Ingress Protection: IEC 60529, IP66
• Product Weight: 40.0 lbs

Features

• Seams continuously welded and ground smooth for durability and protection
• Oil-resistant gasket and adhesive ensure secure sealing
• Captivated stainless steel cover screws threaded into sealed walls prevent loosening
• No holes or knockouts maintain enclosure integrity
