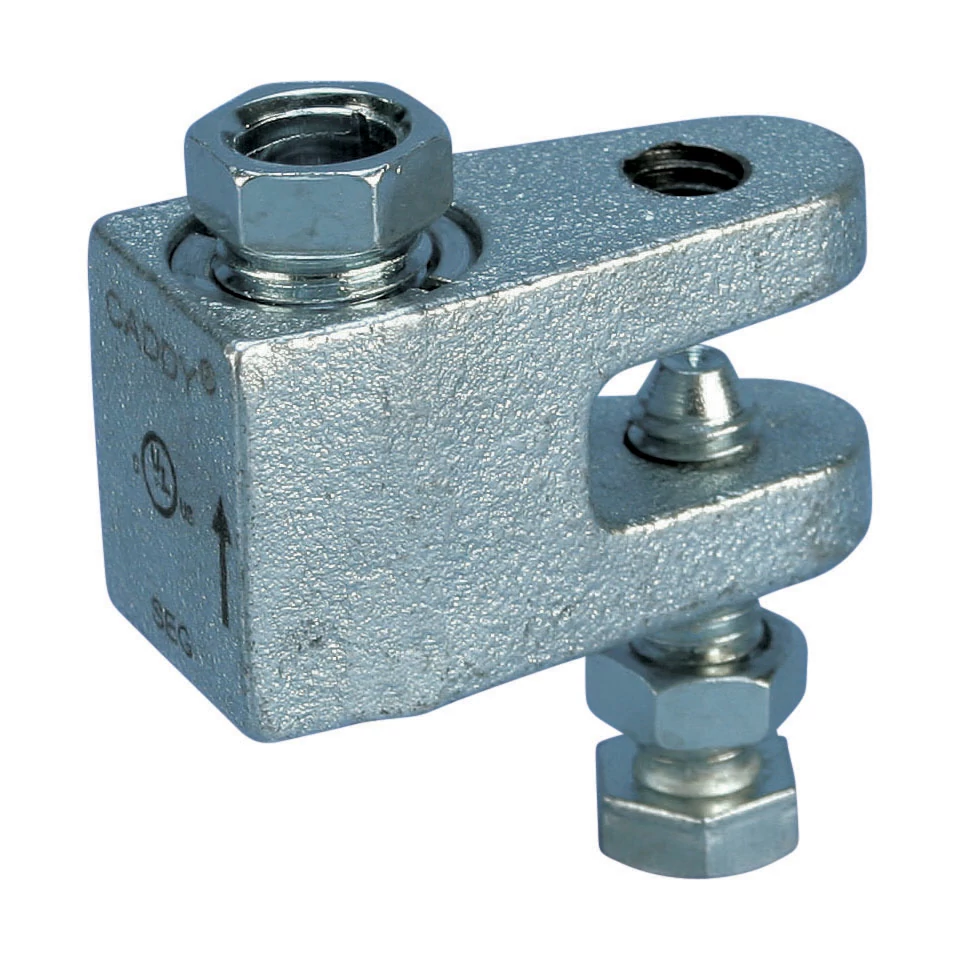

Features

• Prefabricated assemblies easily lift and lock into place, helping to save time and money
• Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
• Lock nut can be finger tightened, locking the rod in place
• Works with slightly damaged threads and minor burrs on the threaded rod
• Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19 and 23)

Certifications

• cUL - ULC/ORD-C203
• UL - ANSI/UL 2239
• cUL - CAN/CSA C22.2 No. 18.4-04
• UL - ANSI/UL 203

Specifications

• Weight: 0.19 kilogram
• Material: Cast Iron
• Finish: Electrogalvanized
• Rod Size (RS): 0.375
• Flange Thickness (FT): 3-10.00
• Height (H): 30-30.00
• Length (L): 52.3-52.30
• Width (W): 25.3-25.30
• Static Load 1 (F1): 1,100
• Static Load 2 (F2): 2,200
• Sub Brand: CADDY
