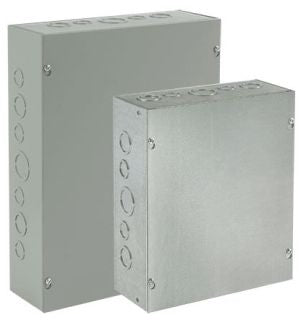

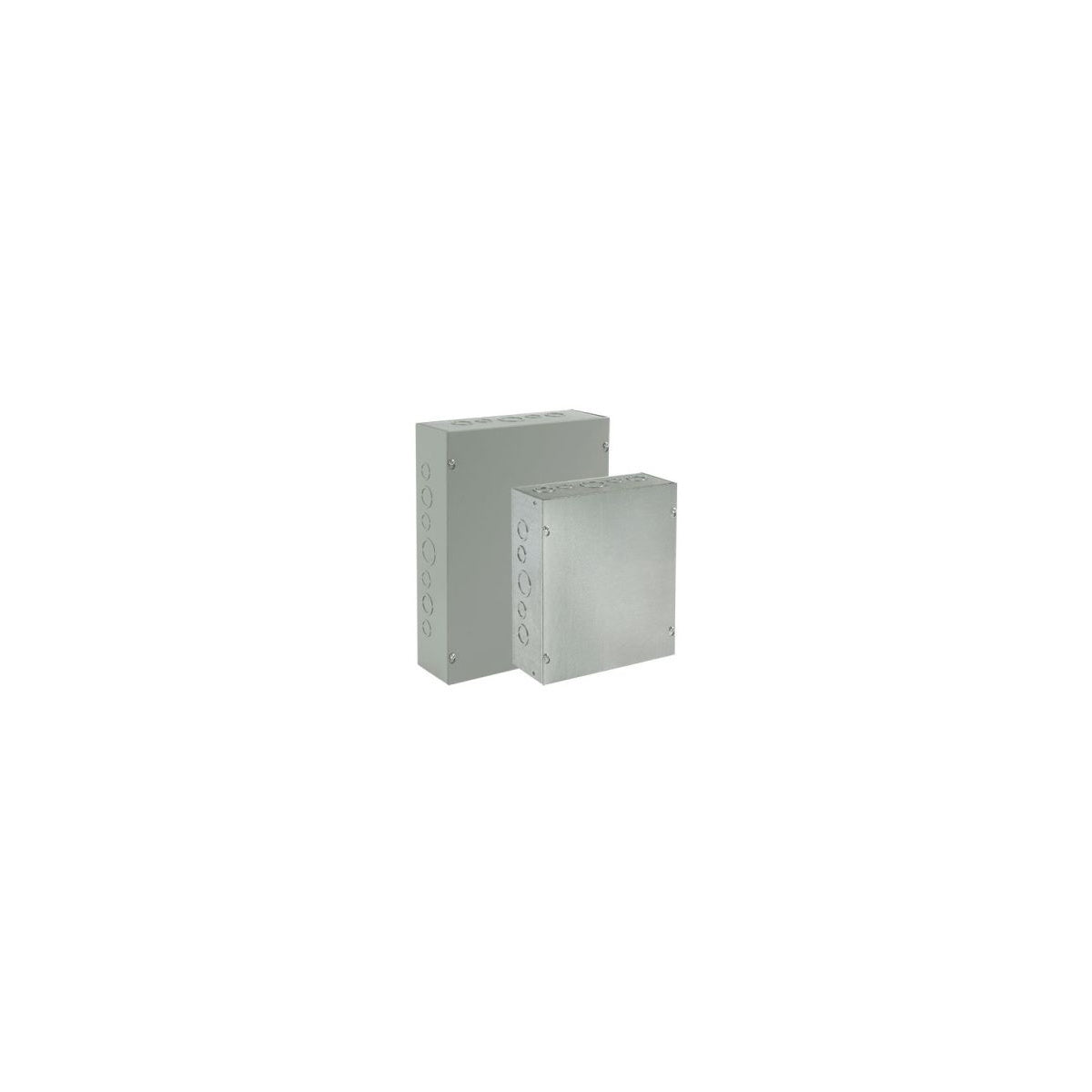

NVENT ASG18X18X8NK Pull Box Electrical Enclosure

The NVENT ASG18X18X8NK is a Type 1 screw-cover pull box designed for commercial and general industrial electrical applications requiring a junction or pull box. It is suitable for electrical distributors and switchgear suppliers seeking reliable enclosures for wire and cable management and lighting solutions. The enclosure provides durable protection and easy access for wiring connections.

Specifications

• Catalog Number: ASG18X18X8NK
• Dimensions (HxWxD): 18.00 x 18.00 x 8.00 inches (457 x 457 x 203 mm)
• Material: Galvanized steel
• Body Thickness: 16 gauge
• Cover Thickness: 16 gauge
• Number of Cover Screws: 4
• Finish: ANSI 61 gray polyester powder paint inside and out
• Industry Standards: UL 50, 50E Listed; cUL Listed per CSA C22.2 No 40; NEMA/EEMAC Type 1; IEC 60529, IP30
• Product Weight: 21.4 lbs
• UPC: 783510863906

Features

• Flat, removable cover with unique keyhole slots fastened with plated steel screws
• Optional easy-to-remove knockouts on all four sides in various sizes
• Provision for grounding
• Mounting holes on back of box for secure installation
• Corrosion-resistant galvanized steel construction with powder coat finish
