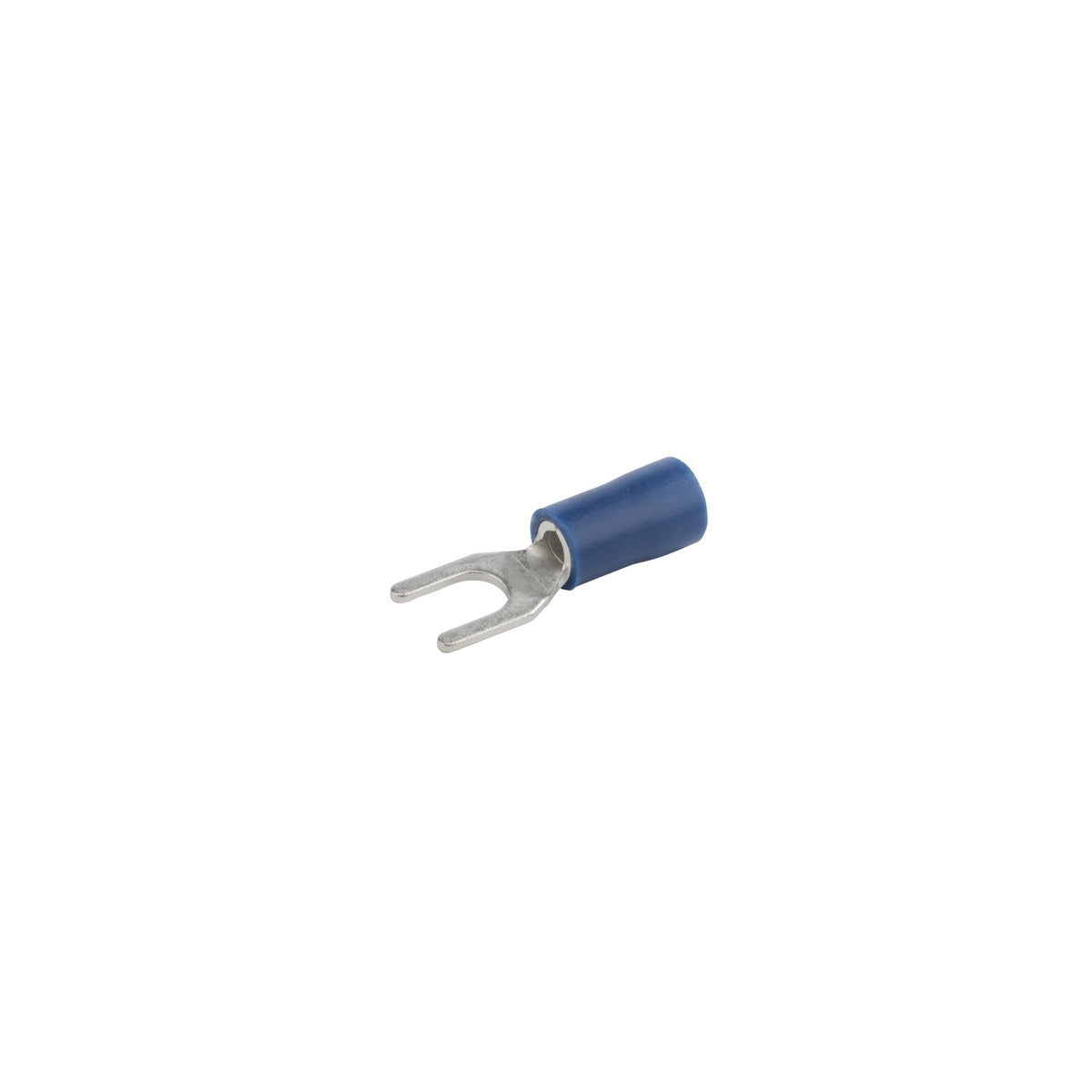

NSI S16-8V-S Wire Terminal Spade Vinyl Insulated 16-14 AWG

The NSI S16-8V-S is a vinyl insulated spade wire terminal designed for wire termination applications. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable connections for 16-14 AWG wire sizes. This terminal facilitates secure and rapid insertion on mounting screws, commonly used in wire and cable assemblies within various electrical systems.

Specifications

• Application: Wire Termination
• Wire Range: 16-14 AWG
• Material: Vinyl Insulation
• Color: Blue
• Length: 1.103 in
• Width: 0.388 in
• Height: 0.058 in
• Number of Terminals: 1
• Environmental Conditions: 75 °C
• Product Weight: 0.0480 lbs
• Manufacturer Part #: S16-8V-S

Features

• Electro tin plated copper spade terminal with vinyl (PVC) insulation rated for 300V and 75 °C
• Open tongue end allows for rapid insertion on mounting screws, ideal for free-standing studs
• Provides secure wire termination for 16-14 AWG wires
• Blue vinyl insulation offers electrical protection and easy identification

Downloads & Links

• Spec Sheet
