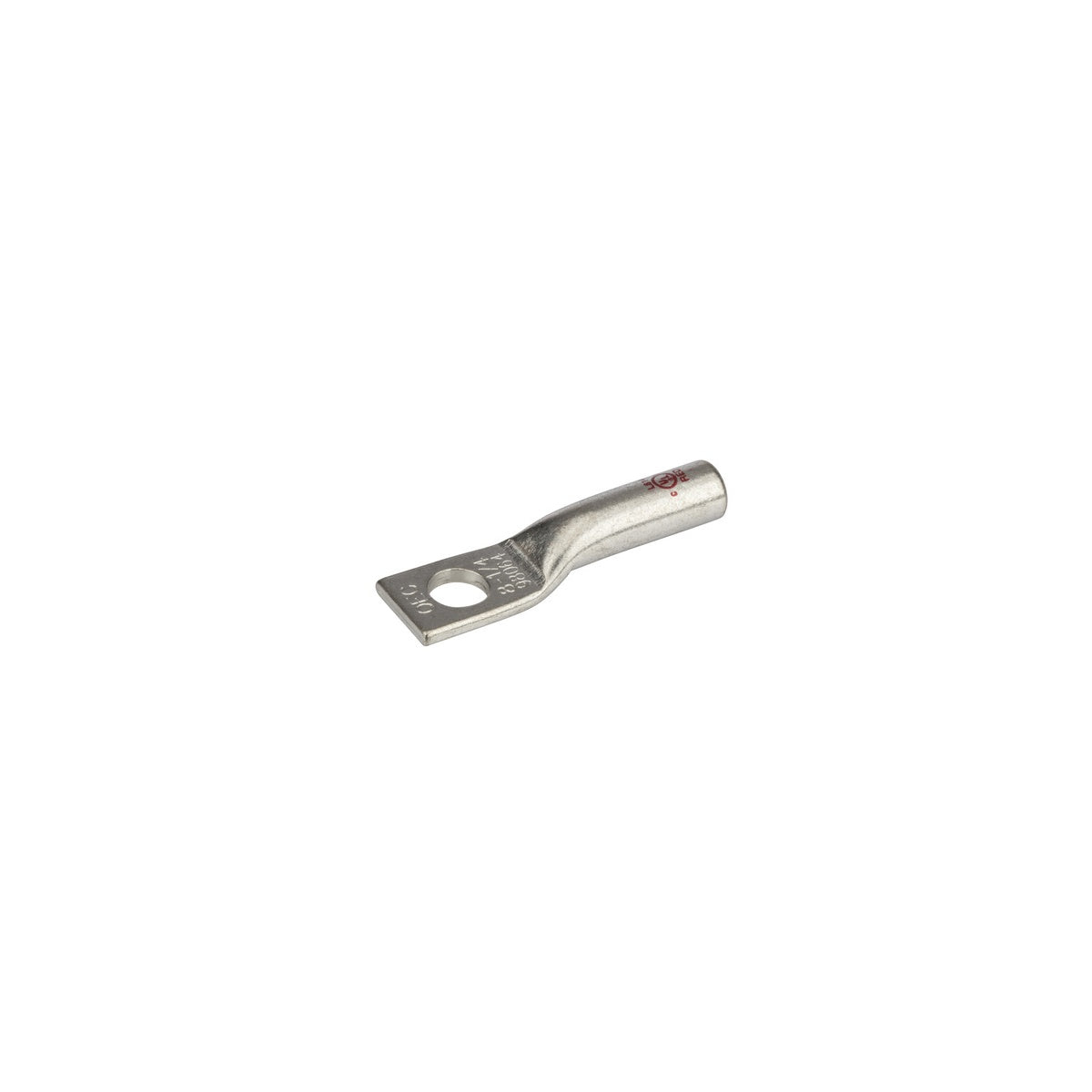

NSI L814 Copper Compression Lug for Wire Termination

The NSI L814 is a tin-plated long barrel copper compression lug designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. Suitable for #8 AWG stranded wire, this lug features a single 1/4" mounting hole and is engineered for reliable electrical connections in wire and cable assemblies. It is ideal for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors.

Specifications

• Wire Size: #8 AWG (Stranded)
• Stud Size: 1/4 inch
• Material: Copper
• Finish: Tin-Plated
• Color: Red
• Length: 1.52 in
• Width: 0.42 in
• Height: 0.295 in
• Mounting: 1/4 inch Mounting Hole
• Number of Holes: 1
• Temperature Rating: 90 °C
• Voltage Rating: 600V
• Product Weight: 2.2 oz
• Manufacturer Part Number: L814

Features

• Produced from high conductivity copper tubing for optimal electrical performance
• Tin-plated to provide corrosion resistance and low contact resistance
• Color coded red for easy identification
• UL486A Listed Wire Connector and UL467 Grounding & Bonding certified for sizes 8 AWG to 3/0 AWG
• Marked with die index for traceability
• Listed for 35KV max when properly installed according to cable manufacturer instructions

Downloads & Links

• Spec Sheet
