NSI L50048 CMP LUG CU LONG 500 MCM 1/2 BOLT SIZE
SKU: #409783
Part: #L50048
UPC: 662381034175
NSI L50048 CMP LUG CU LONG 500 MCM 1/2 BOLT SIZE
SKU: #409783
Part: #L50048
UPC: 662381034175
Total Price: $31.89 per each Sold in increments of 1 each
Description

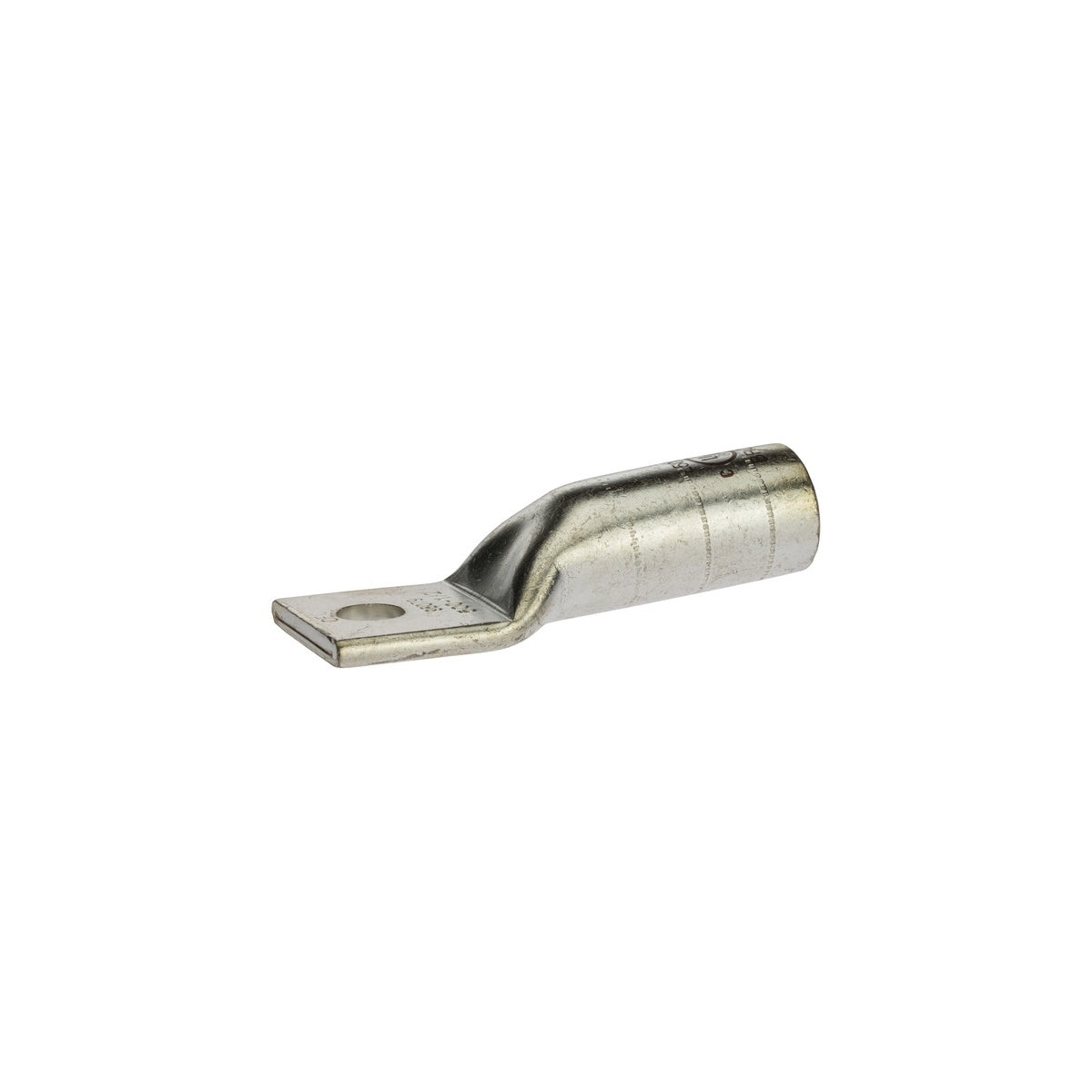

NSI L50048 CMP LUG CU LONG 500 MCM 1/2 BOLT SIZE Copper Compression Connector
This copper compression connector from NSI Industries is designed to terminate, splice, and tap power connectors for electrical distribution and wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable connections for 500 MCM stranded copper conductors. The connector is rated for operation in environments up to 90°C and is compatible with various compression tools for secure installation.
Specifications
- Material: Copper
- Color: Brown
- Cable Size: 500 MCM (STR)
- Mounting: 1/2 Mounting Hole
- Number of Holes: 1
- Dimensions (L x W x H): 4.134 in x 1.539 in x 1.063 in
- Product Weight: 3.0000 lbs
- Environmental Conditions: 90°C
- Manufacturer Part #: L50048
Features
- Tin plated copper construction
- UL listed for U.S. and Canada
- Rated for wire connectors up to 35kV max
- Class B/C compressed, concentric, and compact copper conductor only
- Expanded wire range when installed with dieless NSI compression tool (N12ID)
- Dimensions tolerance: +/- 0.06 in
