NSI L35048 CMP LUG CU LONG 350 MCM 1/2 BOLT SIZE Compression Connector

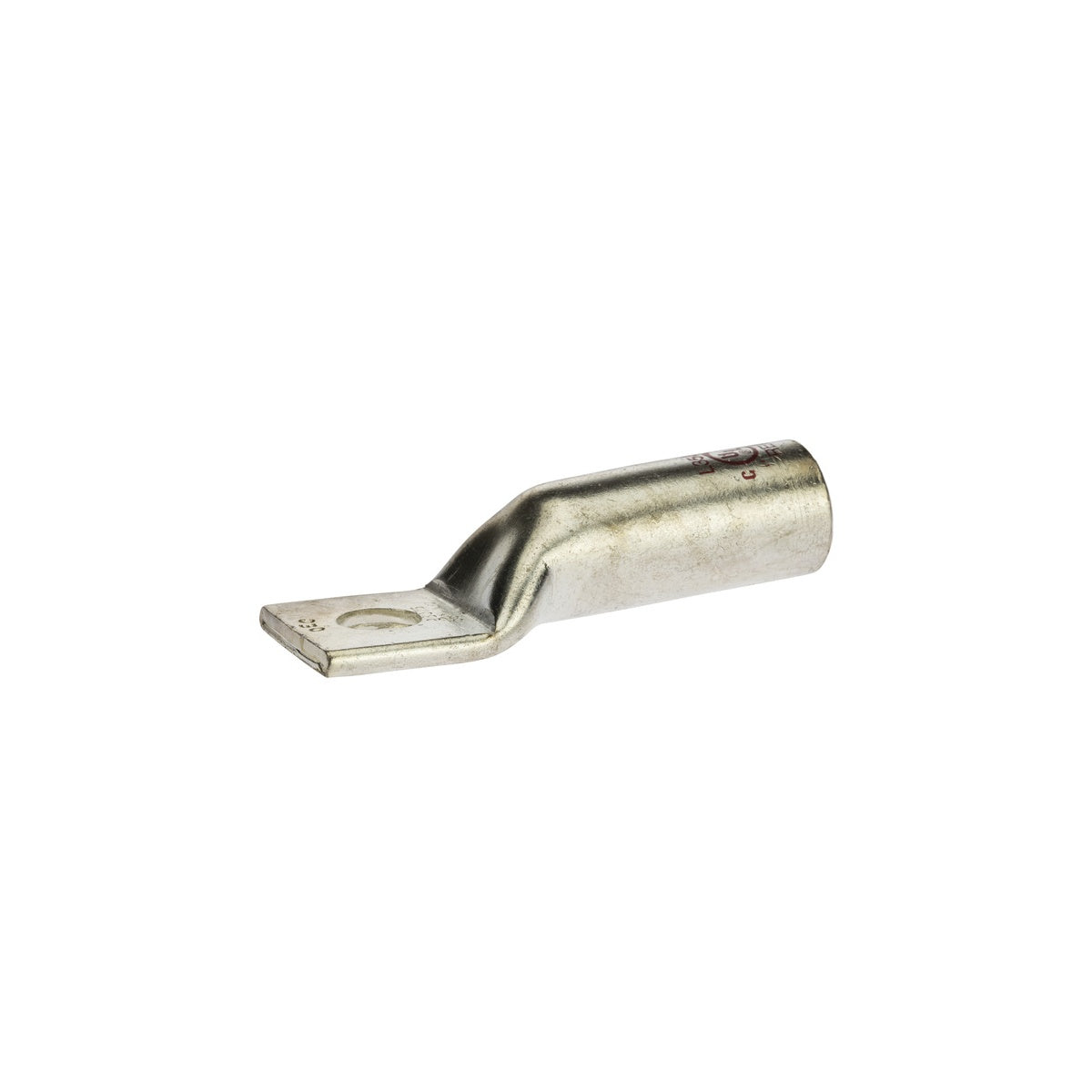

The NSI L35048 compression lug is a long barrel one-hole copper lug designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, this copper lug is suitable for use in lighting solutions and switchgear supplier environments requiring reliable electrical connections rated up to 600V and 90°C.

Specifications

• Application: Terminate, Splice, Tap Power Connectors
• Cable Size: 350 MCM (STR)
• Material: Copper
• Color: Red
• Mounting: 1/2 Mounting Hole
• Number of Holes: 1
• Product Weight: 3.12 lbs
• Width: 1.276 in
• Height: 0.874 in
• Length: 3.465 in
• Environmental Conditions: 90 °C
• Voltage Rating: 600V
• UL Listed: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG)

Features

• Constructed from high conductivity copper tubing for optimal electrical performance
• Tin-plated to provide corrosion resistance and low contact resistance
• Color-coded red and marked with die index for easy identification
• Listed for 35kV maximum voltage when installed properly per cable manufacturer instructions
• Part number L35048 does not include a sight inspection hole (peep hole)
