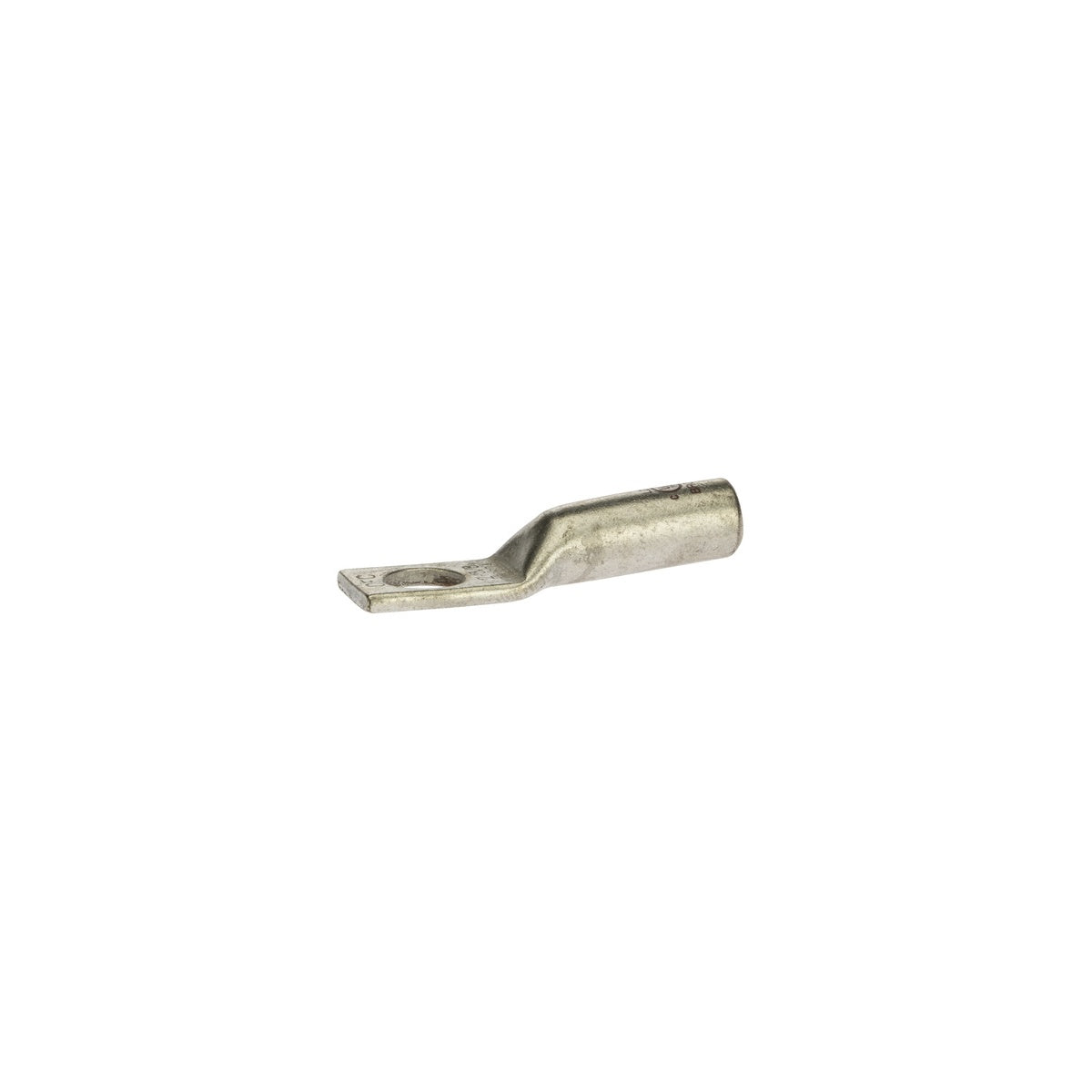

NSI L238 CMP LUG CU LONG 2 AWG 3/8 BOLT SIZE - Copper Compression Lug

The NSI L238 compression lug is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. Manufactured by NSI Industries, this copper lug supports #2 AWG stranded copper cable and is suitable for use in wire and cable installations requiring reliable electrical connections. It features a long barrel and a single 3/8-inch mounting hole for secure attachment, making it appropriate for use by electrical distributors and switchgear suppliers in systems rated up to 600V and 90°C.

Specifications

• Material: Copper
• Color: Brown
• Cable Size: #2 AWG (Stranded)
• Mounting: 3/8" Mounting Hole
• Number of Holes: 1
• Length: 2.071 in
• Width: 0.602 in
• Height: 0.421 in
• Product Weight: 2.25 oz
• Temperature Rating: 90¬∞C
• Voltage Rating: 600V
• Application: Terminate, Splice, Tap Power Connectors
• Manufacturer Part #: L238

Features

• Produced from high conductivity copper tubing for optimal electrical performance
• Tin-plated surface provides corrosion resistance and low contact resistance
• Marked with die index and color coded for easy identification
• UL486A Listed wire connector and UL467 grounding and bonding compliant (sizes 8 AWG - 3/0 AWG)
• Rated for up to 35KV when properly installed according to cable manufacturer instructions

Downloads & Links

• Spec Sheet
