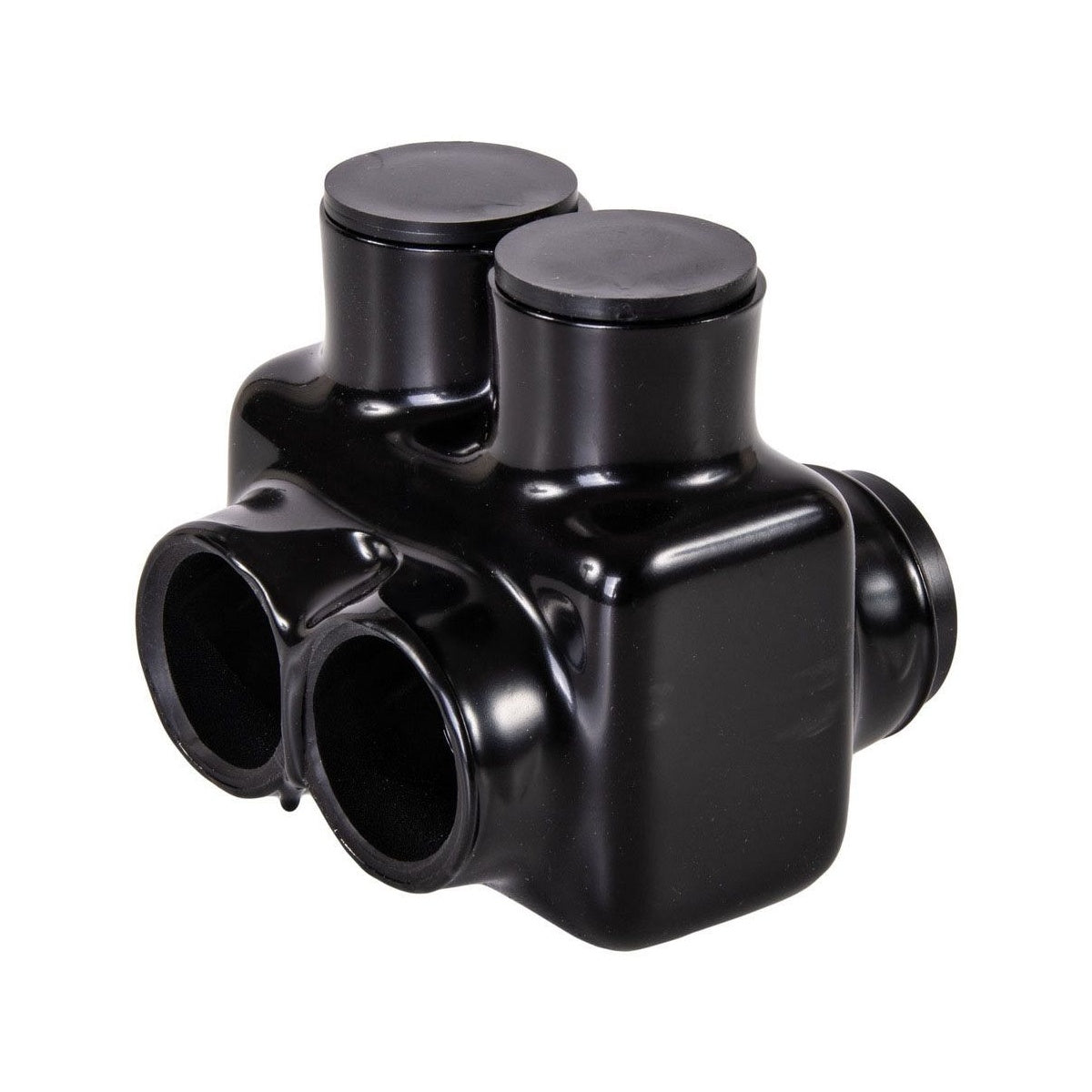

NSI IT-600B 600 MCM - 6 AWG Polaris Insulated Tap Connector (Dual Sided Entry)

The NSI IT-600B is a dual-sided entry, pre-insulated tap connector designed for reliable electrical connections in wire and cable installations. Manufactured by NSI Industries, this connector is suitable for use in various electrical distribution and switchgear applications, providing secure and corrosion-resistant connections compliant with UL standards. It is engineered for use with wire sizes ranging from 600 MCM to 6 AWG, making it a versatile solution for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer Part #: IT-600B
• Wire Range: 600 MCM - 6 AWG
• Entry Type: Dual Sided
• Length: 8.25 in
• Width: 5.55 in
• Height: 3.6 in
• Product Weight: 1.0600 lbs
• UPC: 662381970190
• Manufacturer: NSI Industries

Features

• Durable insulating layer protects from chemicals and abrasion
• Smooth exterior finish with ergonomic design for comfortable torque application
• Removable port plugs secure entry port closures and prevent debris intrusion
• Pre-filled with oxide inhibitor to prevent corrosion and maintain low contact resistance
• UL Listed for line side of service equipment, meeting NEC 230.46 code requirements
• Manufactured from 6061-T6 aluminum alloy for strength and durability
• Cold temperature rated to -45°C for reliable performance in harsh environments
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Parallel rated and UL listed for maximum ampacity configurations
