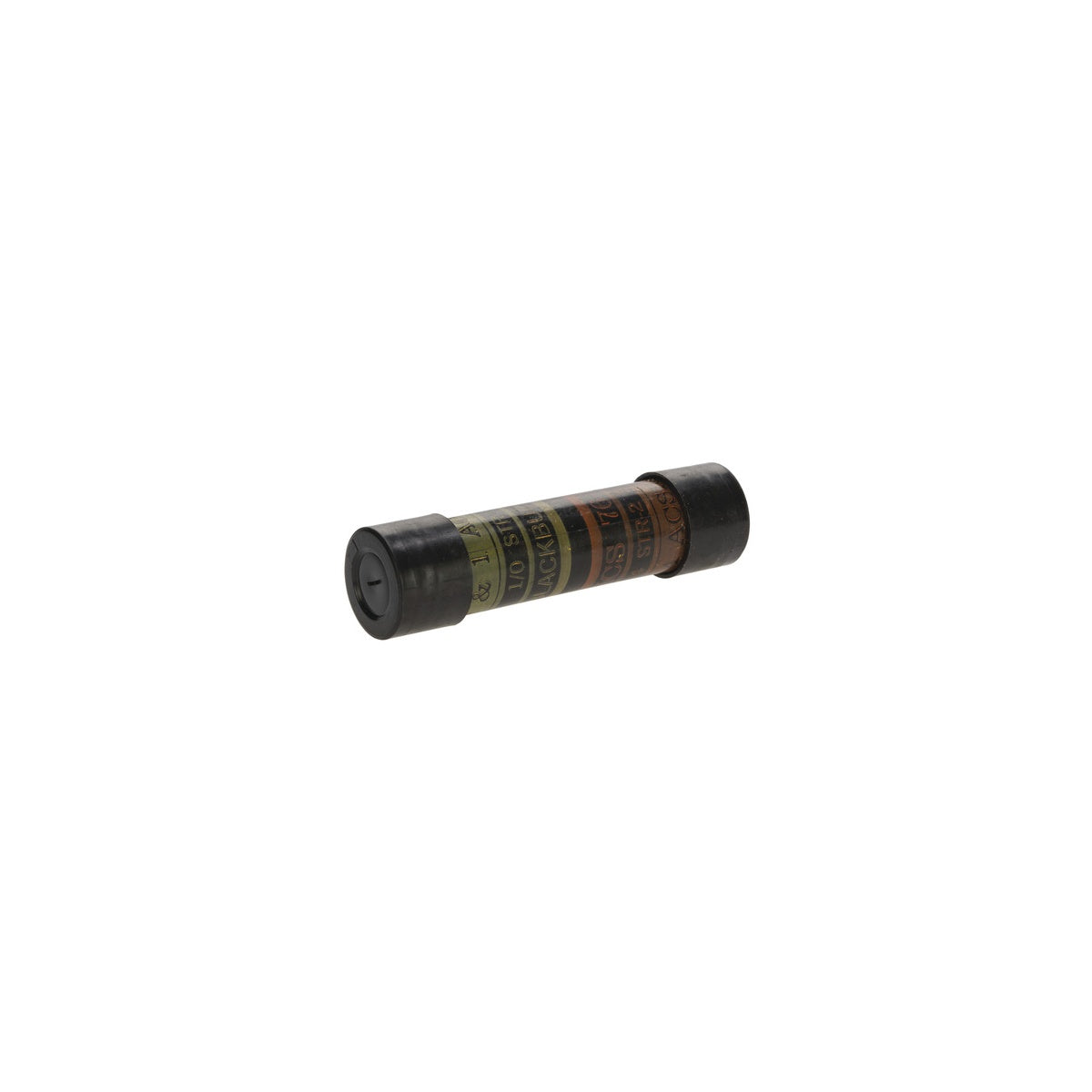

NSI ISE76 1/0 - 2 SOL INSULATED SERVICE ENTRY SLEEVES, COLOR CODE: YELLOW ( MAIN) - ORANGE (TAP)
SKU: #409596
Part: #ISE76
UPC: 662381028136
NSI ISE76 1/0 - 2 SOL INSULATED SERVICE ENTRY SLEEVES, COLOR CODE: YELLOW ( MAIN) - ORANGE (TAP)
SKU: #409596
Part: #ISE76
UPC: 662381028136
Total Price: $5.79 per each Sold in increments of 1 each
Description
NSI ISE76 1/0 - 2 SOL Insulated Service Entry Sleeves – Electrical Connectors
The NSI ISE76 insulated service entrance sleeves are designed for terminating, splicing, and tapping power connectors in electrical distribution systems. These dual-rated compression connectors are suitable for aluminum-aluminum and aluminum-copper conductor combinations, providing reliable insulation and mechanical protection. Ideal for electrical distributors and switchgear suppliers, they support safe and efficient wire and cable connections in service entrance applications.
Specifications
- Application: Terminate, Splice, Tap Power Connectors
- Material: Aluminum
- Insulation: Insulated
- Color: Yellow (Main) - Orange (Tap)
- Number of Wires: 2
- Length: 2.78 in
- Width: 0.64 in
- Height: 0.64 in
- Product Weight: 3.0000 lbs
- Environmental Conditions: 90°C
- Voltage Rating: 600V max
- Standards: Meets or exceeds ANSI C119.4
- Manufacturer Part #: ISE76
Features
- Pre-insulated service entrance compression sleeves for fast and easy installation with standard tools and dies
- Suitable for aluminum-aluminum and aluminum-copper conductor combinations
- Solid center barrier for enhanced electrical isolation
