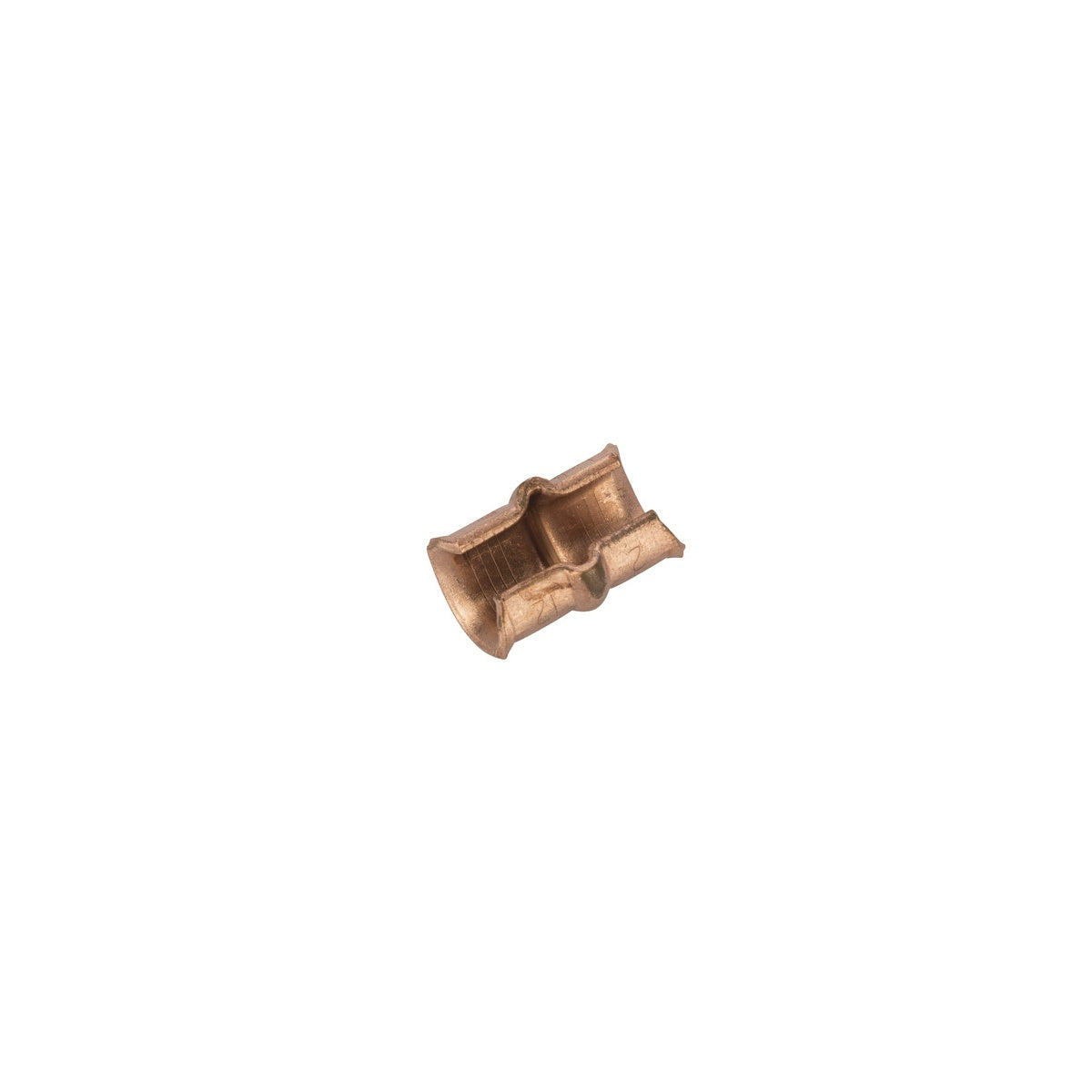

NSI CT-106 C TAP COPPER 3-4 MAIN Compression Connector

The NSI CT-106 C Tap Copper connector is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. Manufactured by NSI Industries, this copper compression connector is suitable for use in wire and cable applications requiring reliable grounding and bonding. It is ideal for electrical distributors and switchgear suppliers seeking compliant and durable connectors for 4 AWG conductors.

Specifications

• Manufacturer Part #: CT-106
• Material: Copper
• Finish: Copper
• Color: Pink
• Conductor Size: 4 AWG
• Dimensions (L x W x H): 1.171 in x 0.574 in x 0.629 in
• Product Weight: 4.1 oz
• Mechanical Durability: Single Use
• Environmental Conditions: Rated up to 90°C
• Application: Terminate, Splice, Tap Power Connectors

Features

• Ensures positive, all-around compression with low resistance and high pull-out values
• Made of high conductivity copper, meeting NEC250-81 and 250-91 grounding electrode system requirements
• UL486A Listed Wire Connector and UL467 Listed for Grounding & Bonding
• Rated for 600V electrical applications
• Designed for Class B or C building wire copper cable only
