Non-insulated; Tin Plated YA6CL2TC38
SKU: #332298
Part: #YA6CL2TC38
UPC: 781810018354
Non-insulated; Tin Plated YA6CL2TC38
SKU: #332298
Part: #YA6CL2TC38
UPC: 781810018354
Description

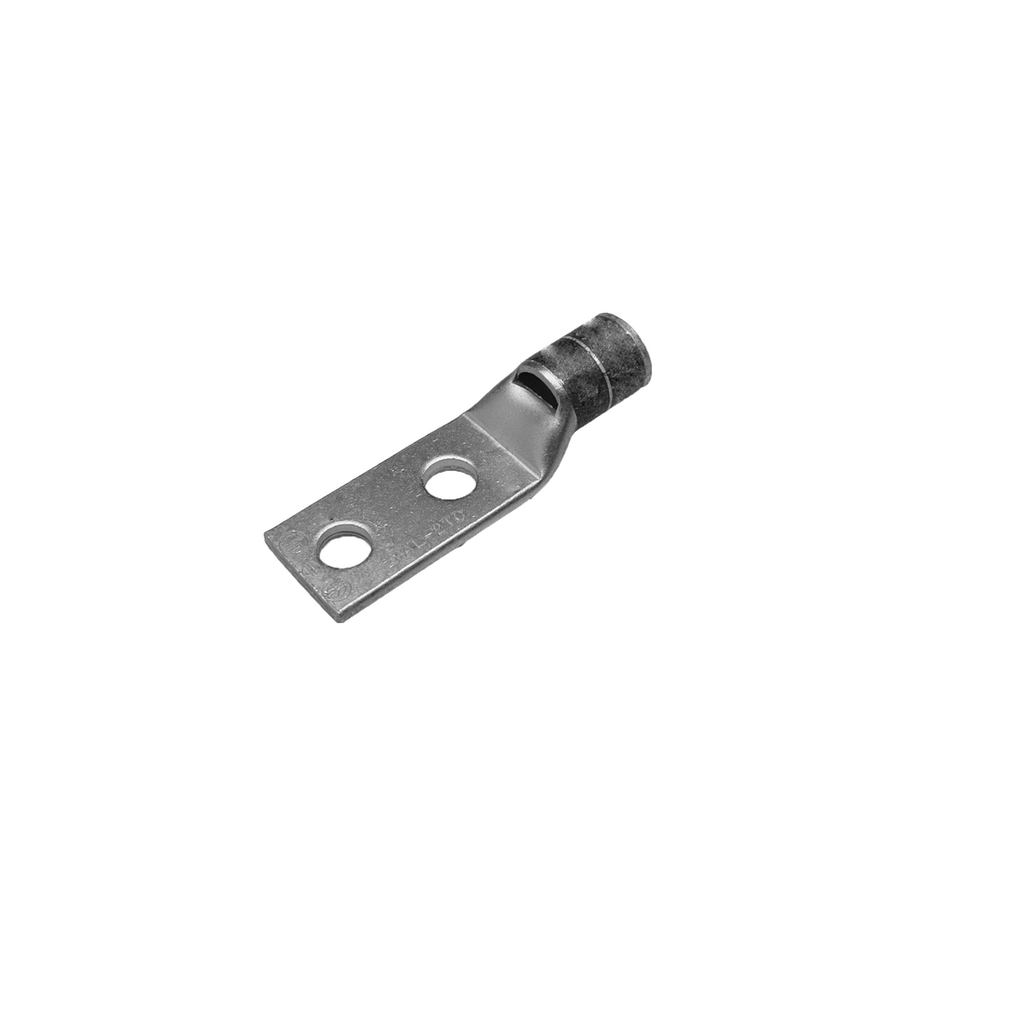

Non-insulated; Tin Plated YA6CL2TC38 Copper Compression Lug
This copper compression lug is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable connections. It accommodates a 6 AWG copper conductor and features a 3/8" stud size with two holes and an inspection window. The lug is tin electro-plated for corrosion resistance and supports a maximum voltage rating of 35,000 volts.
Specifications
- Material: Copper
- Conductor Material: Copper
- Conductor Size: 6 American Wire Gauge
- Connection Type: Terminal
- Hole Size: 10 millimeters
- Color Code: Blue
- Color Coding: Blue
- Max. Voltage: 35000 volts
- Product Weight: 0.0300 lbs
- Manufacturer: Burndy
- Manufacturer Part #: YA6CL2TC38
- Application: Wire Termination
- UPC: 781810018354
- CSA Certified: Yes
Features
- Two-hole design with inspection window for secure and verifiable connections
- Short barrel construction for compact installation
- Tin electro-plated finish for enhanced corrosion resistance
- Compatible with copper conductors for optimal conductivity
