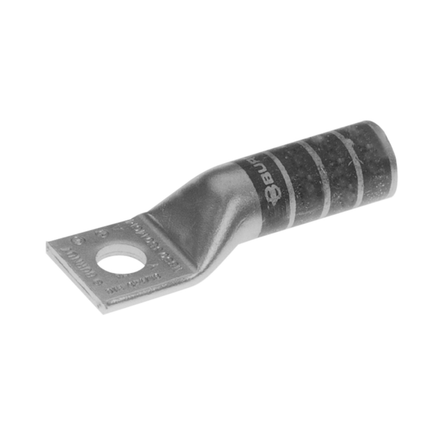

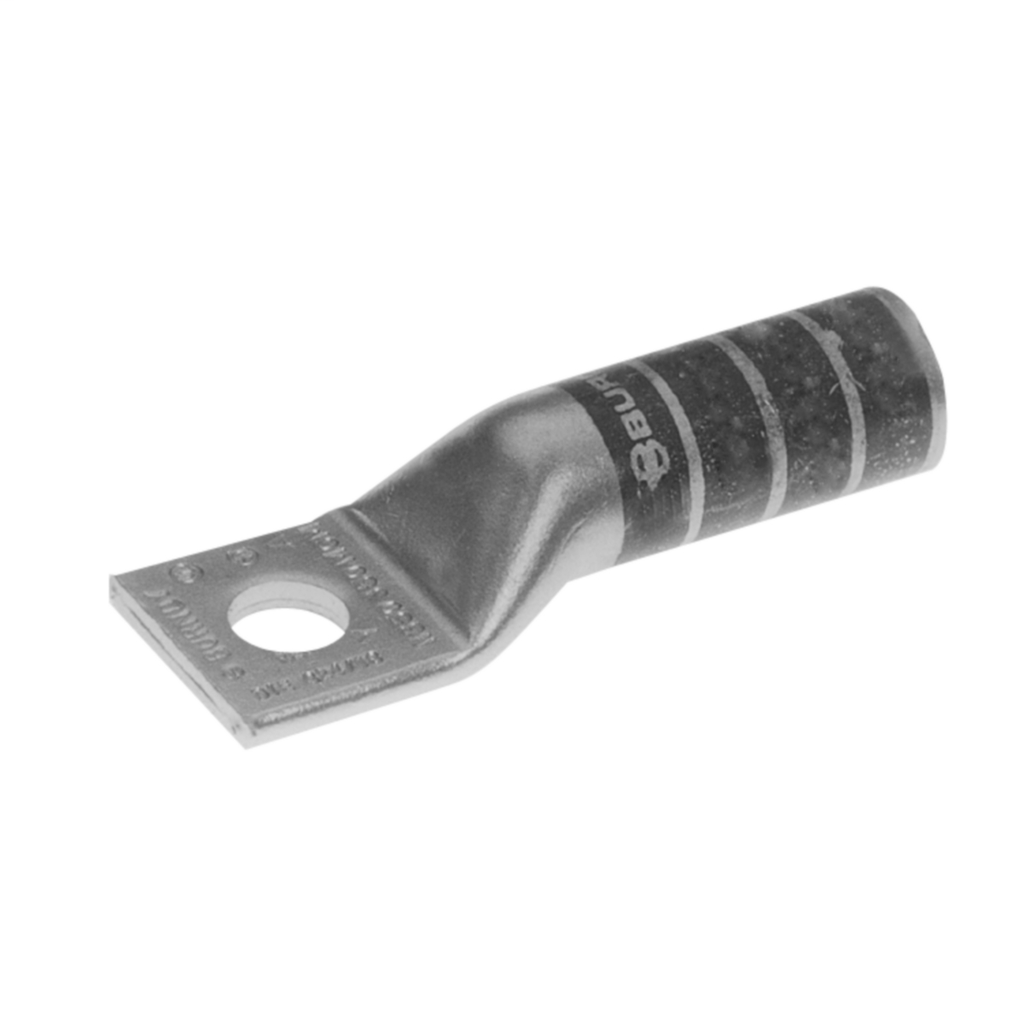

Non-insulated; Tin Plated YA4C Copper Compression Lug

This copper compression lug is designed for wire termination applications, suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring reliable conductor connections. It features a long barrel and a single hole without an inspection window, engineered to accommodate 4 AWG copper conductors with a 1/4" stud size. The electro-tin plating provides corrosion resistance and ensures consistent electrical conductivity.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 4 American Wire Gauge (AWG)
• Hole Size: 7 millimeters (0.27 inches)
• Stud Size: 1/4 inch
• Type: Long Barrel, Tin Plated
• Color Coding: Gray
• Connection Type: Terminal
• Maximum Voltage: 35,000 volts
• Temperature Rating: 90°C (194°F)
• UL Listed: Yes
• CSA Approved: Yes
• Industry Standards Met: UL468A-468B
• UPC: 781810501351
• Product Weight: 0.0200 lbs
• Dimensions: Length Overall - 1.87 in (47 mm), Pad Width - 0.50 in, Outside Diameter - 0.34 in, Strip Length - 1-3/16 in

Features

• Electro-tin plated finish for corrosion resistance
• Long barrel design with belled end for secure wire insertion
• Chamfered barrel style to facilitate wire entry
• Straight tongue angle with standard tongue width of 0.50 inches
• Compatible with a wide range of mechanical and hydraulic crimping tools
• Color-coded gray for easy identification
• Suitable for commercial stranded copper conductors
