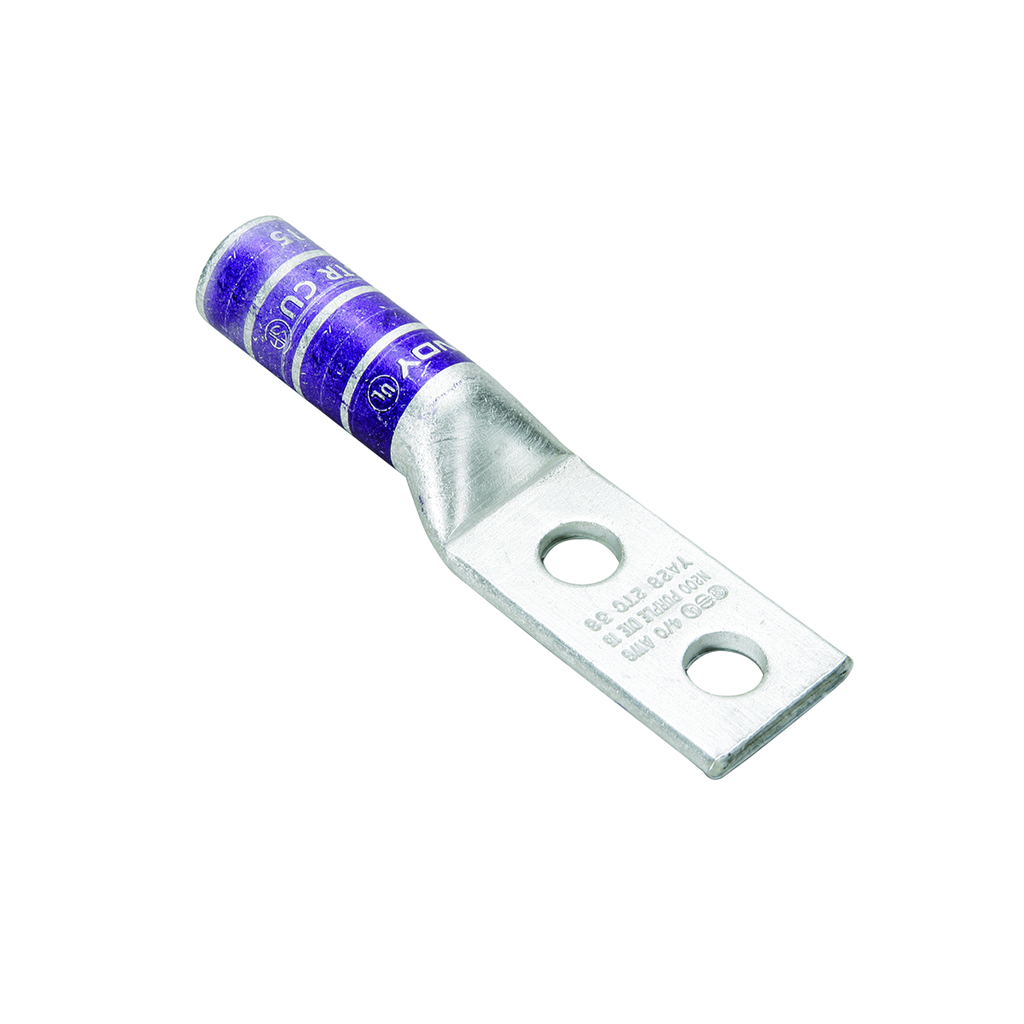

Non-insulated; Tin Plated YA392N Copper Compression Lug

This copper compression lug is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. It features a long barrel and tin plating for enhanced conductivity and corrosion resistance, making it appropriate for use in switchgear assemblies and other electrical distribution systems.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 750 thousand circular mils
• Hole Size: 14 millimeters
• Max. Voltage: 35000 volts
• Connection Type: Terminal
• Product Weight: 1.1430 lbs
• Color Coding: Black
• CSA Certified: Yes
• Manufacturer Part #: YA392N

Features

• Non-insulated design for direct copper conductor termination
• Tin plated finish for improved corrosion resistance
• Long barrel construction for secure wire insertion
• Two-hole configuration without inspection window for reliable mechanical connection

Downloads & Links

• Prop 65 Notice
• 50014349
• YA392N_MODEL-PDF
• Spec Sheet
• YA392N_MODEL-IGES
• YA392N_MODEL-STEP
