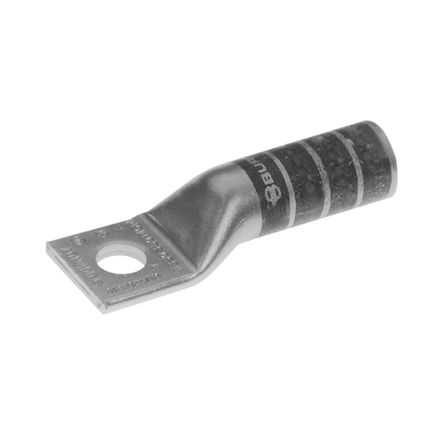

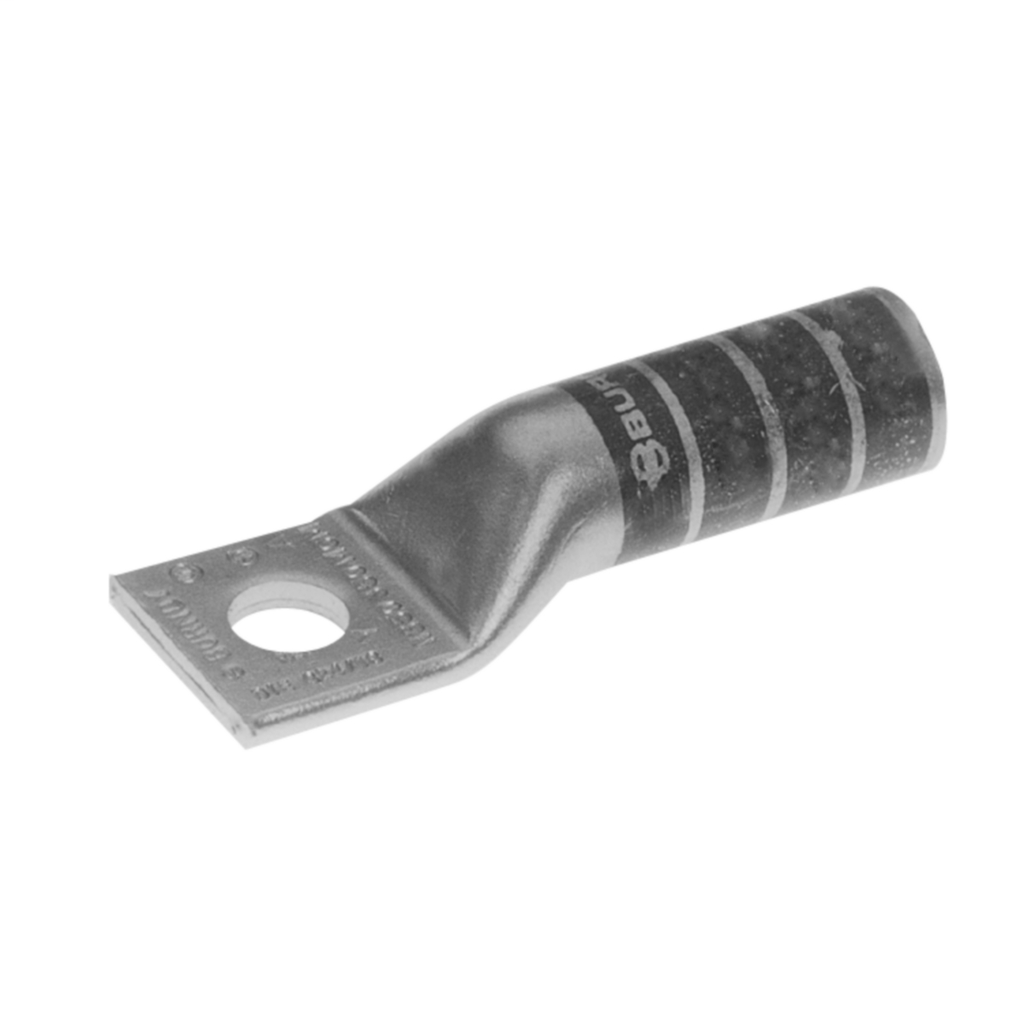

Non-insulated; Tin Plated YA34 Copper Compression Lug

This copper compression lug is designed for wire termination applications, providing reliable electrical connections in industrial and commercial settings. Suitable for use by electrical distributors and switchgear suppliers, this lug supports wire and cable systems requiring high conductivity and durability. The lug is electro tin plated for enhanced corrosion resistance and features a long barrel for secure conductor insertion.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 500 thousand circular mils
• Hole Size: 18 millimeters
• Max. Voltage: 35000 volts
• Connection Type: Terminal
• Product Weight: 0.4600 lbs
• Color Code: Brown
• Color Coding: Brown
• CSA Certified: Yes
• Manufacturer Part #: YA34

Features

• Non-insulated design for direct wire termination
• Electro tin plating to prevent corrosion
• Long barrel design for improved conductor retention
• Single hole without inspection window for secure mounting
