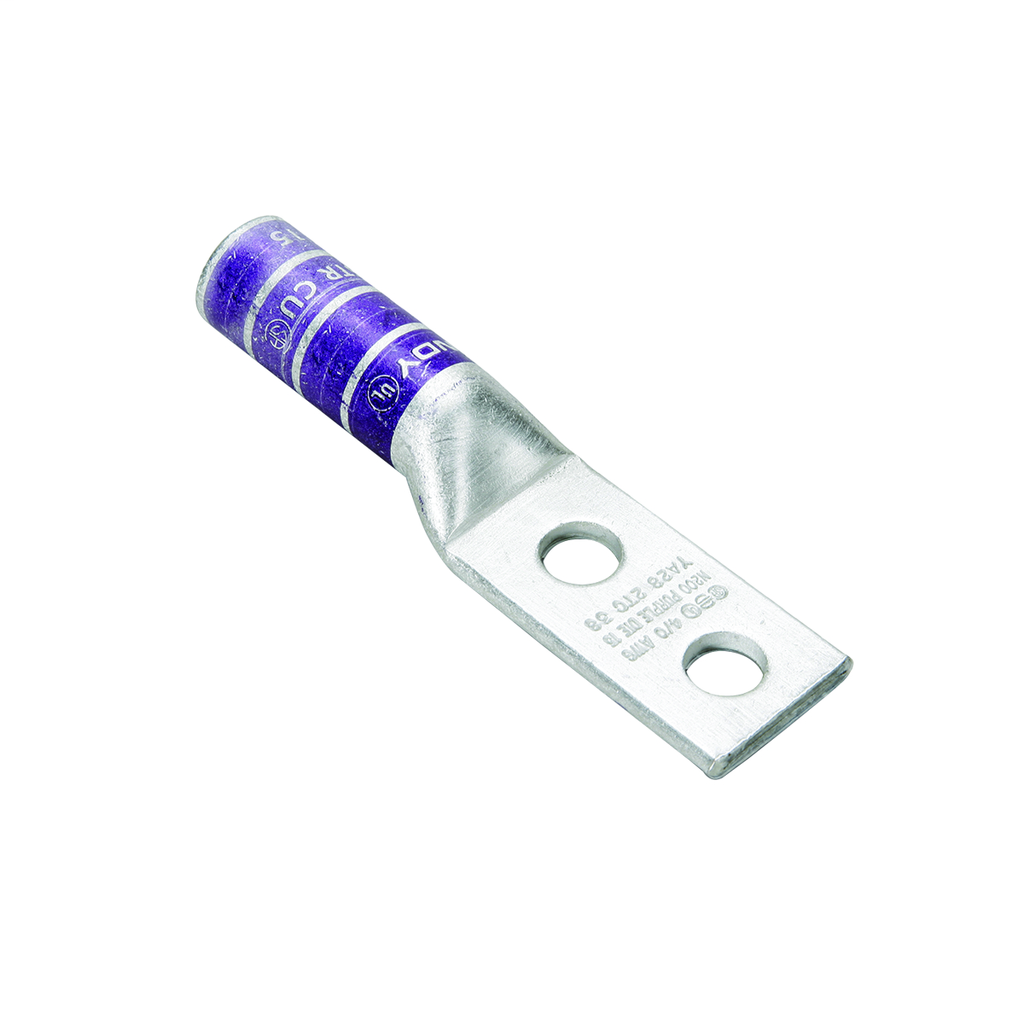

Specifications

General

• Application: For Code Conductor
• Color Code: Red
• Connector Type: Terminal
• Die Index: 18;324
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Material: Copper
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Long Barrel, Tin Plated
• UPC: 781810505205
• UPC 12 Digit: 7818105052055

Dimensions

• Dimension - B Length fraction: 2 in
• Dimension - B Length inch: 2.00 in
• Dimension - Bolt Hole Size inch: 0.52 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 144 mm
• Dimension - Length Overall inch: 5.69 in
• Dimension - N inch: 0.62 in
• Dimension - Outside Diameter inch: 0.88 in
• Dimension - Pad Width inch: 1.29 in
• Dimension - Strip Length inch: 2-1/16
• Dimension - Stud Size inch: 1/2
• Dimension - Z inch: 0.63 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - AL Str Size: 350 kcmil
• Conductor - Copper Str Size: 350 kcmil
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1
