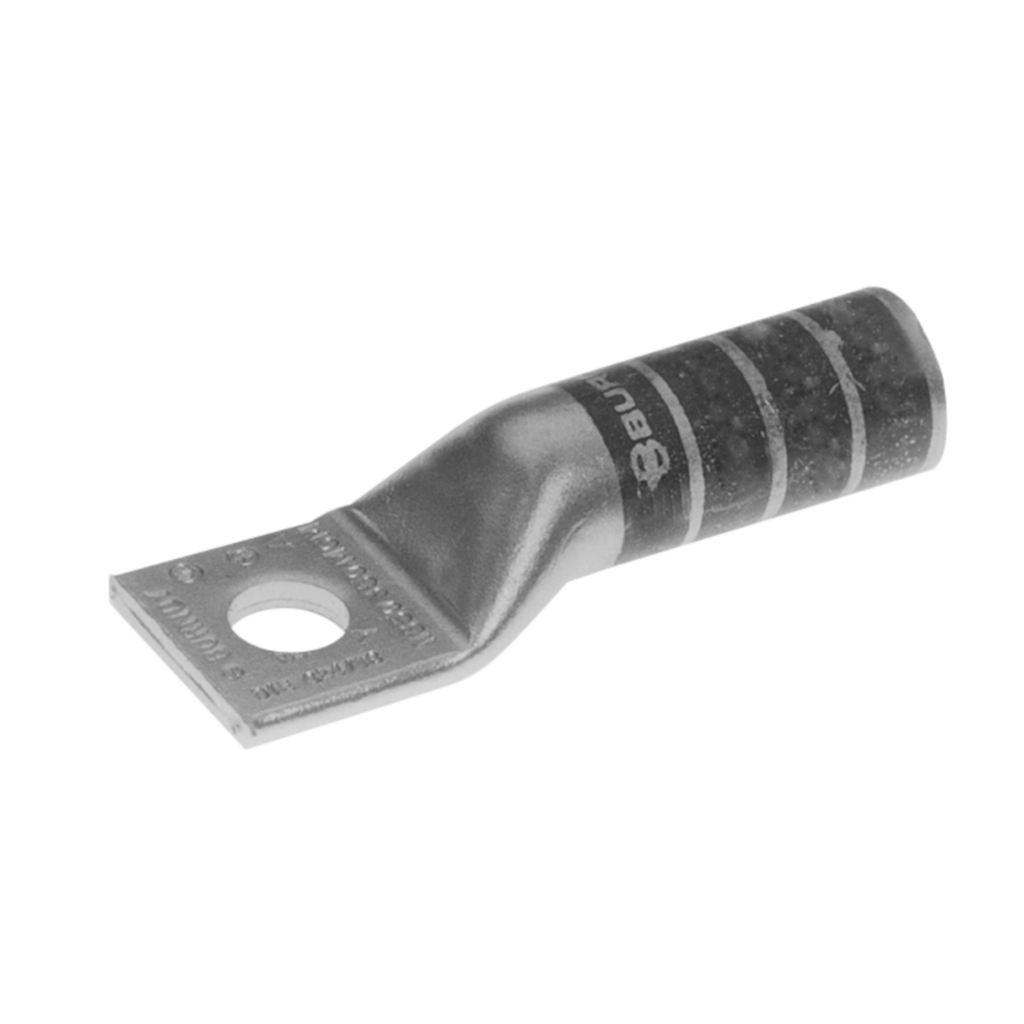

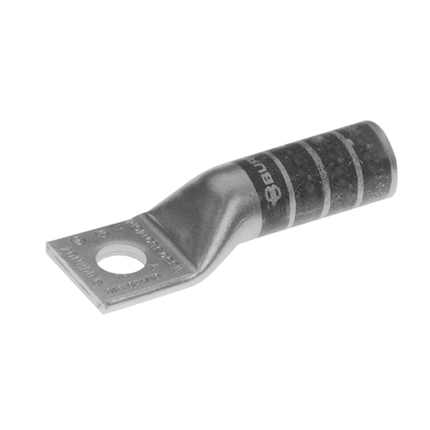

Non-insulated; Tin Plated YA30 Copper Compression Lug

This copper compression lug is designed for wire termination applications, providing a reliable connection solution for electrical distributors and switchgear suppliers. It supports heavy-duty wire and cable connections with a 300 kcmil conductor size and is suitable for use in lighting solutions and other electrical systems requiring secure terminal connections.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 300 thousand circular mils
• Hole Size: 13 millimeters
• Connection Type: Terminal
• Max. Voltage: 35000 volts
• Color Coding: White
• Product Weight: 0.2100 lbs
• CSA Certified: Yes
• Manufacturer Part #: YA30

Features

• Tin plated copper construction for corrosion resistance
• Non-insulated design with a long barrel for secure wire termination
• 1 hole terminal without inspection window
• Color-coded white for easy identification

Downloads & Links

• Prop 65 Notice
• YA30_MODEL-PDF
• Spec Sheet
• YA30_MODEL-STEP
• sd079849-05
