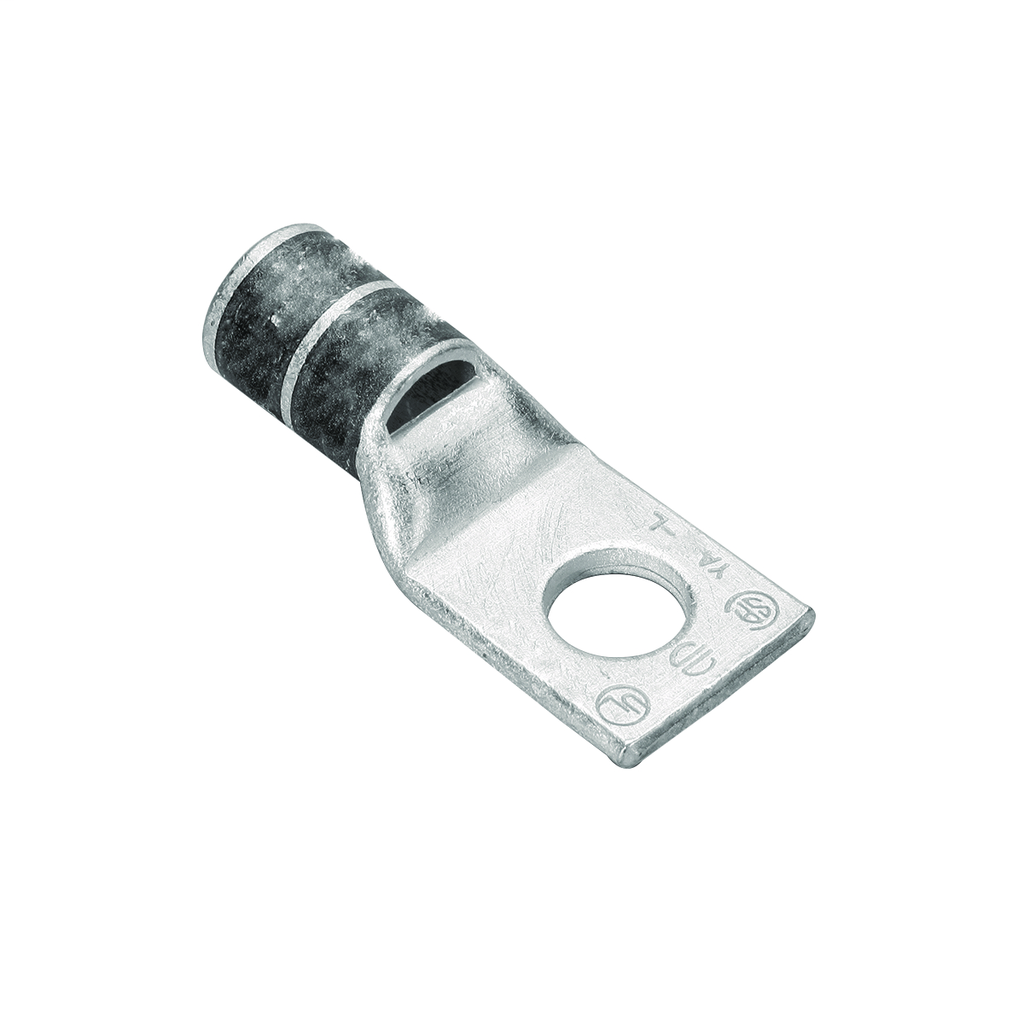

Non-insulated Tin Plated YA2CLBOX Copper Compression Lug

This copper compression lug is designed for wire termination applications, providing a reliable electrical connection for 2 AWG commercial stranded copper conductors. It features a 1-hole terminal with a 5/16" stud size and a short barrel construction. Suitable for electrical distributors and switchgear suppliers, this lug supports high-voltage applications with a maximum rating of 35,000 volts and is UL listed for safety and compliance.

Specifications

• Material: Copper
• Conductor Size: 2 American Wire Gauge (AWG)
• Conductor Material: Copper
• Connection Type: Terminal
• Hole Size: 8 millimeters (0.33 inches)
• Stud Size: 5/16 inch
• Temperature Rating: 90°C (194°F)
• Maximum Voltage: 35,000 volts
• Color Code: Brown
• Plating: Tin - Electro Plated
• Number of Holes: 1
• Tongue Angle: Straight
• Length Overall: 1.93 inches (49 mm)
• UL Listed: Yes
• CSA Approved: Yes

Features

• Chamfered and skived barrel style for improved conductor insertion and secure crimping
• Inspection window for verifying proper conductor insertion
• Short barrel design for compact installations
• Suitable for use with a variety of mechanical and hydraulic crimping tools
• RoHS compliant (CM status)
