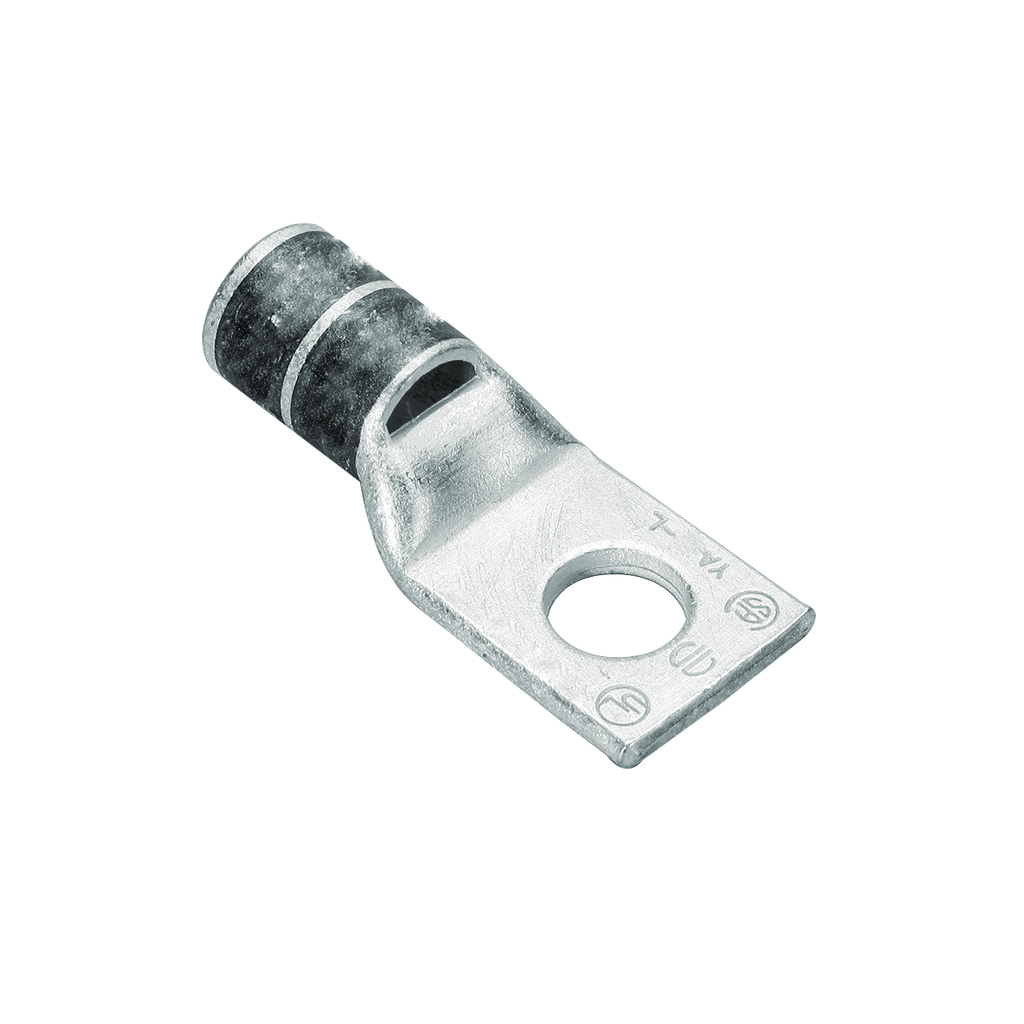

Non-insulated; Tin Plated YA2CL4BOX Copper Compression Lug

This copper compression lug is designed for wire termination applications, providing a reliable connection solution for electrical distributors and lighting solutions suppliers. It is suitable for use with 2 AWG copper conductor wire and features a single hole with an inspection window for secure terminal connections. The lug is tin plated, enhancing corrosion resistance and conductivity, making it ideal for wire and cable installations in switchgear and electrical distribution systems.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 2 American Wire Gauge (AWG)
• Hole Size: 10 millimeters
• Connection Type: Terminal
• Max. Voltage: 35000 volts
• Color Code: Brown
• Color Coding: Brown
• Product Weight: 0.0400 lbs
• CSA Certified: Yes
• Manufacturer: Burndy
• Manufacturer Part #: YA2CL4BOX

Features

• Non-insulated design for direct copper conductor termination
• Tin plated finish for enhanced corrosion resistance and conductivity
• Short barrel with inspection window for secure and verifiable connections
• Single-hole lug compatible with 3/8" stud size

Downloads & Links

• Prop 65 Notice
• YA2CL4BOX_MODEL-STEP
• YA2CL4BOX_MODEL-IGES
• SD..079848-01
• YA2CL4BOX_MODEL-PDF
• Spec Sheet
