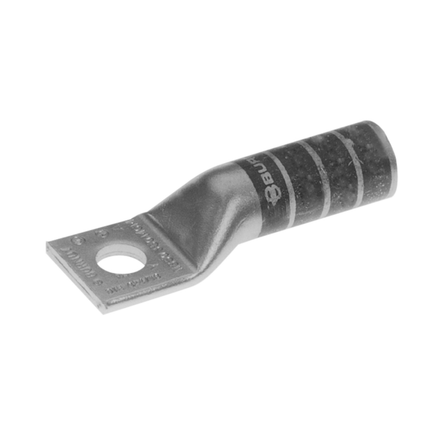

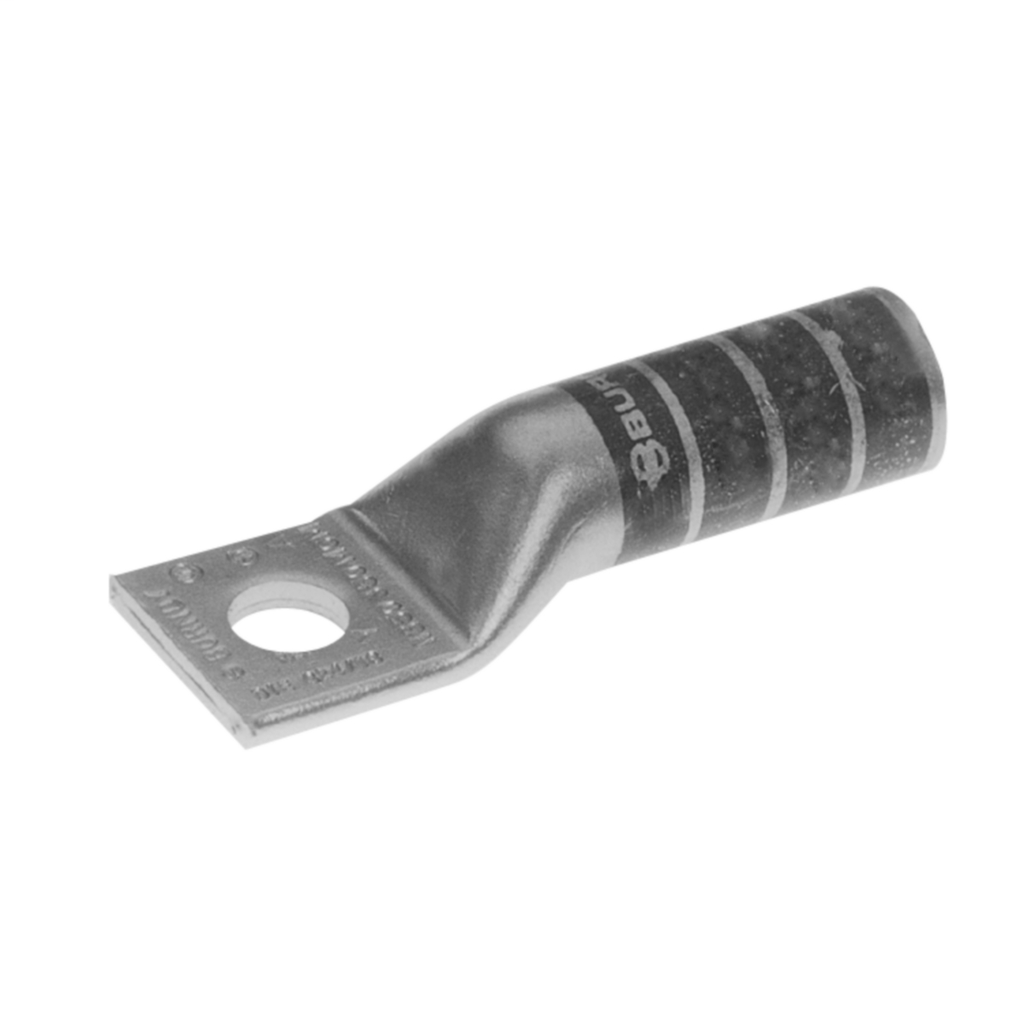

Non-insulated; Tin Plated YA29 Copper Compression Lug for Wire Termination

This copper compression lug is designed for wire termination applications, providing a reliable connection solution for electrical distributors and switchgear suppliers. It is suitable for use with copper conductors and offers a tin-plated finish to enhance corrosion resistance. The lug supports conductor sizes up to 250 kcmil and is rated for a maximum voltage of 35,000 volts, making it appropriate for various industrial and commercial electrical installations involving wire and cable connections.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 250 thousand circular mils
• Hole Size: 13 millimeters
• Max. Voltage: 35000 volts
• Product Weight: 0.1600 lbs
• Connection Type: Terminal
• Color Coding: Yellow
• CSA Certified: Yes
• Manufacturer Part #: YA29

Features

• Tin plated finish for enhanced corrosion resistance
• Long barrel design for secure wire termination
• Non-insulated construction suitable for compression applications
• Single-hole lug without inspection window
• Color coded yellow for easy identification
