Description

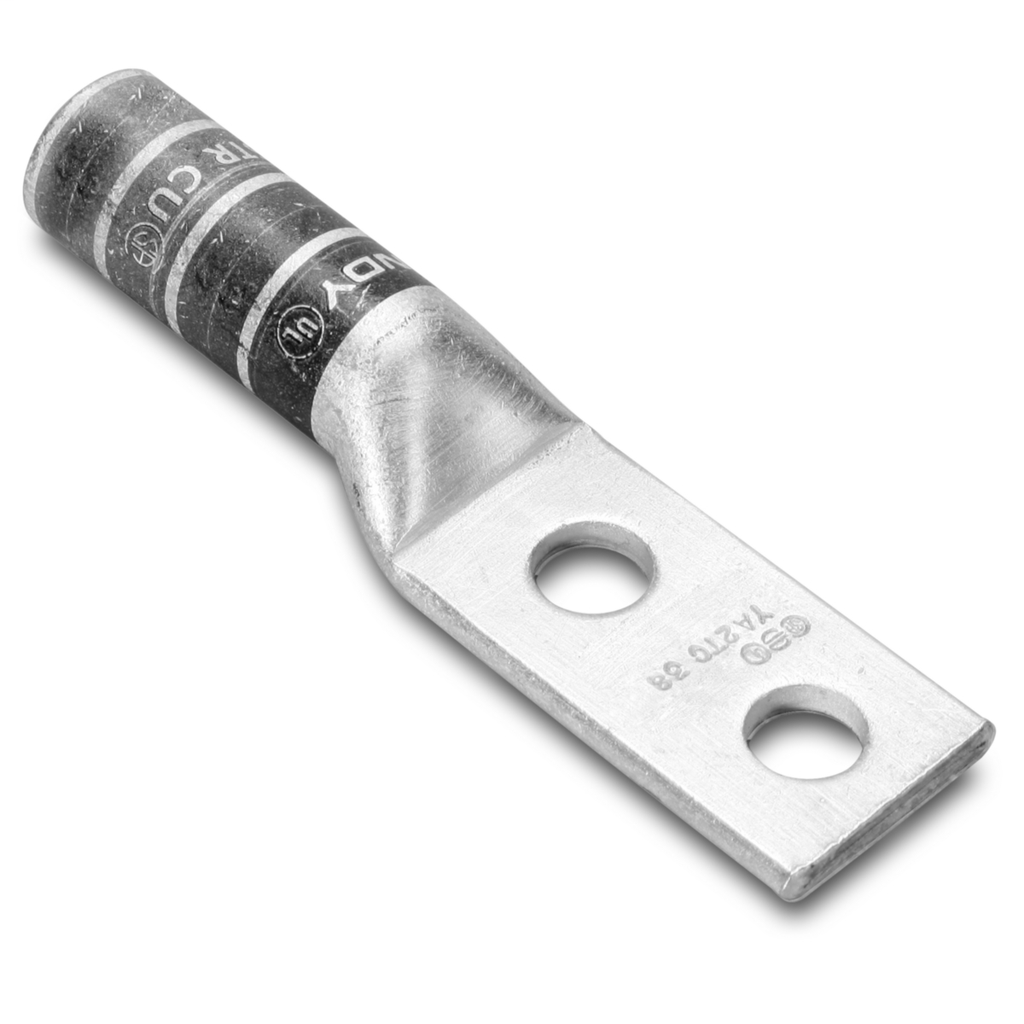

Non-insulated; Tin Plated YA262TC38 Copper Compression Terminal
This copper compression terminal is designed for wire termination applications, specifically for code conductors. It is suitable for electrical distributors and switchgear suppliers requiring reliable connections for wire and cable systems. The terminal features a long barrel with beveled entry and is tin electro-plated for corrosion resistance. It supports conductor sizes of 2/0 American Wire Gauge (AWG) and is rated for voltages up to 35,000 volts, making it applicable in high-voltage electrical and lighting solutions.
Specifications
- Application: Wire Termination for Code Conductor
- Material: Copper
- Plating Type: Tin - Electro Plated
- Color Code: Black
- Conductor Size: 2/0 AWG
- Conductor Material: Copper
- Number of Holes: 2
- Hole Size: 10 millimeters (0.40 inch)
- Stud Size: 3/8 inch
- Maximum Voltage: 35,000 volts
- Temperature Rating: 90°C
- UL Listed: Yes
- Dimensions (Length Overall): 3.78 inches (96 mm)
- Barrel Style: Chamfered
- Barrel Type: Long
- Tongue Type: Standard, Straight Angle
Features
- UL Listed for 600 V to 35 kV applications
- Tin electro-plated finish for enhanced corrosion resistance
- Beveled entry design facilitates easier conductor insertion
- Two-hole design without inspection window for secure mounting
- Compatible with a range of mechanical, hydraulic, and dieless crimping tools
- Suitable for commercial stranded copper conductors
- Wire strip length recommended at 1-9/16 inches
