Non-insulated; Tin Plated YA25LBOX
SKU: #332061
Part: #YA25LBOX
UPC: 781810553251
Non-insulated; Tin Plated YA25LBOX
SKU: #332061
Part: #YA25LBOX
UPC: 781810553251
Description

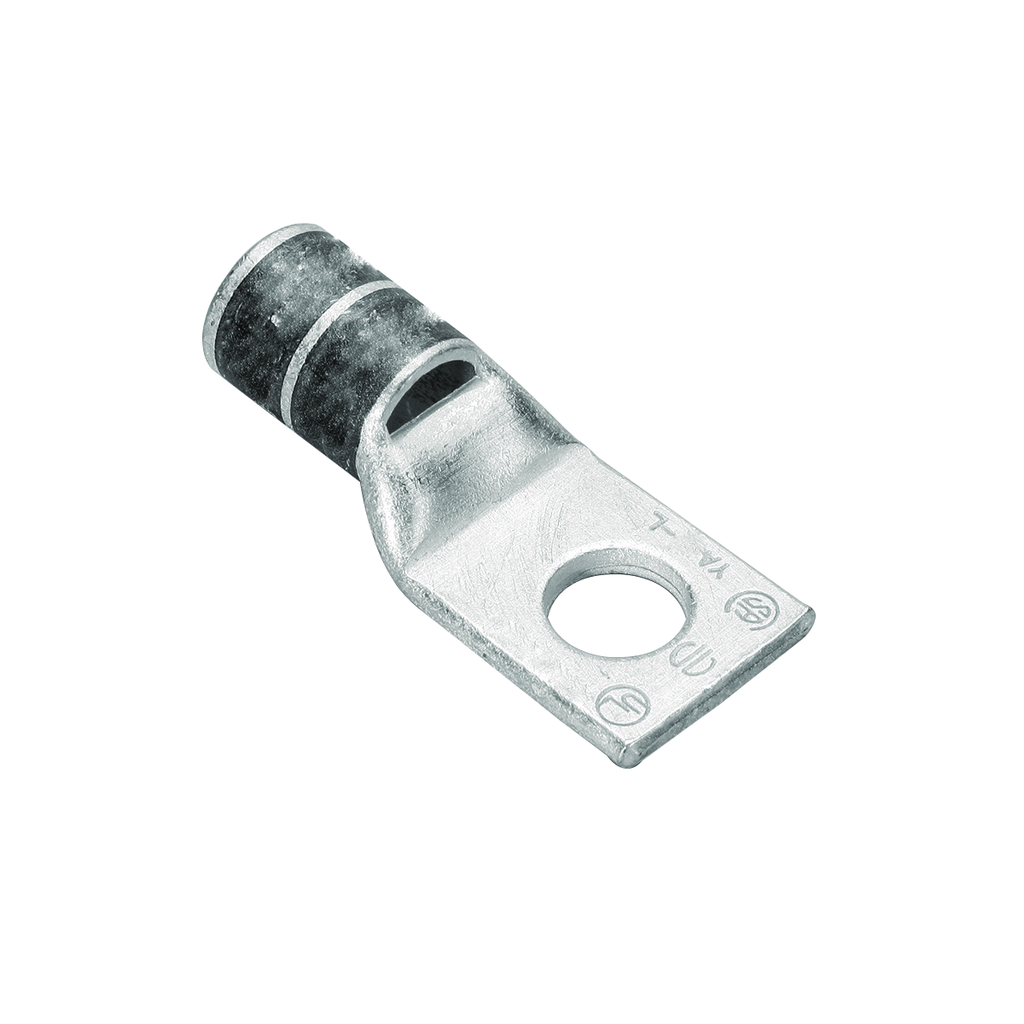

Non-insulated; Tin Plated YA25LBOX Copper Compression Terminal
This copper compression terminal is designed for use with code conductors, providing a reliable connection solution for electrical distributors and switchgear suppliers. It is suitable for wire and cable applications requiring a high-voltage rating and robust mechanical connection. The terminal features a beveled entry and an inspection window to ensure proper installation, supporting conductor sizes of 1/0 AWG and rated for voltages up to 35,000 volts.
Specifications
- Material: Copper
- Conductor Material: Copper
- Conductor Size: 1/0 American Wire Gauge
- Hole Size: 8 millimeters
- Max. Voltage: 35000 volts
- Connection Type: Terminal
- Product Weight: 0.0500 lbs
- Color Coding: Pink
- CSA Certified: Yes
- Manufacturer: Burndy
- Manufacturer Part #: YA25LBOX
Features
- Electro-tin plated finish for corrosion resistance
- Beveled entry design for easy conductor insertion
- Standard barrel with 1 hole and inspection window
- Rated for 600V to 35kV applications
- 5/16" stud size for secure mounting
- Non-insulated design suitable for high-performance electrical connections
