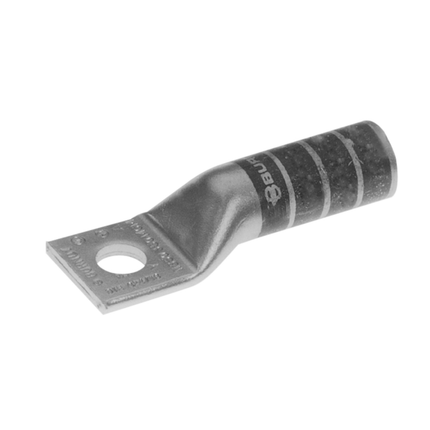

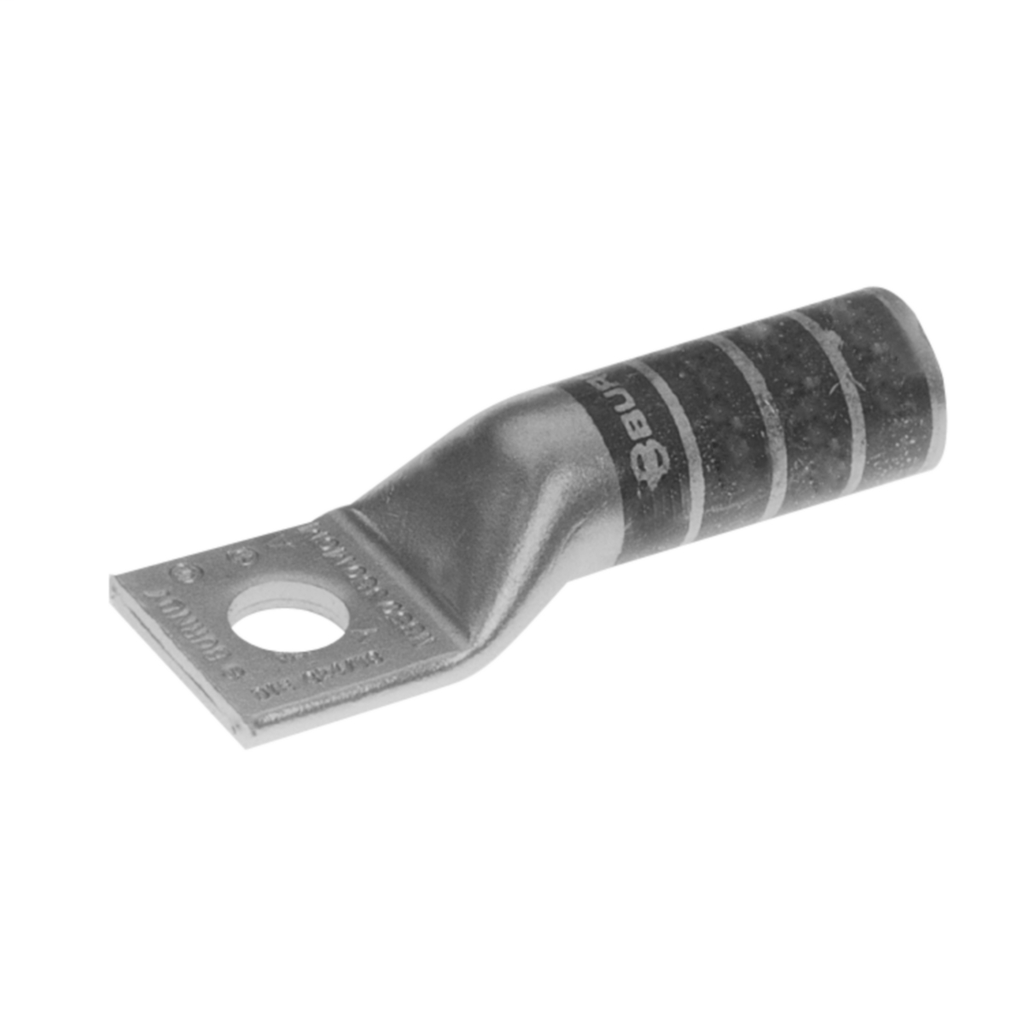

Non-insulated; Tin Plated YA1C Copper Compression Lug

This copper compression lug is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable conductor connections. It features a long barrel and is tin plated to enhance corrosion resistance, making it compatible with copper conductors in wire and cable installations.

Specifications

• Material: Copper
• Conductor Material: Copper
• Conductor Size: 1 American Wire Gauge (AWG)
• Hole Size: 8 millimeters
• Max. Voltage: 35000 volts
• Connection Type: Terminal
• Product Weight: 0.0500 lbs
• Color Coding: Green
• CSA Certified: Yes
• Manufacturer Part #: YA1C

Features

• Non-insulated design for direct compression termination
• Tin plated finish for improved corrosion resistance
• Long barrel construction to ensure secure conductor insertion
• Single hole without inspection window for straightforward installation

Downloads & Links

• SD079849
• Prop 65 Notice
• YA1C_MODEL-IGES
• YA1C_MODEL-PDF
• YA1C_MODEL-STEP
• Spec Sheet
