Non-Insulated Ring Terminals - 6awg Wire, 1/4" Stud | Electrical Wire Terminals

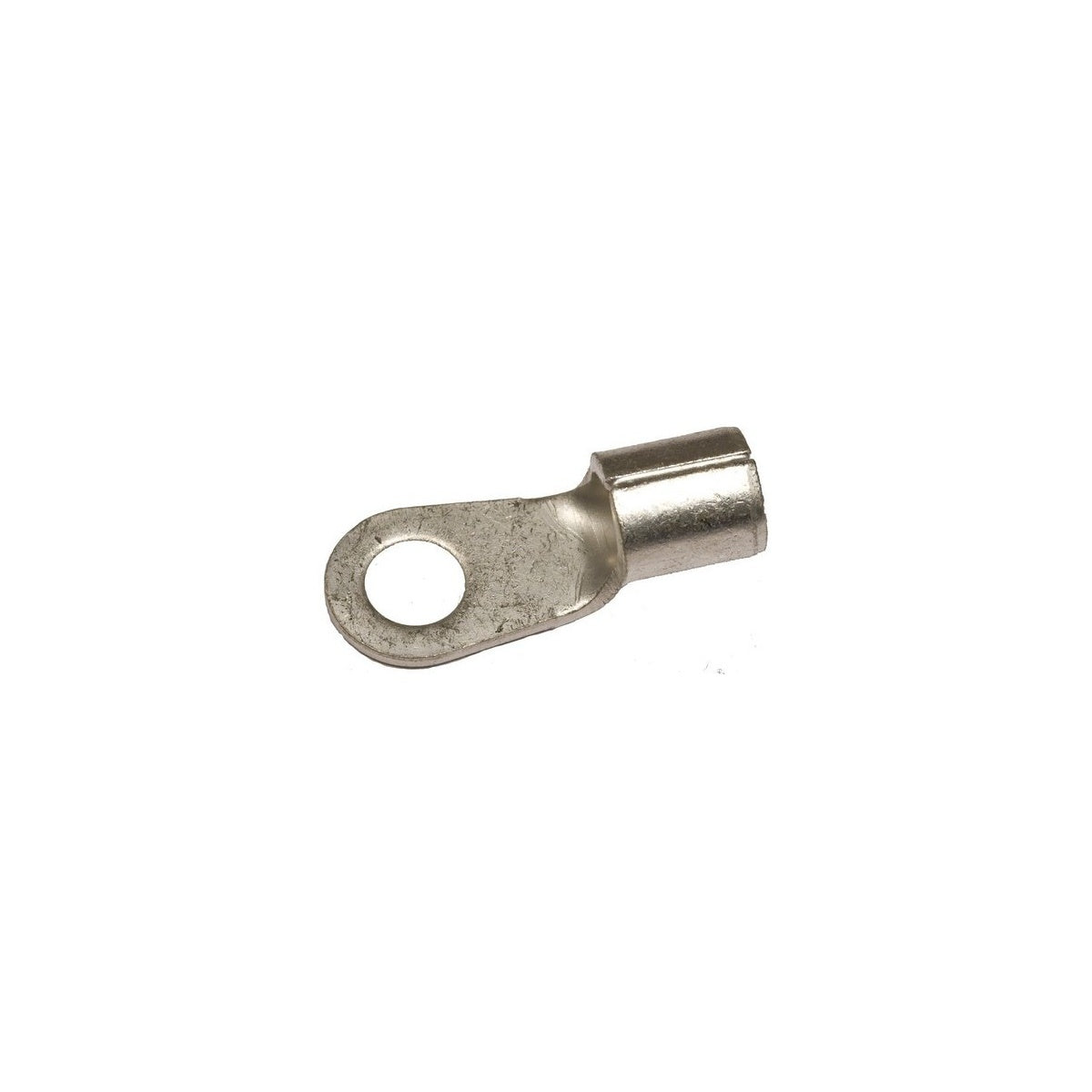

This non-insulated ring terminal is designed for secure electrical connections with 6 AWG wire and a 1/4" stud size. Manufactured from high-strength copper alloy and electro-tin plated for corrosion resistance, it is suitable for use in electrical distribution, lighting solutions, and wire and cable assemblies. The brazed seam construction prevents splitting under maximum pressure, ensuring reliable performance in various electrical applications.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 6 AWG
• Stud Size: 1/4 inch
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 95 Amps
• Length (L): 1.173 inches (29.8 mm)
• Width (W): 0.472 inches (12.0 mm)
• Diameter (D): 0.354 inches (9.0 mm)
• Diameter d1: 0.228 inches (5.8 mm)
• Diameter d2: 0.252 inches (6.4 mm)
• Dimension E: 0.413 inches (10.5 mm)
• Dimension F: 0.524 inches (13.3 mm)
• Thickness (T): 0.059 inches (1.5 mm)
• Certifications: UL, cUL, RoHS Compliant

Features

• Non-insulated design for direct wire connection
• High-strength copper alloy construction for durability
• Electro-tin plating enhances corrosion resistance
• Brazed seam prevents splitting under maximum pressure
• Wire range stamped on surface for easy identification
