Non-Insulated Ring Terminals - 4awg Wire, 3/8" Stud | Electrical Wire Terminals

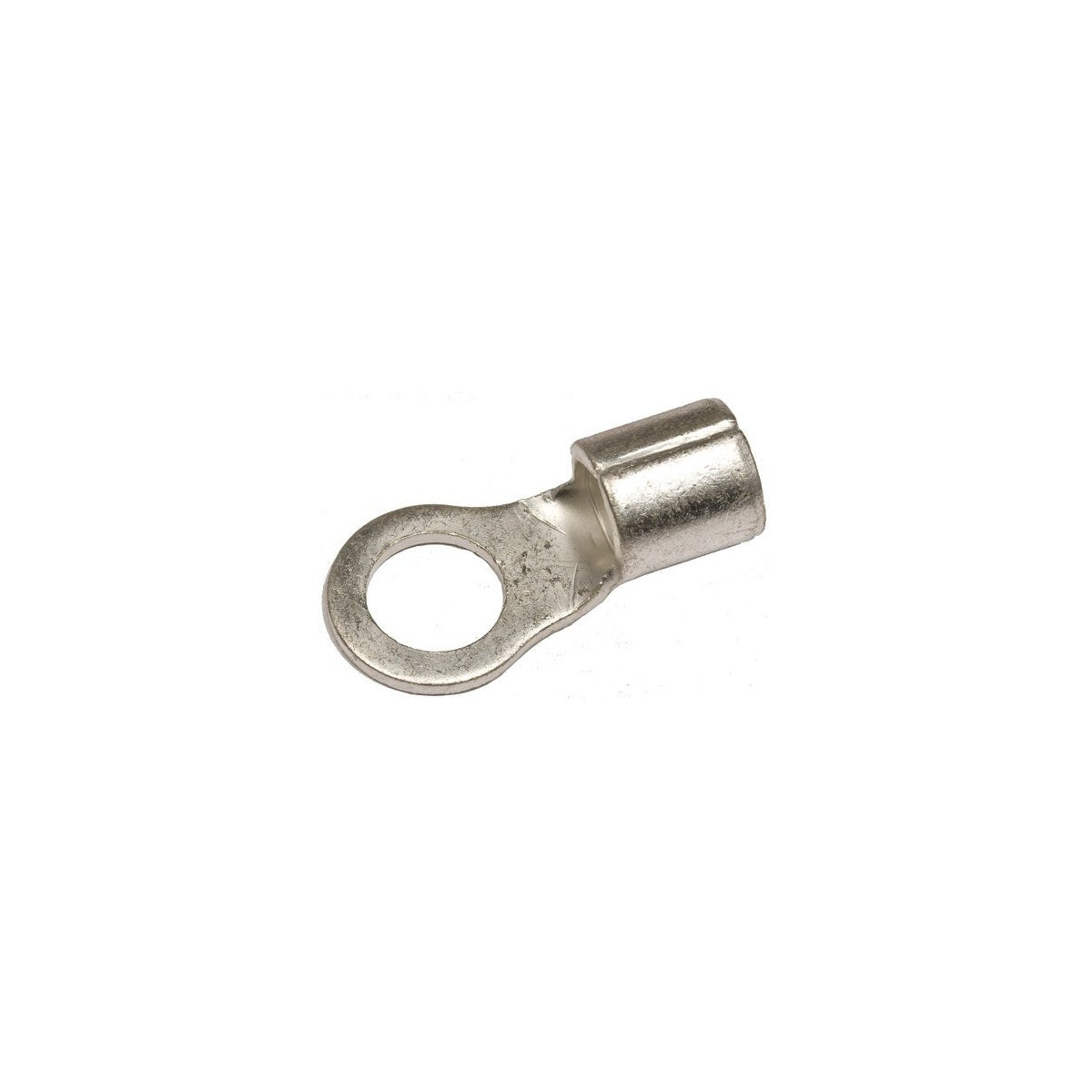

This non-insulated ring terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable copper terminals for 4 AWG wire with a 3/8" stud size. The terminal provides corrosion resistance and mechanical strength for demanding electrical environments.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 4 AWG
• Stud Size: 3/8"
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 125 Amps
• Length (L): 1.319 inches (33.5 mm)
• Width (W): 0.65 inches (16.5 mm)
• Depth (D): 0.453 inches (11.5 mm)
• Diameter d1: 0.303 inches (7.7 mm)
• Diameter d2: 0.413 inches (10.5 mm)
• Dimension E: 0.472 inches (12.0 mm)
• Dimension F: 0.531 inches (13.5 mm)
• Thickness (T): 0.067 inches (1.7 mm)
• Certifications: UL, cUL, RoHS compliant

Features

• Non-insulated design for direct wire connection
• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface enhances corrosion resistance
• Brazed seam construction prevents splitting under maximum pressure
• Wire range clearly stamped on surface for easy identification
