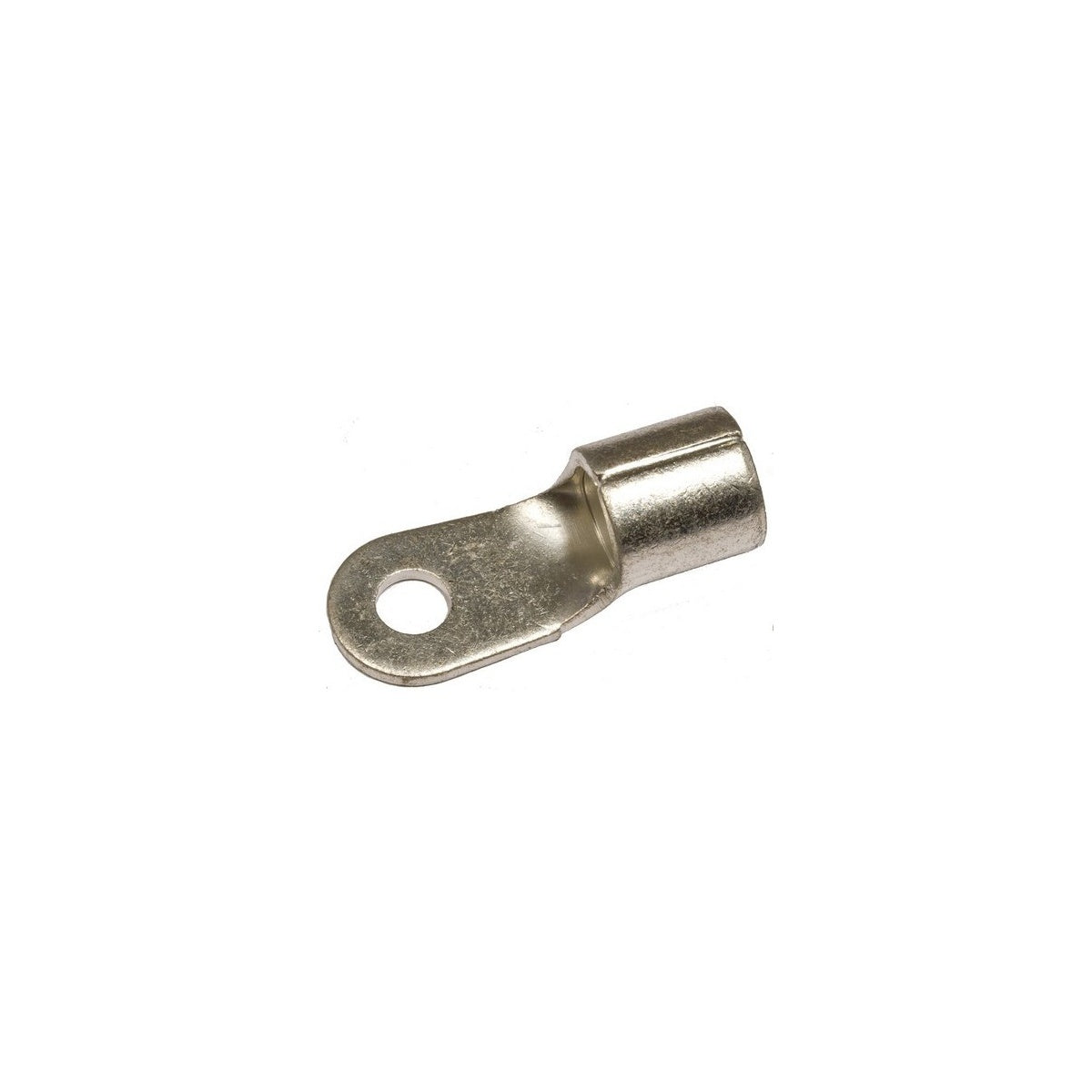

Non-Insulated Ring Terminals - 2awg Wire, 3/8" Stud | Copper Electrical Connectors

This non-insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy and electro-tin plated for corrosion resistance, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable terminal solutions for 2 AWG wire with a 3/8" stud size.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 2 AWG
• Stud Size: 3/8"
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Current Rating: 170 Amps
• Length (L): 1.535 inches (39.0 mm)
• Width (W): 0.602 inches (15.3 mm)
• Depth (D): 0.524 inches (13.3 mm)
• Diameter d1: 0.37 inches (9.4 mm)
• Diameter d2: 0.413 inches (10.5 mm)
• Dimension E: 0.551 inches (14.0 mm)
• Dimension F: 0.685 inches (17.4 mm)
• Thickness (T): 0.071 inches (1.80 mm)
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Non-insulated design for direct wire termination
• High-strength copper alloy construction for durability
• Electro-tin plated surface provides corrosion resistance
• Brazed seam prevents splitting under maximum pressure
• Wire range clearly stamped on surface for easy identification
