Morris Products
Non-Insulated Ring Terminals - 2awg Wire, 1/4" Stud
SKU: #271892
Part: #11120
UPC: 601986111201
Morris Products
Non-Insulated Ring Terminals - 2awg Wire, 1/4" Stud
SKU: #271892
Part: #11120
UPC: 601986111201
Description

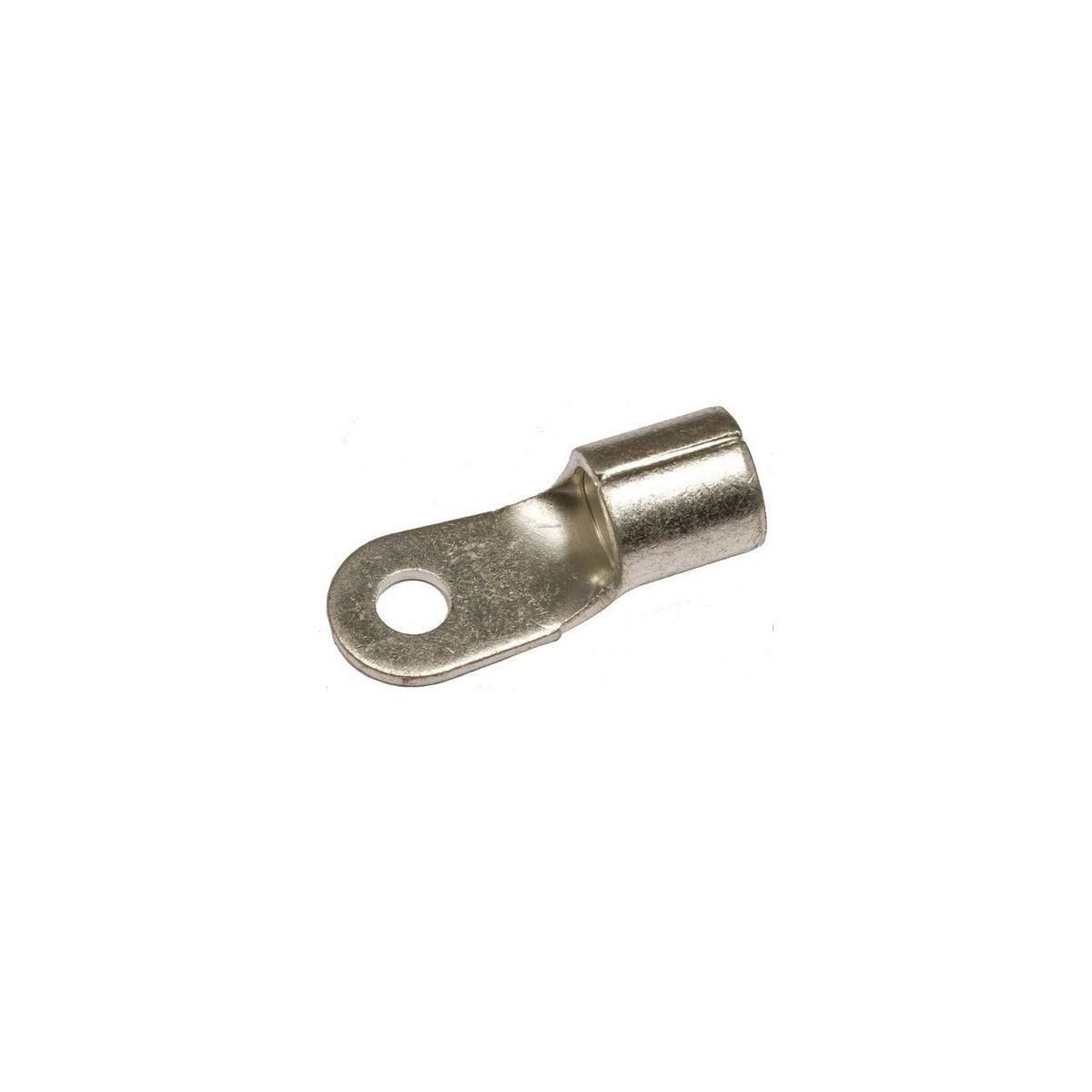

Non-Insulated Ring Terminals - 2awg Wire, 1/4" Stud
This non-insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring reliable copper terminals for 2 AWG wire with a 1/4" stud size. The terminal is electro-tin plated for corrosion resistance and rated for up to 600 V and 170 amps, making it appropriate for various lighting solutions and electrical distribution systems.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 2 AWG
- Stud Size: 1/4"
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 170 Amps
- Length (L): 1.535 inches (39.0 mm)
- Width (W): 0.602 inches (15.3 mm)
- Depth (D): 0.524 inches (13.3 mm)
Features
- Non-insulated design
- Manufactured from high-strength copper alloy
- Electro-tin plating for enhanced corrosion resistance
- Brazed seam construction prevents splitting under maximum pressure
- Wire range stamped on surface for easy identification
