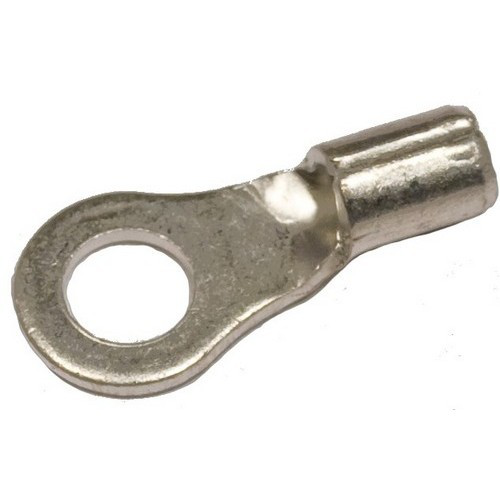

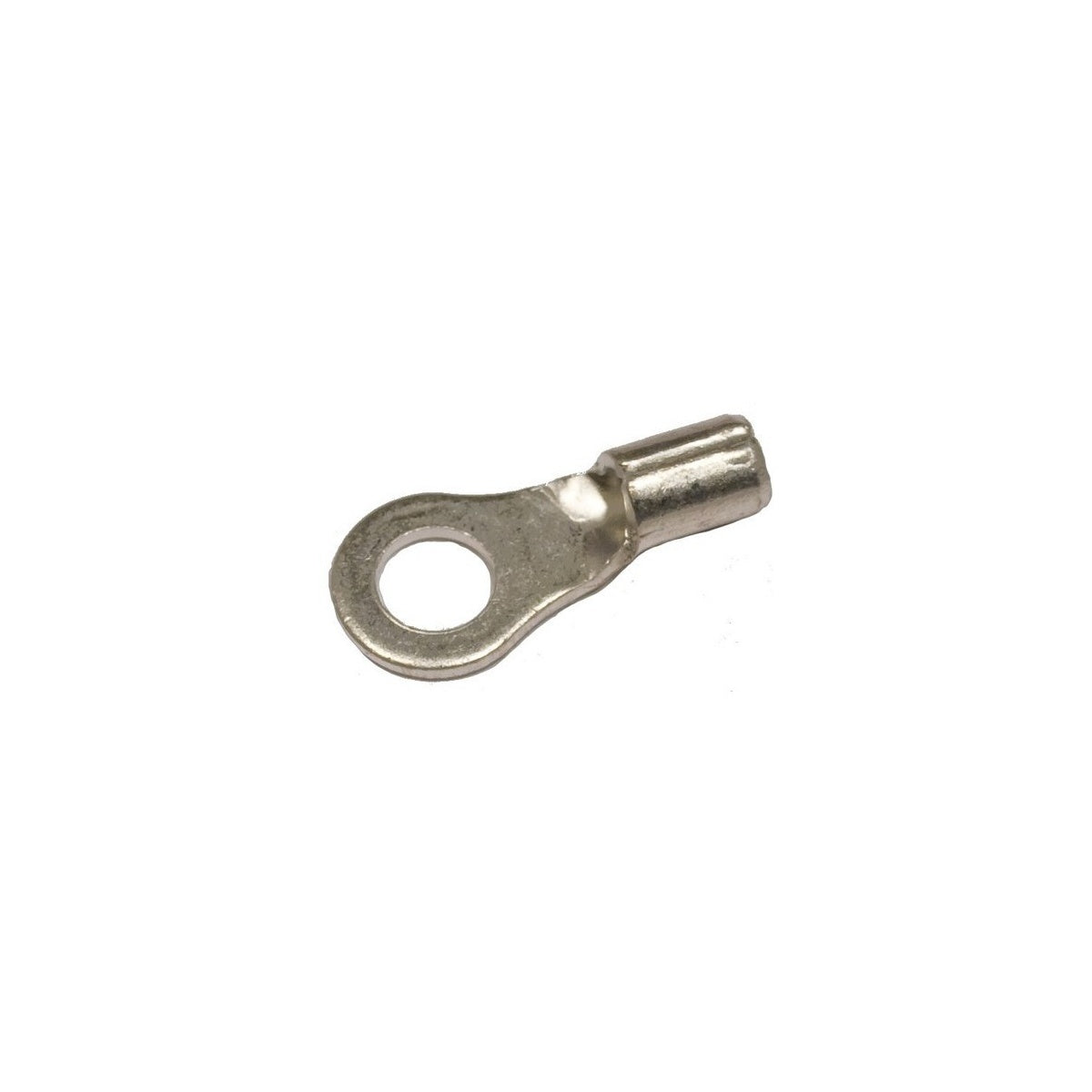

Non-Insulated Ring Terminals - 22-16 Wire, #6 Stud for Electrical Connections

This non-insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant terminals for 22-16 AWG wire sizes and #6 stud connections.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 22-16 AWG
• Stud Size: #6
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Length (L): 0.567 inches
• Width (W): 0.26 inches
• Depth (D): 0.134 inches
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Non-insulated design for direct wire termination
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Brazed seam construction prevents splitting under maximum pressure
• Wire range clearly stamped on surface for easy identification
