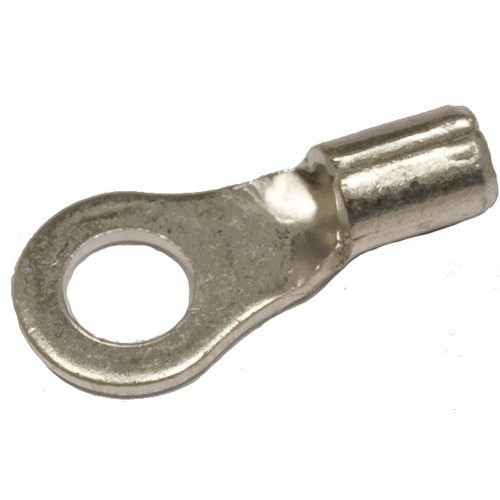

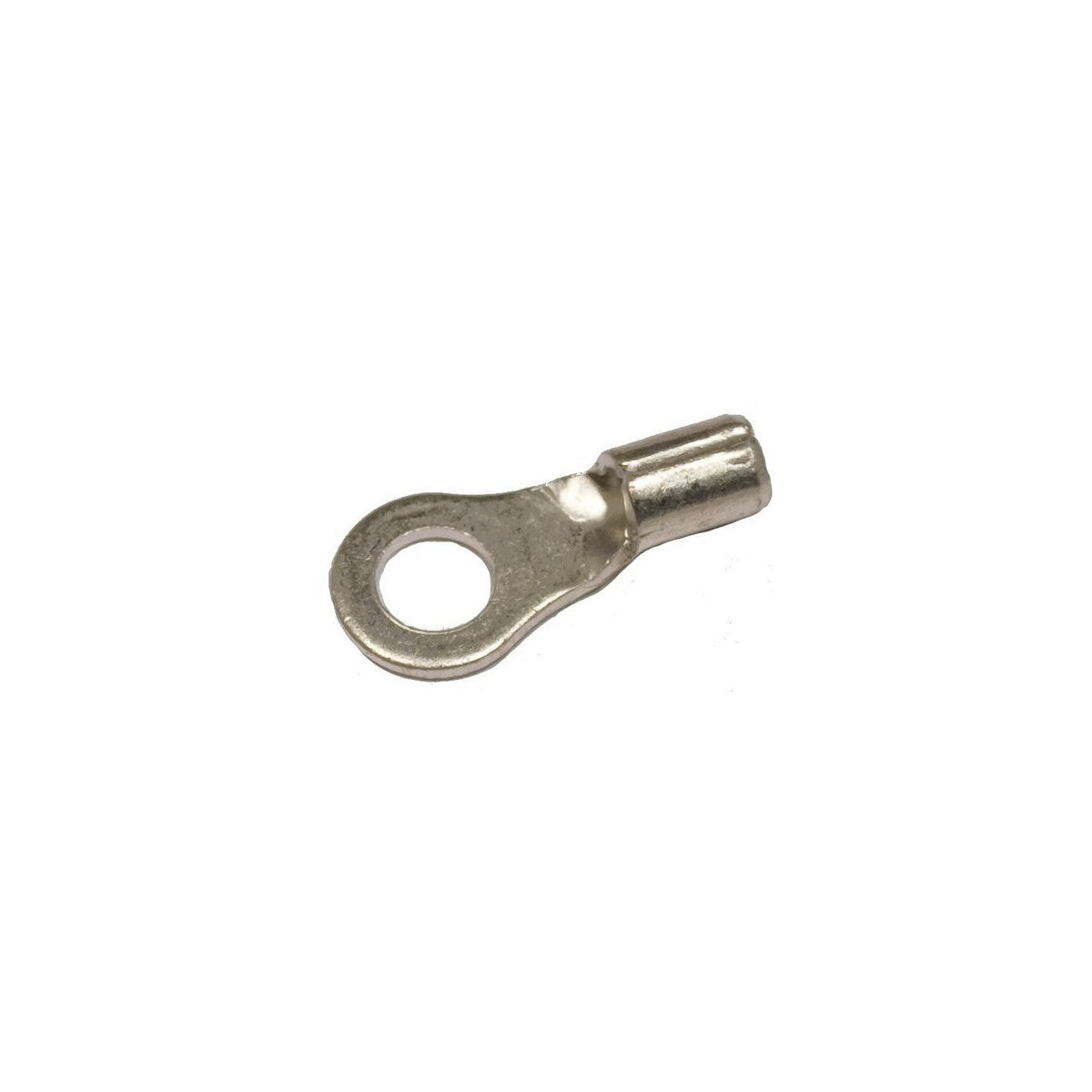

Non-Insulated Ring Terminals - 22-16 Wire, #10 Stud

This non-insulated ring terminal is designed for reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant terminals for 22-16 AWG wire sizes with a #10 stud. Its copper construction and electro-tin plating ensure performance in various lighting solutions and electrical systems.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 22-16 AWG
• Stud Size: #10
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 16 AWG - 18 Amps, 18 AWG - 17 Amps, 20 AWG - 12 Amps, 22 AWG - 9 Amps
• Dimensions (inches): Length 0.622, Width 0.315, Depth 0.134, d1 0.067, d2 0.209, E 0.189, F 0.276, Thickness 0.03
• Certifications: UL, cUL, RoHS

Features

• Non-insulated design for direct wire connection
• Manufactured from high strength copper alloy
• Electro-tin plated for corrosion resistance
• Brazed seam prevents splitting under maximum pressure
• Wire range stamped on the surface for easy identification
