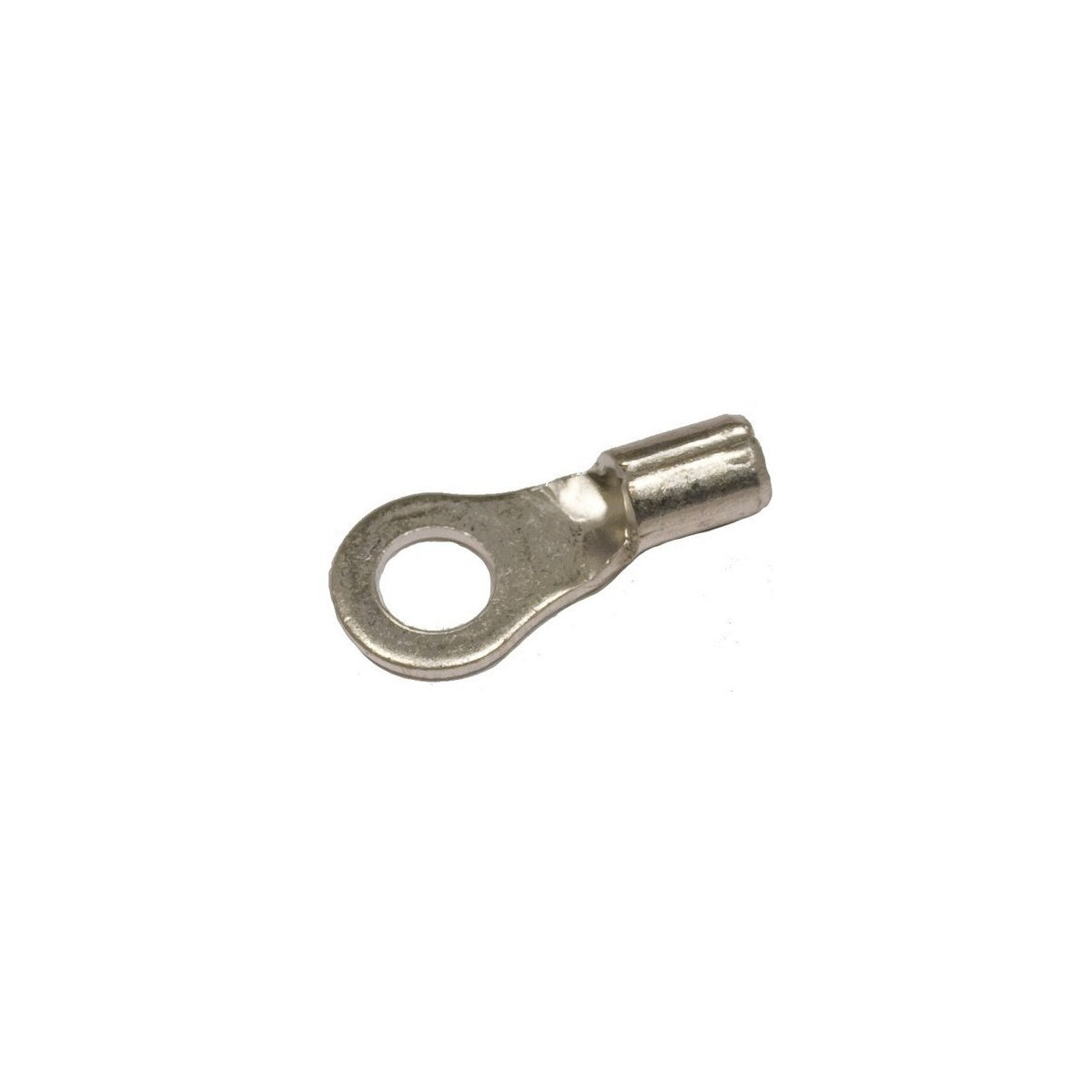

Non-Insulated Ring Terminals - 16-14 Wire, #6 Stud for Electrical Connections

This non-insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant terminals for 16 to 14 AWG wire sizes with a #6 stud.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 16-14 AWG
• Stud Size: #6
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (inches): Length 0.567, Width 0.26, Depth 0.161, d1 0.091, d2 0.146, E 0.189, F 0.248, Thickness 0.031
• UPC: 601986110365
• Manufacturer Part #: 11036
• Certifications: UL, cUL, RoHS compliant

Features

• Non-insulated design for direct wire connection
• High strength copper alloy construction
• Electro-tin plating enhances corrosion resistance
• Brazed seam prevents splitting under maximum pressure
• Wire range stamped on surface for easy identification

Downloads & Links

• Spec Sheet
