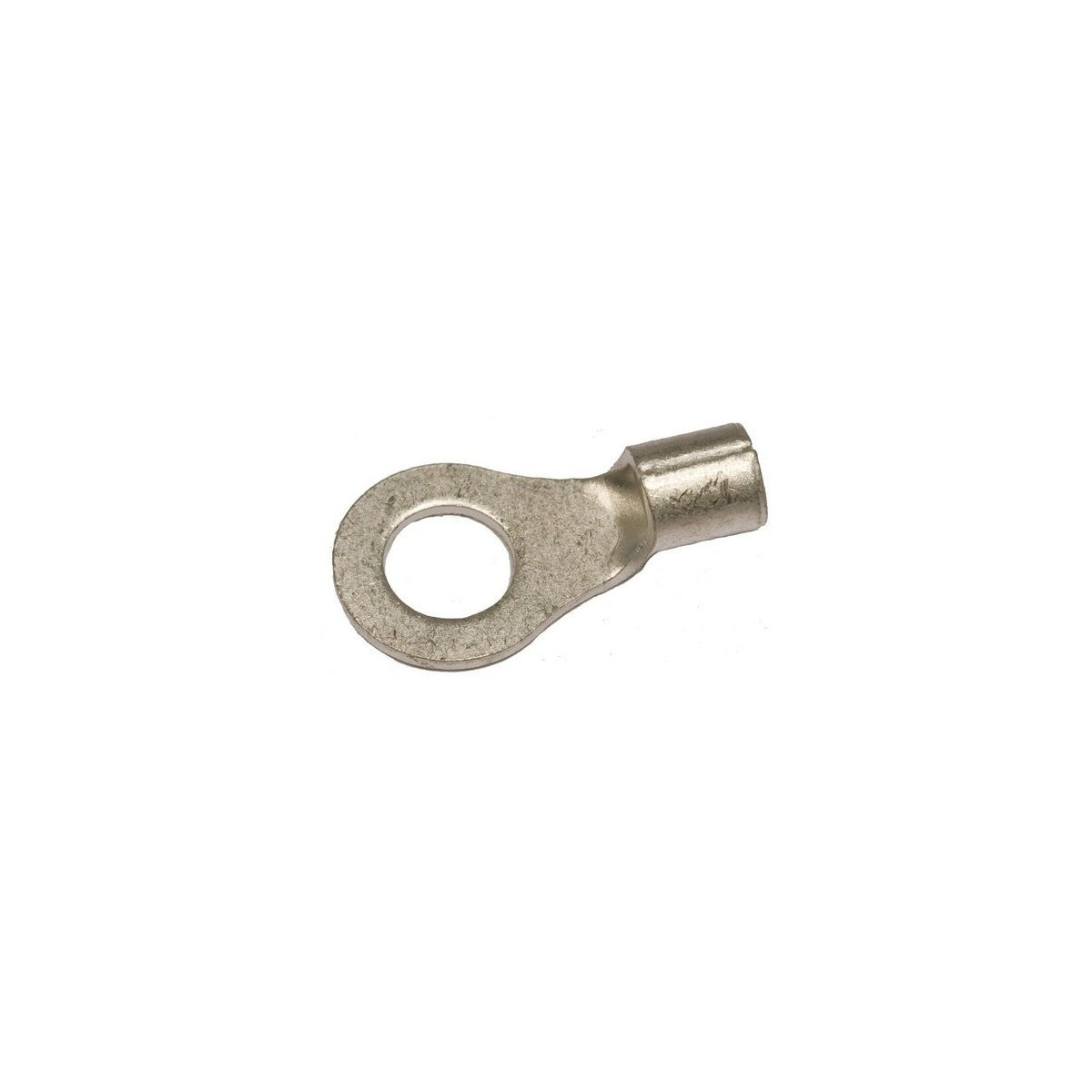

Non-Insulated Ring Terminals - 12-10 Wire, 5/16" Stud
SKU: #390889
Part: #11064
UPC: 601986110648
Non-Insulated Ring Terminals - 12-10 Wire, 5/16" Stud
SKU: #390889
Part: #11064
UPC: 601986110648
Total Price: $0.33 per each Sold in increments of 100 each
Description
Non-Insulated Ring Terminals - 12-10 Wire, 5/16" Stud for Electrical Connections
These non-insulated ring terminals are designed for secure electrical connections in wire and cable assemblies. Manufactured from high-strength copper alloy with electro-tin plating, they provide corrosion resistance and durability. Suitable for use by electrical distributors and switchgear suppliers, these terminals accommodate 12-10 AWG wire sizes and feature a 5/16" stud size, making them ideal for various industrial and commercial electrical applications.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 12-10 AWG
- Stud Size: 5/16"
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
- Length: 1.063 inches (27.0 mm)
- Width: 0.591 inches (15.0 mm)
- Depth: 0.22 inches (5.6 mm)
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Non-insulated design for direct wire termination
- High-strength copper alloy construction for reliable conductivity
- Electro-tin plating enhances corrosion resistance
- Brazed seam prevents splitting under maximum pressure
- Wire range stamped on the surface for easy identification
