Morris Products
Non-Insulated Locking Fork/Spade Terminals - 22-16 Wire, #8 Stud
SKU: #272132
Part: #11664
UPC: 601986116640
Morris Products
Non-Insulated Locking Fork/Spade Terminals - 22-16 Wire, #8 Stud
SKU: #272132
Part: #11664
UPC: 601986116640
Description
Non-Insulated Locking Fork/Spade Terminals - 22-16 Wire, #8 Stud | Wire and Cable Terminals

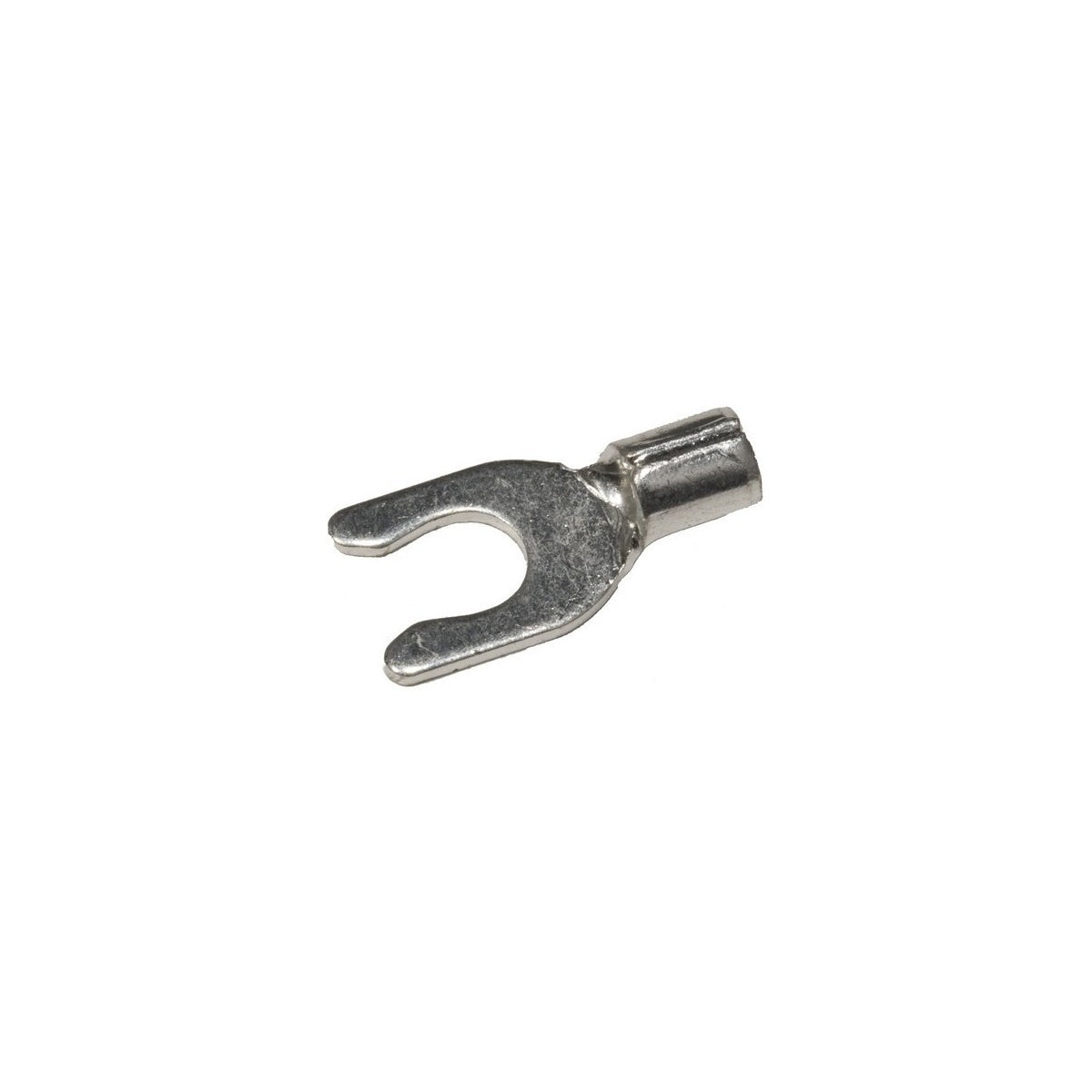

This Non-Insulated Locking Fork/Spade Terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable terminal solutions for 22-16 AWG wire and #8 stud connections. Its copper construction and electro-tin plating ensure durability and corrosion resistance in various electrical and lighting solutions.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 22-16 AWG
- Stud Size: #8
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
- Dimensions (inches): Length 0.63, Width 0.319, Depth 0.134
- Certifications: UL, cUL, RoHS
Features
- Manufactured from high strength copper alloy
- Electro-tin plated for corrosion resistance
- Wire range stamped on surface for easy identification
- Brazed seam prevents splitting under maximum pressure
- Serrated barrel provides excellent electrical contact and pull-out resistance
- Locking tabs on tang increase pull-out force resistance
