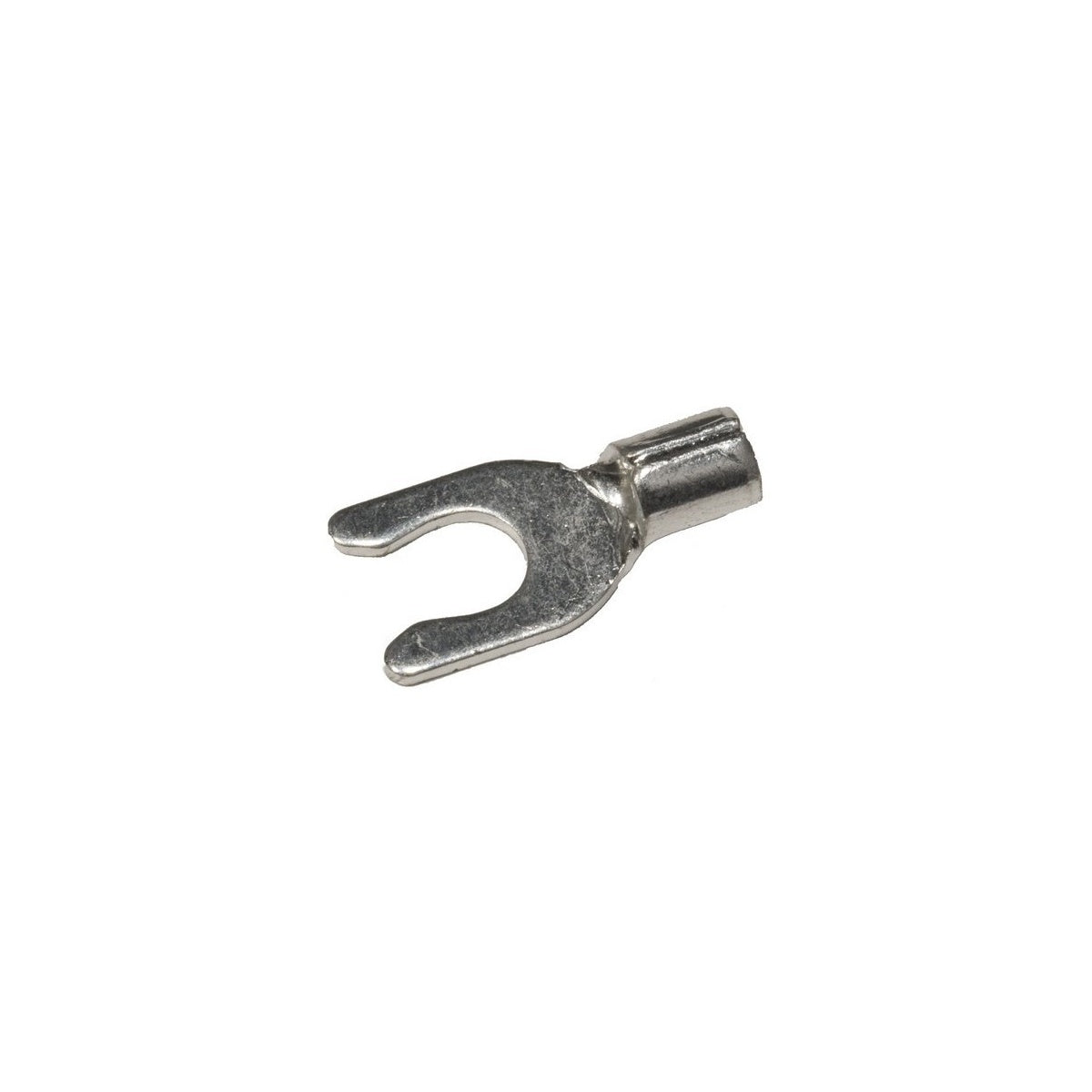

Non-Insulated Locking Fork/Spade Terminals - 22-16 Wire, #6 Stud for Electrical Distributor and Wire Applications

This Non-Insulated Locking Fork/Spade Terminal is designed for secure and reliable electrical connections in wire and cable assemblies. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers seeking durable copper terminals for 22-16 AWG wire sizes with a #6 stud. The terminal is electro-tin plated to resist corrosion and ensure long-lasting performance in various lighting solutions and electrical distribution systems.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 22-16 AWG
• Stud Size: #6
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length 0.63, Width 0.252, Depth 0.134
• Certifications: UL, cUL, RoHS

Features

• Manufactured from high strength copper alloy for durability
• Electro-tin plated for enhanced corrosion resistance
• Wire range stamped on surface for easy identification
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out resistance
• Locking tabs on tang increase pull-out force resistance
