Morris Products

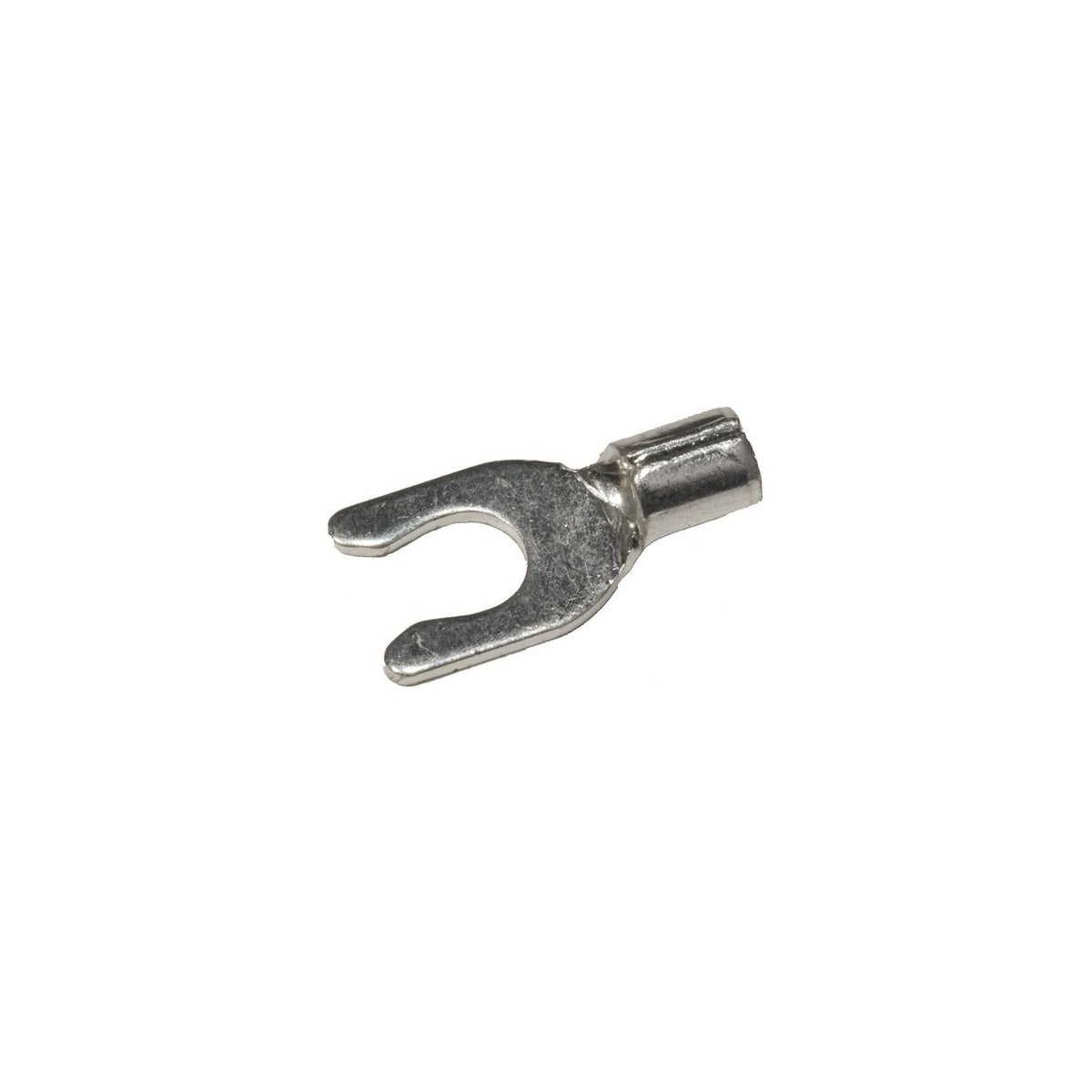

Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #8 Stud
SKU: #272146
Part: #11670
UPC: 601986116701
Morris Products
Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #8 Stud
SKU: #272146
Part: #11670
UPC: 601986116701
Description
Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #8 Stud for Electrical Connections
This Non-Insulated Locking Fork/Spade Terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high strength copper alloy with electro-tin plating, it offers corrosion resistance and reliable conductivity. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes 16-14 AWG and features a #8 stud size, making it ideal for various lighting solutions and electrical installations.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 16-14 AWG
- Stud Size: #8
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
- Length: 0.63 inches (16 mm)
- Width: 0.319 inches (8.1 mm)
- Depth: 0.161 inches (4.1 mm)
- Product Weight: 0.0020 lbs
- Certifications: UL, cUL, RoHS
Features
- Manufactured from high strength copper alloy for durability
- Electro-tin plated surface provides corrosion resistance
- Wire range stamped on surface for easy identification
- Brazed seam design prevents splitting under maximum pressure
- Serrated barrel ensures excellent electrical contact and pull-out resistance
- Locking tabs on tang increase pull-out force resistance
