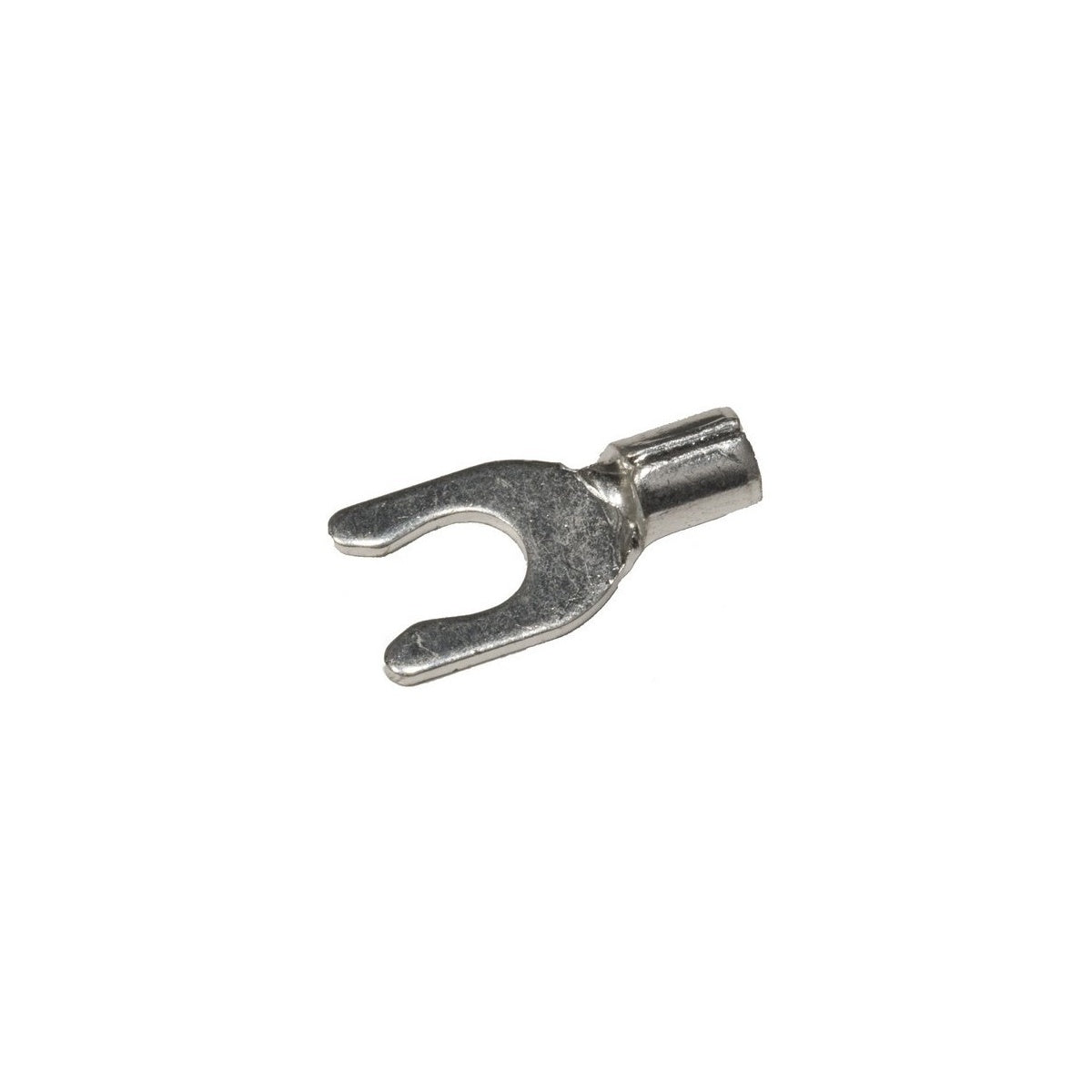

Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #6 Stud | Copper Electrical Terminals

This Non-Insulated Locking Fork/Spade Terminal is designed for reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant terminals for 16-14 AWG wire and #6 stud connections. The terminal supports lighting solutions and general electrical wiring needs with a focus on secure mechanical and electrical contact.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Wire Range: 16-14 AWG
• Stud Size: #6
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (inches): Length 0.63, Width 0.236, Depth 0.161
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface for enhanced corrosion resistance
• Wire range stamped on the terminal for easy identification
• Brazed seam construction prevents splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out resistance
• Locking tabs on tang increase pull-out force resistance
