Morris Products
Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #10 Stud
SKU: #272150
Part: #11672
UPC: 601986116725
Morris Products
Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #10 Stud
SKU: #272150
Part: #11672
UPC: 601986116725
Description

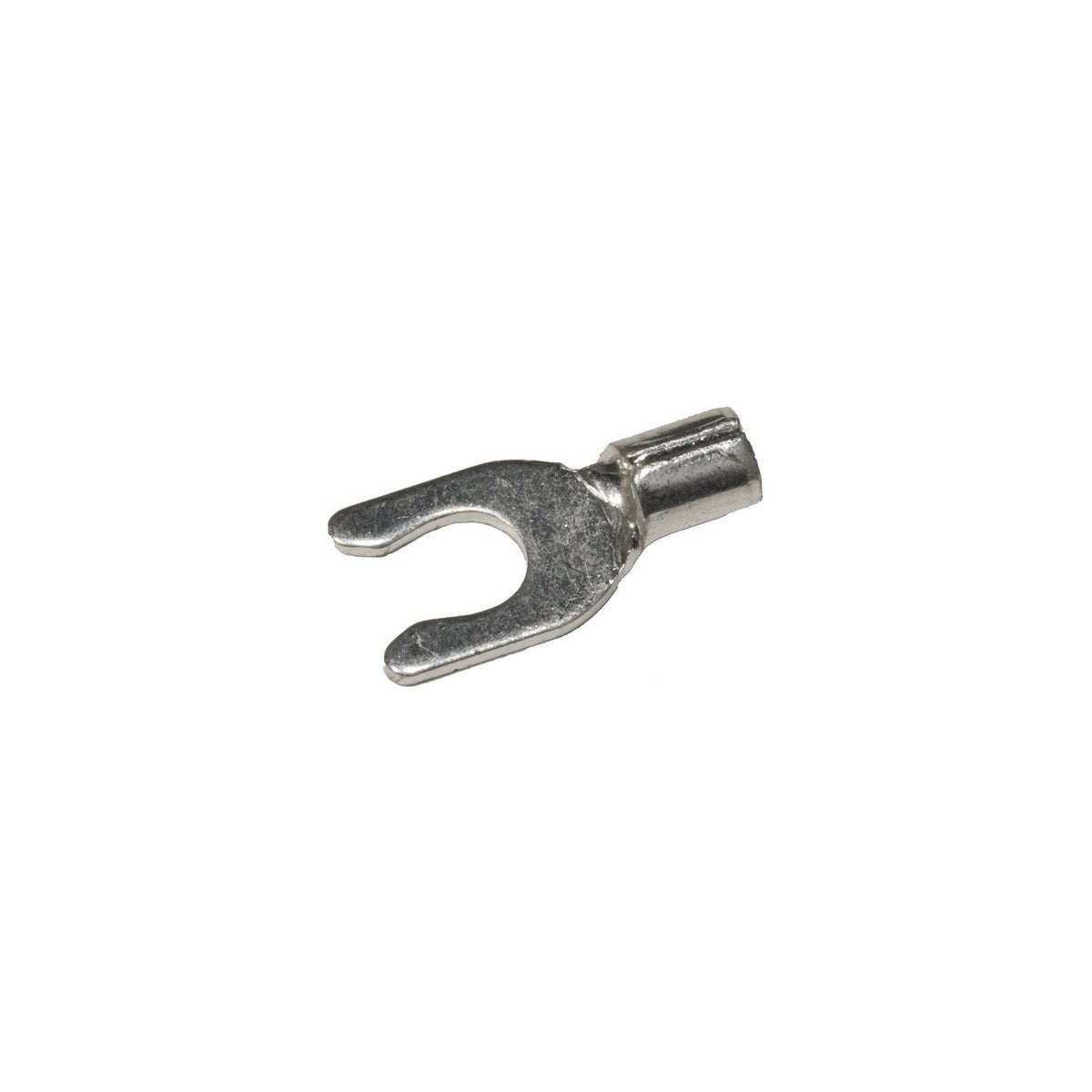

Non-Insulated Locking Fork/Spade Terminals - 16-14 Wire, #10 Stud
This non-insulated locking fork spade terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with an electro-tin plated finish, it offers corrosion resistance and reliable conductivity. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes 16-14 AWG and fits #10 studs, making it ideal for a range of lighting solutions and electrical installations.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 16-14 AWG
- Stud Size: #10
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
- Length: 0.63 inches (16 mm)
- Width: 0.366 inches (9.3 mm)
- Depth: 0.161 inches (4.1 mm)
- Thickness: 0.031 inches (0.8 mm)
- UL Certified
- cUL Certified
- RoHS Compliant
Features
- High-strength copper alloy construction for durability
- Electro-tin plating provides corrosion resistance
- Wire range clearly stamped on surface for easy identification
- Brazed seam prevents splitting under maximum pressure
- Serrated barrel ensures excellent electrical contact and pull-out resistance
- Locking tabs on tang increase pull-out force resistance
