Morris Products
Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #8 Stud
SKU: #272154
Part: #11676
UPC: 601986116763
Morris Products
Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #8 Stud
SKU: #272154
Part: #11676
UPC: 601986116763
Description

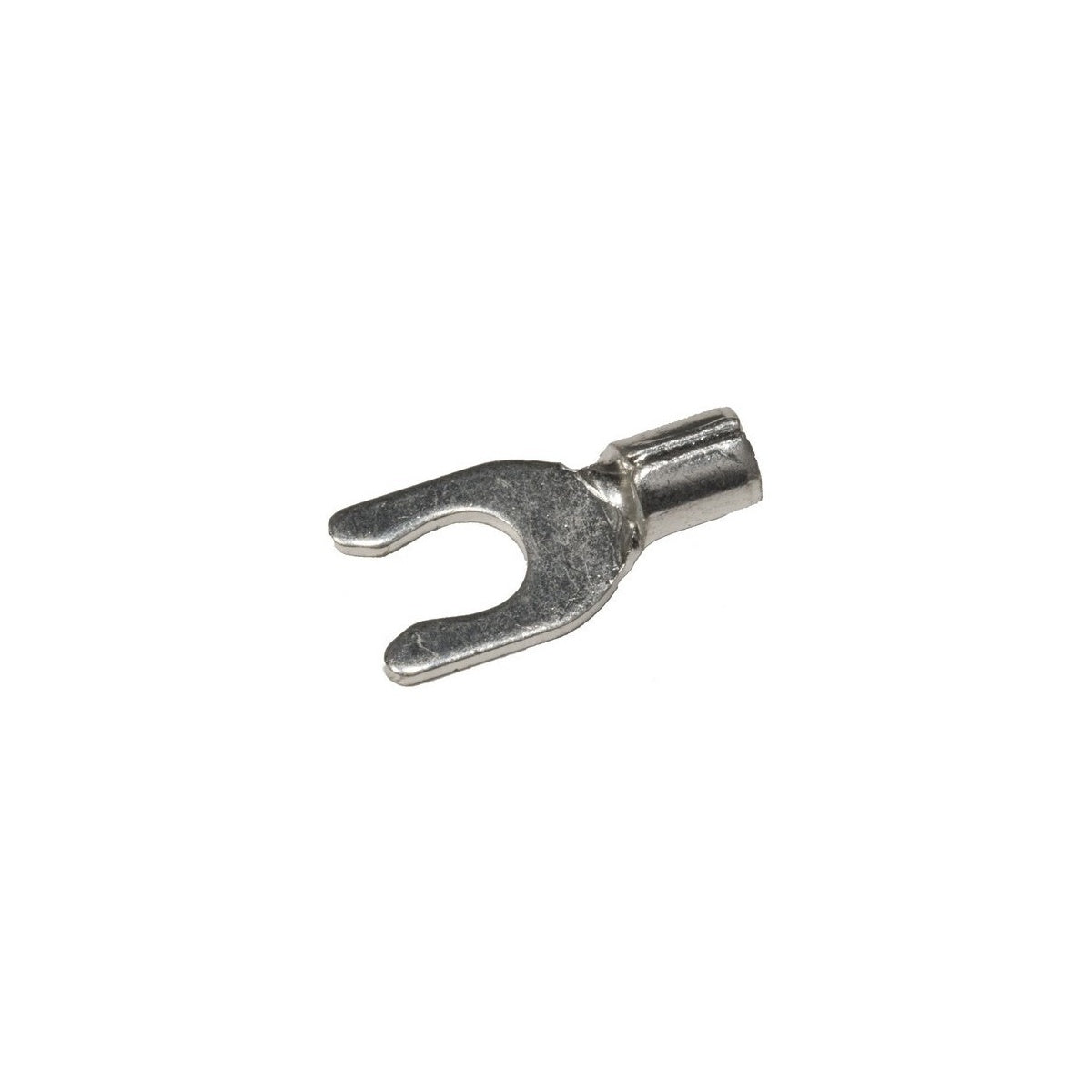

Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #8 Stud
These non-insulated locking fork/spade terminals are designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, they serve as reliable components for electrical distributors and switchgear suppliers requiring durable, corrosion-resistant terminals suitable for 12-10 AWG wire ranges and #8 stud sizes.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 12-10 AWG
- Stud Size: #8
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
- Length: 0.717 inches (18.2 mm)
- Width: 0.327 inches (8.3 mm)
- Depth: 0.22 inches (5.6 mm)
- Product Weight: 0.0050 lbs
- Certifications: UL, cUL, RoHS compliant
Features
- Manufactured from high strength copper alloy for durability
- Electro-tin plating provides corrosion resistance
- Wire range stamped on surface for easy identification
- Brazed seam prevents splitting under maximum pressure
- Serrated barrel ensures excellent electrical contact and pull-out resistance
- Locking tabs on tang increase pull-out force resistance
