Morris Products

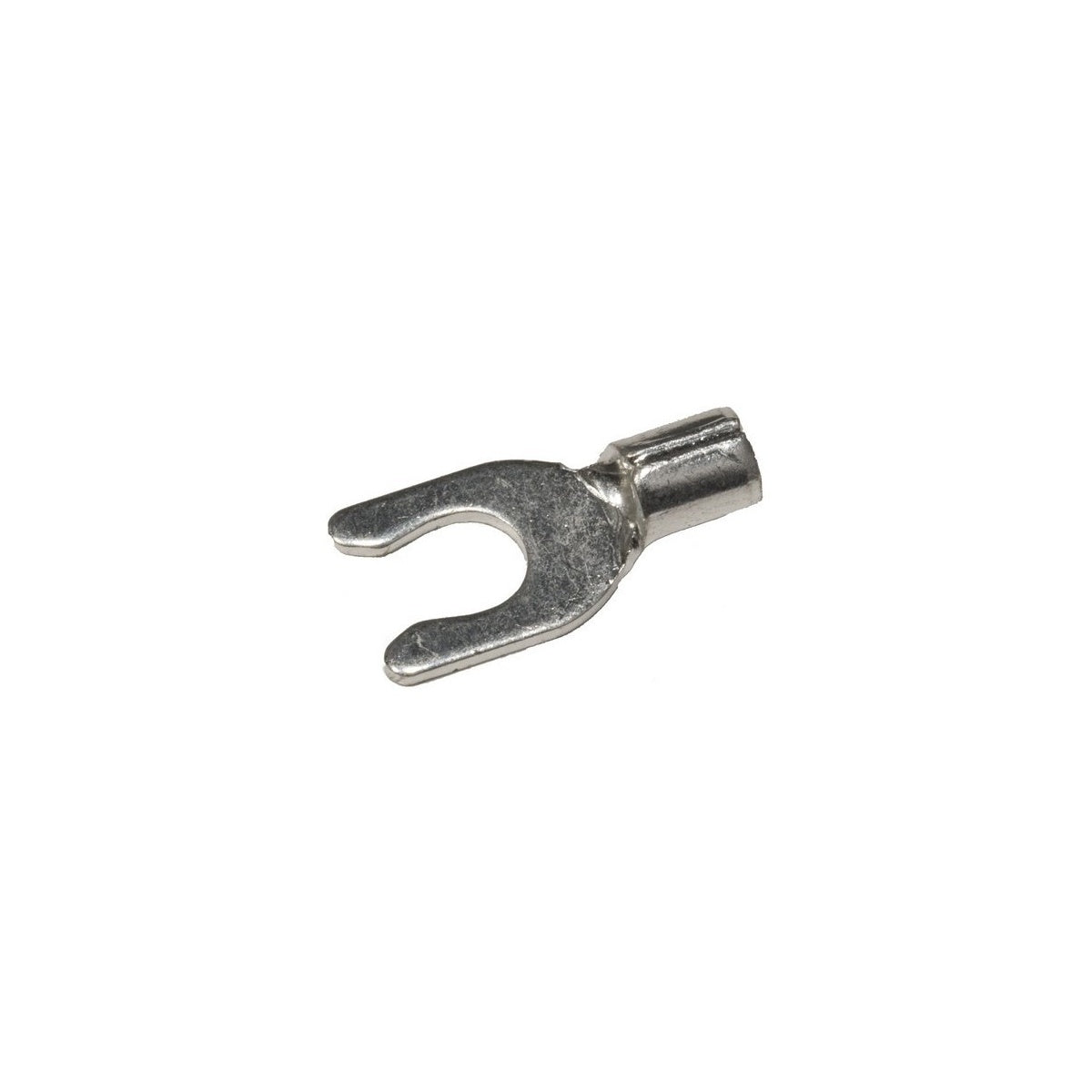

Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #6 Stud
SKU: #272151
Part: #11674
UPC: 601986116749
Morris Products
Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #6 Stud
SKU: #272151
Part: #11674
UPC: 601986116749
Description
Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #6 Stud | Copper Electrical Terminals
This Non-Insulated Locking Fork/Spade Terminal is designed for reliable electrical connections in wire and cable assemblies. Manufactured from high-strength copper alloy and electro-tin plated for corrosion resistance, it is suitable for use by electrical distributors and switchgear suppliers requiring durable, high-performance terminals for 12-10 AWG wire sizes with #6 stud compatibility.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 12-10 AWG
- Stud Size: #6
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
- Length: 0.717 inches (18.2 mm)
- Width: 0.327 inches (8.3 mm)
- Depth: 0.22 inches (5.6 mm)
- Product Weight: 0.0050 lbs
- Certifications: UL, cUL, RoHS Compliant
Features
- Manufactured from high strength copper alloy for durability
- Electro-tin plating provides corrosion resistance
- Wire range stamped on surface for easy identification
- Brazed seam prevents splitting under maximum pressure
- Serrated barrel ensures excellent electrical contact and pull-out resistance
- Locking tabs on tang increase pull-out force resistance
