Morris Products

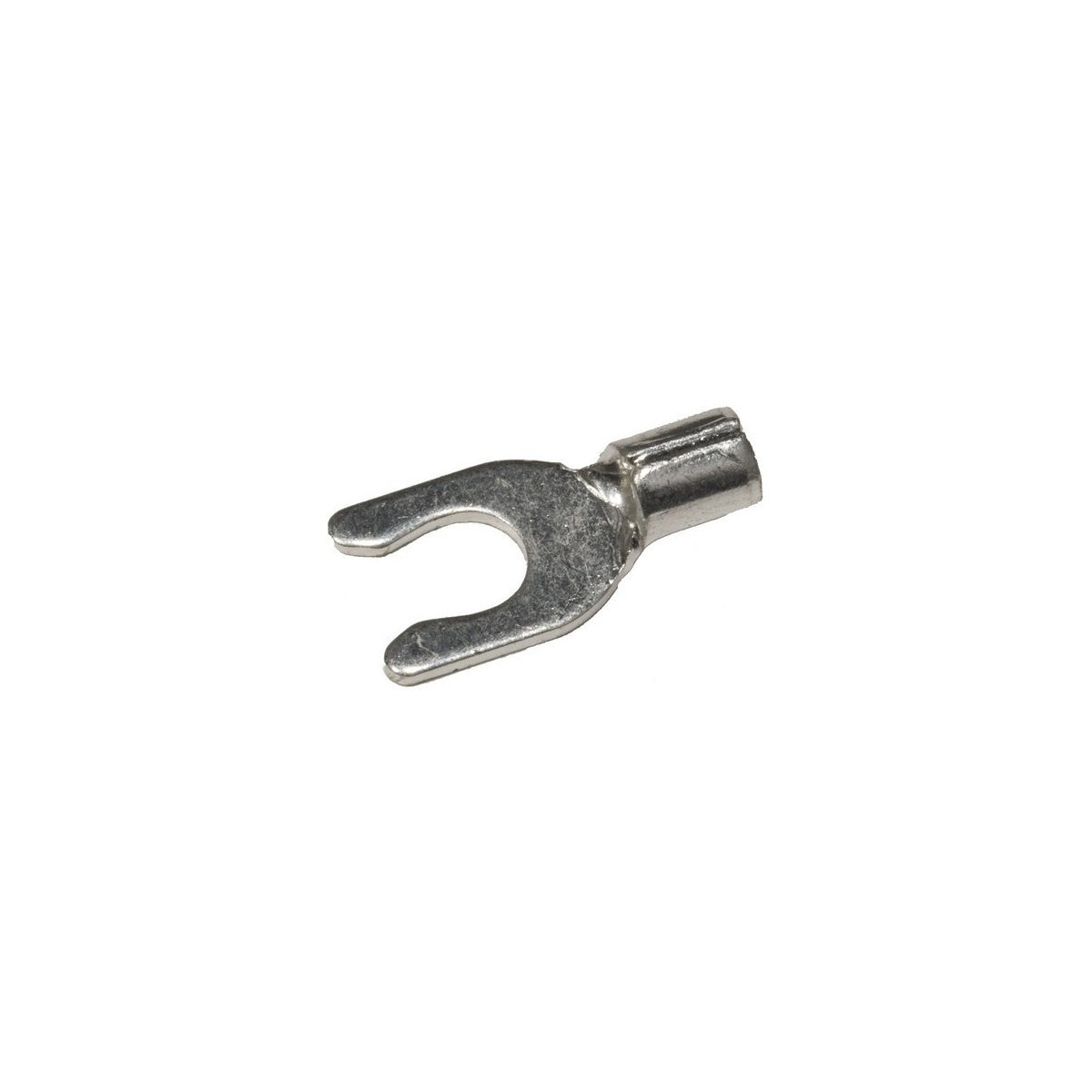

Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #1/4" Stud
SKU: #272163
Part: #11680
UPC: 601986116800
Morris Products
Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #1/4" Stud
SKU: #272163
Part: #11680
UPC: 601986116800
Description
Non-Insulated Locking Fork/Spade Terminals - 12-10 Wire, #1/4" Stud | Copper Electrical Terminals
These non-insulated locking fork/spade terminals are designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, they provide corrosion resistance and reliable conductivity. Suitable for use by electrical distributors and switchgear suppliers, these terminals accommodate 12-10 AWG wire sizes and fit #1/4" studs, supporting up to 600 V and temperature ratings up to 150°C.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 12-10 AWG
- Stud Size: 1/4 inch
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Current Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
- Length: 0.965 inches (24.5 mm)
- Width: 0.472 inches (12 mm)
- Depth: 0.22 inches (5.6 mm)
- Product Weight: 0.0070 lbs
- Certifications: UL, cUL, RoHS compliant
Features
- High-strength copper alloy construction for durability
- Electro-tin plating provides corrosion resistance
- Wire range stamped on surface for easy identification
- Brazed seam prevents splitting under maximum pressure
- Serrated barrel ensures excellent electrical contact and pull-out resistance
- Locking tabs on tang increase pull-out force resistance
