Morris Products

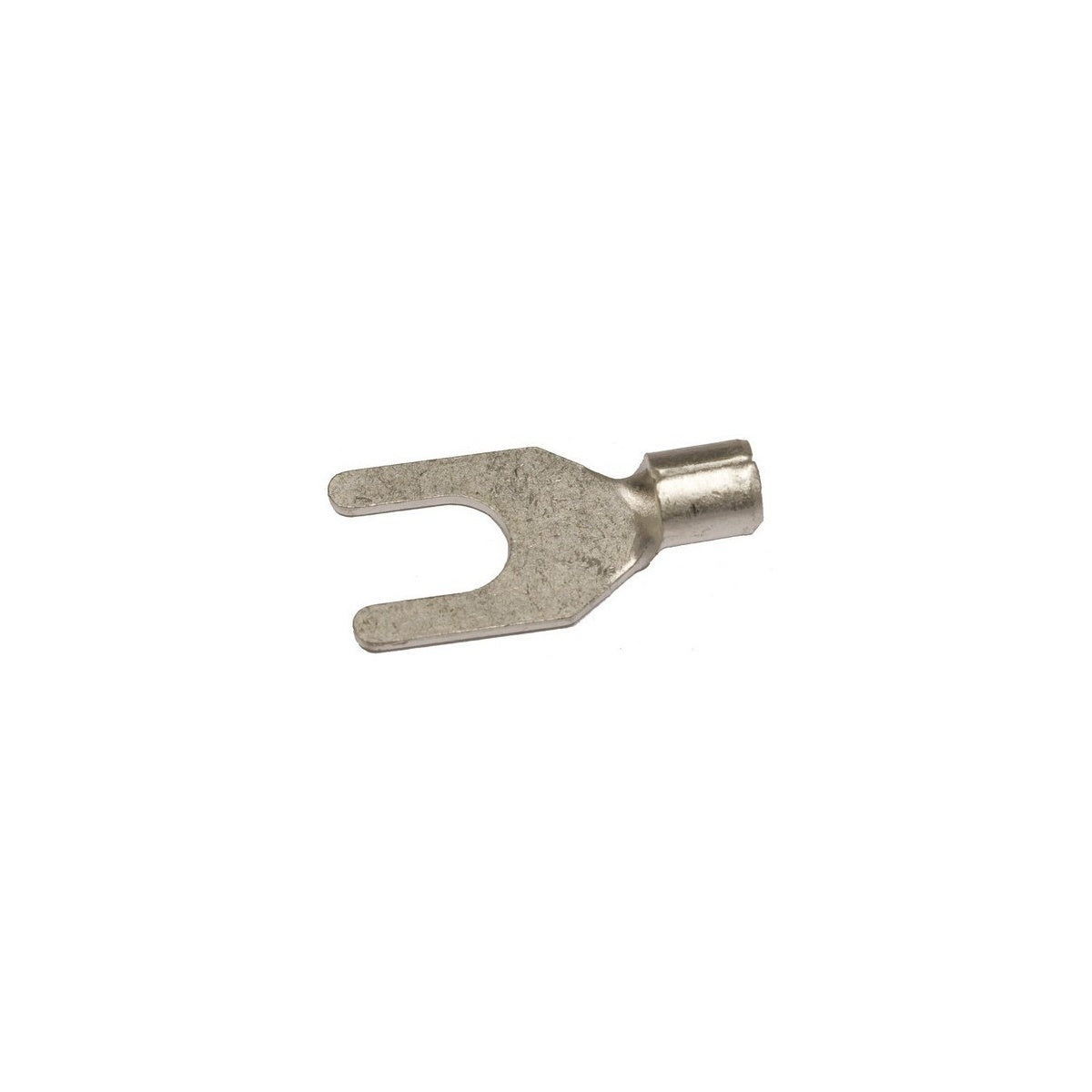

Non-Insulated Fork/Spade Terminals - 12-10 Wire, 1/4" Stud
SKU: #272041
Part: #11538
UPC: 601986115384
Morris Products
Non-Insulated Fork/Spade Terminals - 12-10 Wire, 1/4" Stud
SKU: #272041
Part: #11538
UPC: 601986115384
Description
Non-Insulated Fork/Spade Terminals - 12-10 Wire, 1/4" Stud for Electrical Distributors
These non-insulated fork/spade terminals are designed for reliable wire-to-terminal connections in electrical and lighting solutions. Manufactured from high-strength copper alloy with an electro-tin plated finish, they provide corrosion resistance and excellent electrical conductivity. Suitable for wire sizes 12-10 AWG and compatible with 1/4" stud sizes, these terminals are ideal components for wire and cable assemblies supplied by switchgear and electrical distributors.
Specifications
- Material: Copper
- Finish: Electro-tin plated
- Wire Range: 12-10 AWG
- Stud Size: 1/4"
- Temperature Rating: 150°C
- Voltage Rating: 600 V
- Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
- Length (L): 0.965 inches (24.5 mm)
- Width (W): 0.472 inches (12 mm)
- Depth (D): 0.22 inches
- Diameter d1: 0.134 inches
- Diameter d2: 0.252 inches
- Dimension E: 0.236 inches
- Dimension F: 0.472 inches
- Thickness (T): 0.039 inches
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Manufactured from high-strength copper alloy for durability
- Electro-tin plating for enhanced corrosion resistance
- Wire range stamped on the surface for easy identification
- Brazed seam construction prevents splitting under maximum pressure
- Serrated barrel design ensures excellent electrical contact and pull-out resistance
