Non-Insulated Flag Female Disconnects - 12-10 Wire, .032x.250 Tab | Electrical Connector

This non-insulated right angle flag female disconnect is designed for reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant connectors compatible with 12-10 AWG wire sizes.

Specifications

• Material: Brass (Copper Alloy)
• Finish: Electro-Tin Plated
• Wire Range: 12-10 AWG
• Tab Size: 0.032 x 0.250 inches
• Stock Thickness: 0.018 inches

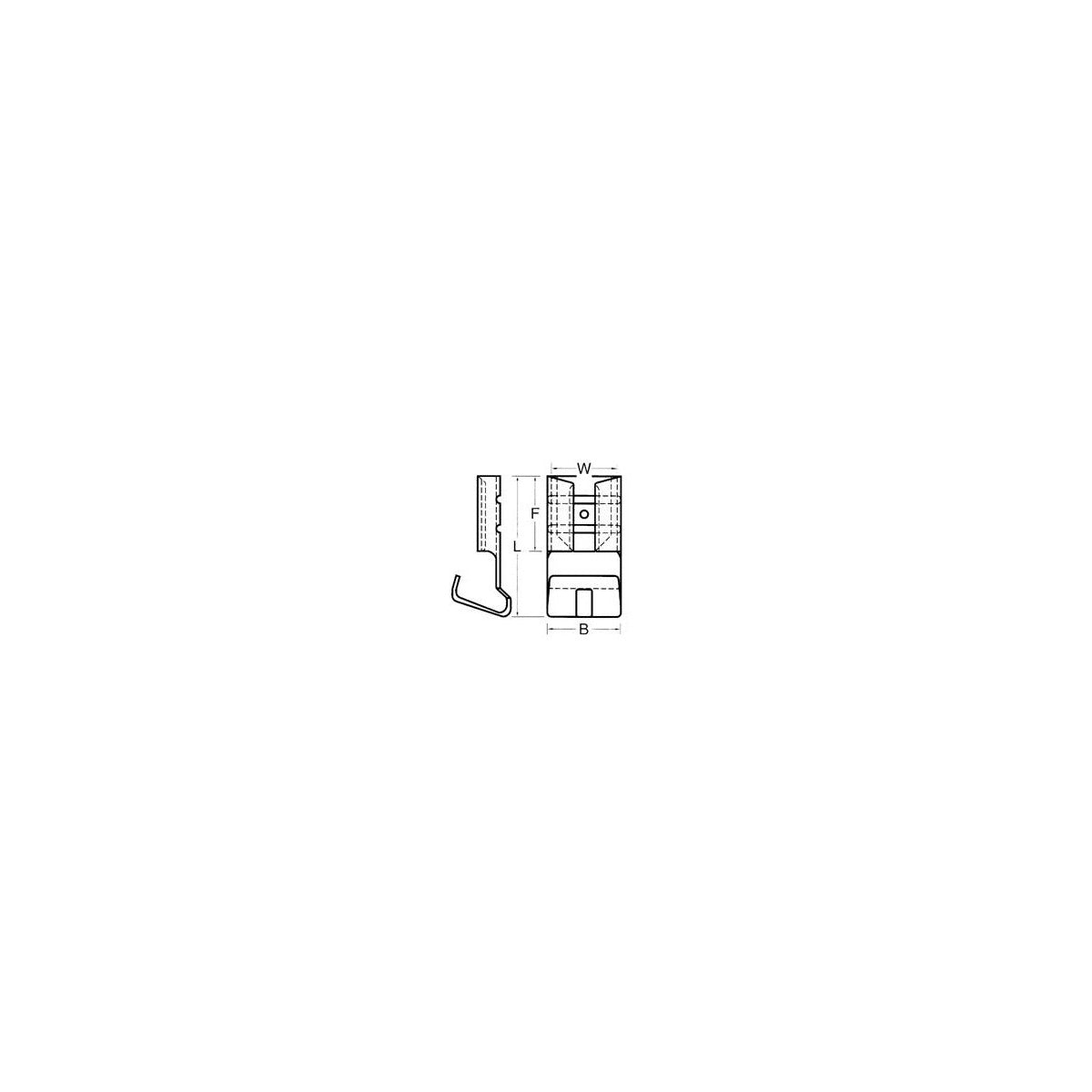

• Length (L): 0.571 inches
• Width (B): 0.295 inches
• Height (F): 0.299 inches
• Width (W): 0.26 inches
• Temperature Rating: 150¬∞C
• Voltage Rating: 300 V
• Current Rating: 20 Amps (12 AWG), 24 Amps (10 AWG)
• Certifications: UL, cUL, RoHS Compliant

Features

• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface for corrosion resistance
• Wire range clearly stamped on surface for easy identification
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel design ensures excellent electrical contact and pull-out resistance
