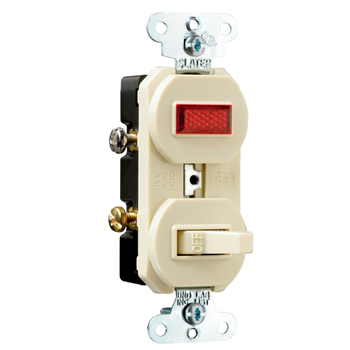

Non-Grounding Single-Pole Combination Switch & Pilot Light, Ivory 692I
SKU: #318795
Part: #692I
UPC: 785007692013
Non-Grounding Single-Pole Combination Switch & Pilot Light, Ivory 692I
SKU: #318795
Part: #692I
UPC: 785007692013
Next day delivery
Description
Non-Grounding Single-Pole Combination Switch & Pilot Light, Ivory 692I - Combination Switch
This Non-Grounding Single-Pole Combination Switch with Pilot Light is designed for residential and commercial electrical applications. It provides reliable switching with an integrated pilot light for visual status indication. Suitable for use by electrical distributors and lighting solutions providers, it supports wire and cable installations with a non-grounding side wire connection. This switch is ideal for wall mounting in various lighting and control circuits.
Specifications
- Manufacturer: Pass & Seymour
- Manufacturer Part #: 692I
- Application: Residential/Commercial
- Amperage: 15 amperes
- Contact Rating: 15 Amp, 120/125 VAC
- Number of Poles: 1
- Contact Configuration: N-O (Normally Open)
- Operating Cycles: 30,000
- Operating Temperature: Maximum continuous +60°C, minimum -30°C
- Environmental Conditions: Flammability UL94 V2
- Color: Ivory
- Depth: 0.94 inches
- Product Weight: 0.2200 lbs
- Mounting: Wall
- Connection: Non-grounding, Side wire
- Actuator Type: Toggle
- Action: Single Pole & Pilot Light
Features
- Single-pole switch combined with a single pilot light for visual load indication
- Non-grounding design suitable for use with copper or copper-clad wire only
- Durable toggle actuator for reliable manual operation
- Compact depth of 0.94 inches for easy installation in standard wall boxes
- UL94 V2 flammability rating ensuring compliance with safety standards
- Designed for up to 30,000 operating cycles for long service life
