Features

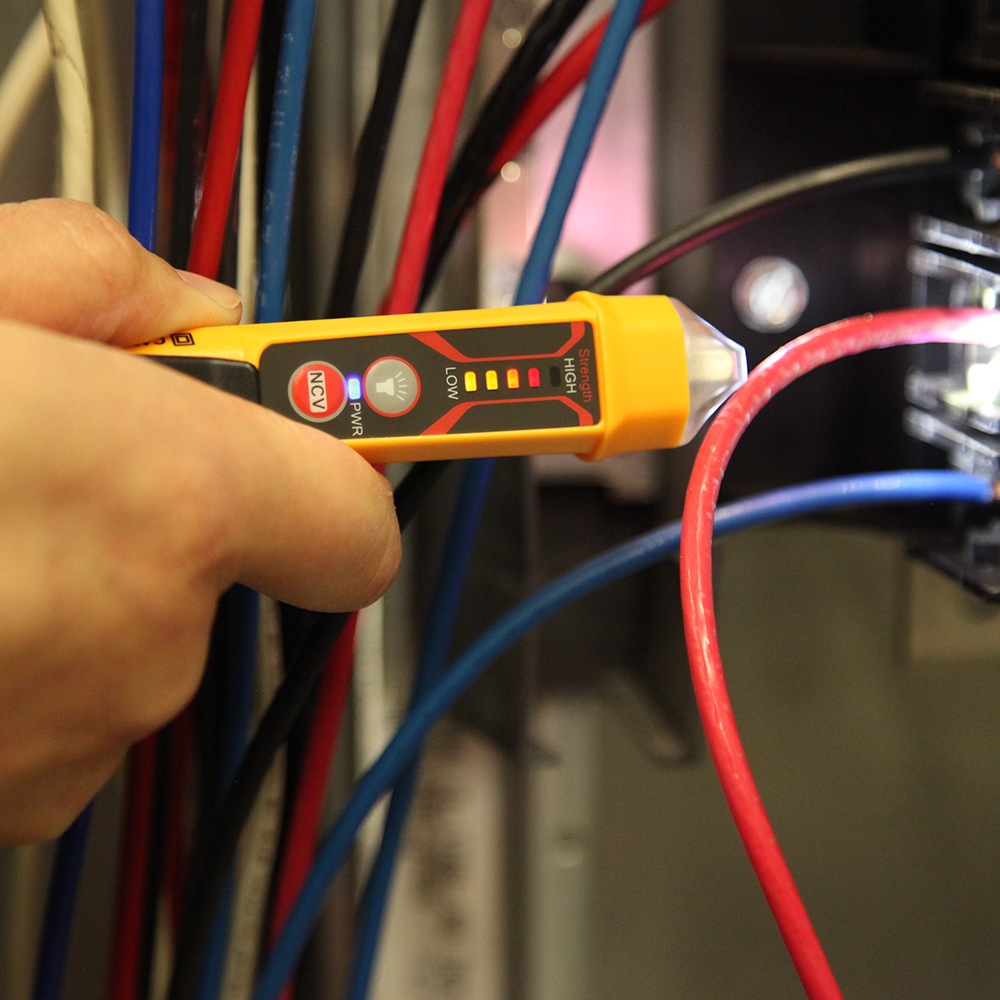

• Voltage tester provides non-contact detection of AC voltage
• Volt pen detects 12 to 1000V AC with simultaneous visual and audible voltage indicators
• Bright flashlight illuminates work area and may be used independent of voltage detection function
• Visual LED bar graph indicates the presence of voltage - the higher the voltage sensed, or the closer to the voltage source, the more LEDs light up
• Bar graph visual voltage indicator utilizes up to five vibrant LEDs for easy interpretation/viewing
• Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
• Auto Power-Off" conserves and extends battery life
• Screw-thread battery cap with O-ring ensures protection against dust and water ingress
• Lightweight, compact tool with pocket clip provides convenient storage and quick access
• IP67: Dustproof and waterproof
• 6.6 feet / 2 meter drop protection
• CAT IV safety rating for 1000V
• Conforms to CE requirements
• US Patent 10,073,142, D750,985 and other patents pending

Warnings

• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

Specifications

• Overall Height: 1.16" (2.9 cm)
• Overall Width: 0.72" (1.8 cm)
• Voltage: 12 - 1000V AC
• Frequency: 50 - 500 Hz
• Pollution Degree: 2
• Weight: 1.20 oz (34.00 g)
• Overall Length: 5.83" (14.8 cm)
• Special Features: US Patent 10,073,142, D750,985 and Other Patents Pending
• Standard: CAT IV 1000V
• Ingress Protection: IP67: Dustproof and Waterproof
• Batteries: 2 x AAA
• Drop Protection: 6.6' (2 m)
• Style Name: with Flashlight
