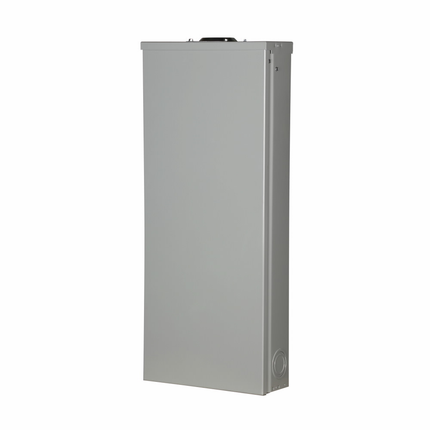

No feed-thru lugs,Main circuit breaker loadcenter,150A,C3R,Aluminum,Interlock cover,NEMA 3R,Metallic,10 kAIC,BR,30 circuits,Thirty pole,30 spaces,Three-wire,Single-phase,#2/0 AWG-300 kcmil Cu/Al,Combination,Type BR 1-inch breakers,120/240V
SKU: #159701
Part: #BR3030B150R
UPC: 786676445108
No feed-thru lugs,Main circuit breaker loadcenter,150A,C3R,Aluminum,Interlock cover,NEMA 3R,Metallic,10 kAIC,BR,30 circuits,Thirty pole,30 spaces,Three-wire,Single-phase,#2/0 AWG-300 kcmil Cu/Al,Combination,Type BR 1-inch breakers,120/240V
SKU: #159701
Part: #BR3030B150R
UPC: 786676445108
Total Price: $1,960.17 per each Sold in increments of 1 each
Description

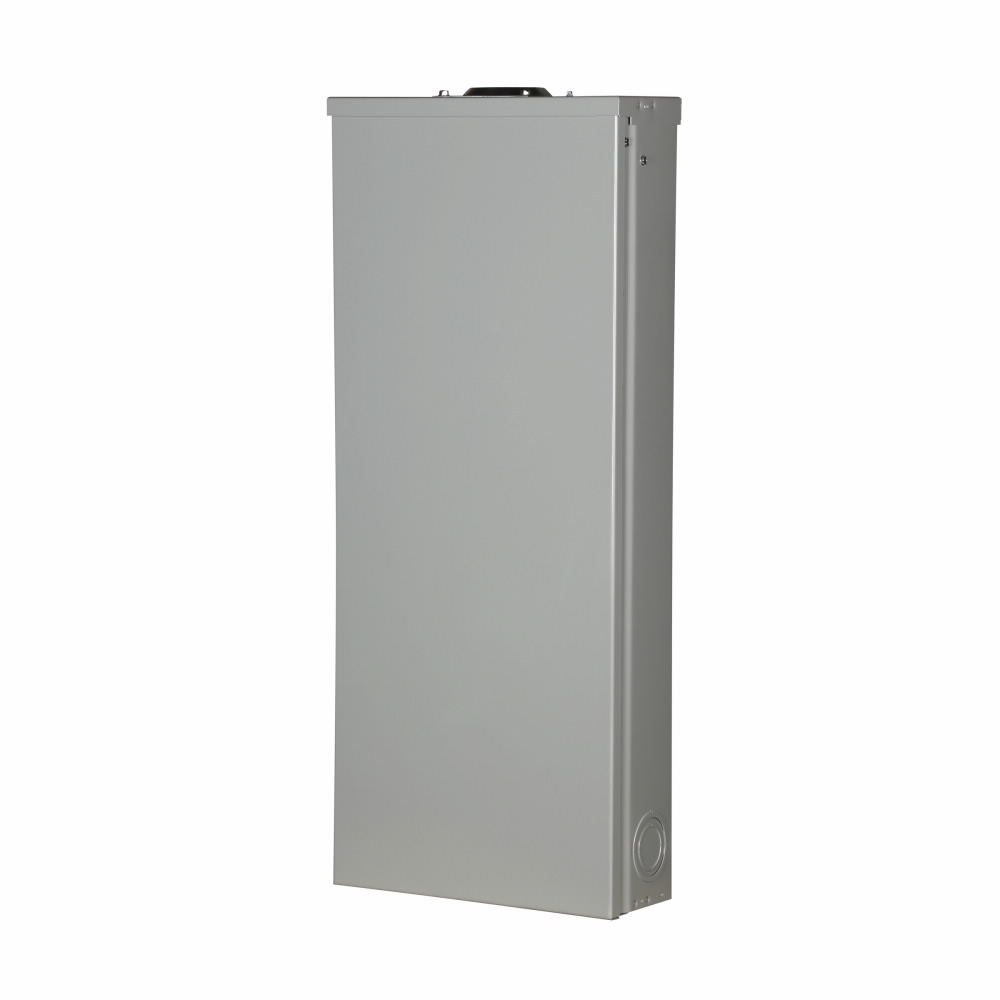

No feed-thru lugs Main circuit breaker loadcenter 150A Aluminum NEMA 3R
This Eaton main circuit breaker loadcenter is designed for residential and light commercial electrical distribution. It provides a robust solution for safely distributing power across multiple circuits in single-phase, three-wire systems at 120/240V. As a reliable product from a leading electrical distributor and switchgear supplier, it is suitable for service entrance or sub-panel applications requiring up to 150 amperes of main breaker capacity.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BR3030B150R
- Amperage: 150 amperes
- Number of Circuits: 30
- Number of Spaces: 30
- Number of Phases: 1
- Enclosure Type: NEMA 3R
- Enclosure Material: Metallic
- Bus Material: Aluminum
- Interrupt Rating: 10 kiloamps
- Mounting Type: Combination (flush/surface)
- Dimensions (W x H x D): 14.31 in x 25 in x 5.19 in
- Wire Size Range: #2/0 AWG to 300 kcmil Copper/Aluminum
- Weight: 42 lbs
Features
- Combination mounting type allows for flexible installation options
- Aluminum bus provides superior conductivity and corrosion resistance
- Metallic enclosure rated NEMA 3R for rainproof outdoor use
- Main breaker protects entire panel and serves as service disconnect
- Supports Type BR 1-inch breakers with plug-on neutral compatibility
- Includes interlock cover enhancing safety
- 30 circuits and 30 spaces accommodate a wide range of branch circuits
- Rated for 10 kAIC interrupting capacity, meeting NEC requirements
- Suitable for use as service entrance equipment or sub-panel
