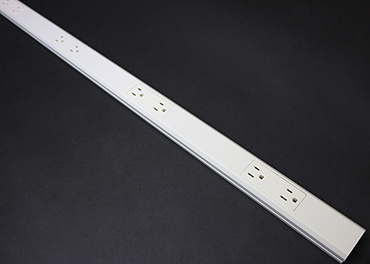

NM20GB609 Nonmetallic Plugmold® Multioutlet System – Multioutlet Electrical Distributor

The NM20GB609 Nonmetallic Plugmold® Multioutlet System by Wiremold is a 6-foot multioutlet strip designed for efficient power distribution in commercial and residential applications. Comprising eight 9-inch segments, this system provides multiple receptacle outlets in a compact, nonmetallic housing suitable for use in lighting solutions, wire and cable management, and as part of switchgear supplier offerings. It is engineered for interior use and complies with National Electrical Code standards for safe and reliable installation.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: NM20GB609
• Product Weight: 3.28 lbs
• Dimensions: 1.75 in Length x 1.75 in Width x 1.0 in Depth
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 2 units
• UPC: 786776520026

Features

• Multioutlet strip composed of eight 9-inch segments for flexible installation
• Nonmetallic construction suitable for interior environments
• Designed for use on 20-ampere small appliance branch circuits with compatibility for both 15A and 20A receptacles as per City of Chicago Electrical Code
• UL listed for safety and compliance
• Supports 20A feed-through wiring with minimum 12 AWG wiring for multioutlet assemblies

Downloads & Links

• NM2000 Series Nonmetallic Plugmold Multioutlet System Receptacle Replacement
• Installation Guidelines for Receptacles on Small Appliance Branch Circuits in the City of Chicago
• Installation Guidelines for Receptacles on Small Appliance Branch Circuits
• NM2000 Series Nonmetallic Plugmold Multioutlet System Fittings
• NM2000 Series Nonmetallic Plugmold Multioutlet System Surge Module Replacement
• Plugmold Installation
• Plugmold Series Part List - COO
• Plugmold¬Æ Raceway & Multioutlet Assemblies
• Spec Sheet
• NM2000 Series Nonmetallic Plugmold Multioutlet System
