NM cable connector zinc die-cast. 2 screw clamp type. Handles combinations of NM cable from #14 to #10. Up to 3 NM cables at one time. Snap tight.
SKU: #70850
Part: #841ST
UPC: 018997800688
NM cable connector zinc die-cast. 2 screw clamp type. Handles combinations of NM cable from #14 to #10. Up to 3 NM cables at one time. Snap tight.
SKU: #70850
Part: #841ST
UPC: 018997800688
Description

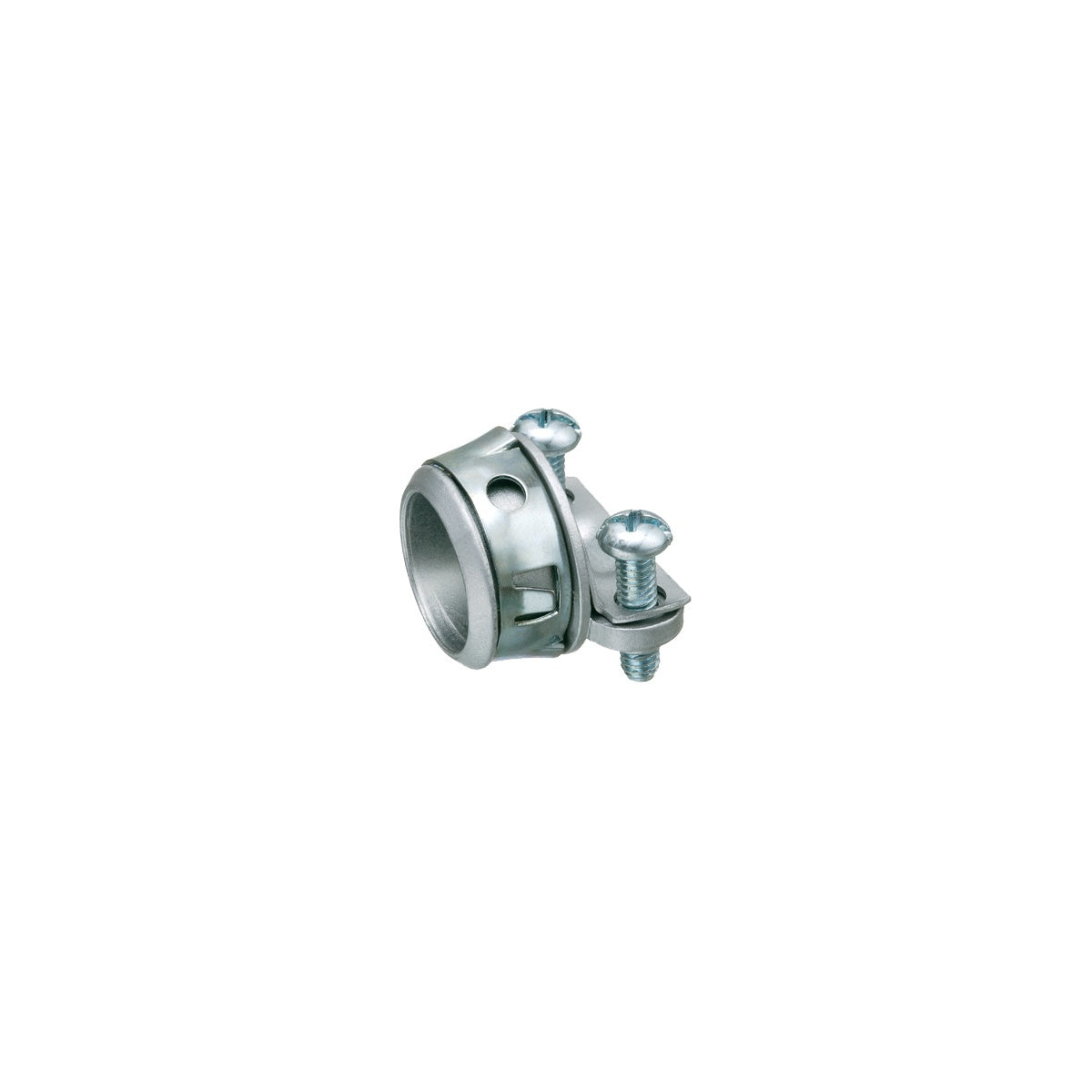

NM Cable Connector Zinc Die-Cast by Arlington Industries
This NM cable connector is designed for secure and reliable connections in electrical installations. It features a 2-screw clamp type mechanism that handles combinations of NM cable sizes from #14 to #10, accommodating up to three NM cables simultaneously. Constructed from zinc die-cast material, this connector is suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient wire and cable connectors.
Specifications
- Manufacturer: Arlington Industries
- Manufacturer Part #: 841ST
- Material: Zinc
- Color: Silver
- Knockout Size: 1/2 inches
- Product Weight: 0.0440 lbs
- Cable Range: .225 - .612 inches (see detailed cable ranges in manufacturer documentation)
- UPC: 018997800688
Features
- Snap-tight design with spring steel clip for secure cable retention
- Accommodates up to 3 NM cables at one time
- 2 screw clamp type for firm and reliable connection
- Zinc die-cast construction for durability and corrosion resistance
- UL listed for ground fault requirements ensuring compliance and safety
- Compact dimensions: A = 0.420", B = 0.880", C = 0.920", D = 1.190" (per manufacturer specs)
