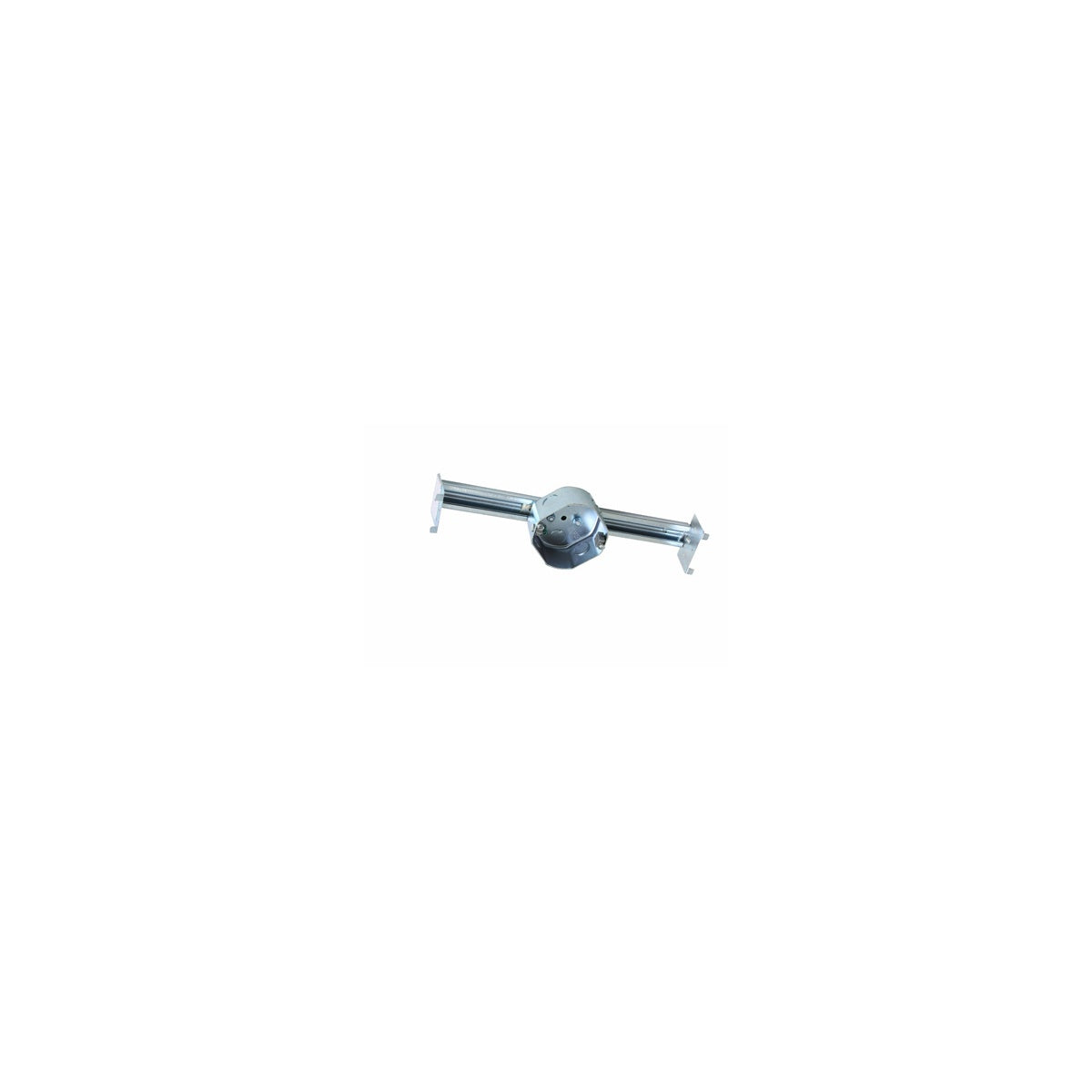

New Construction Slides for Ceiling Fan and Light Fixture Support

The New Construction Slides by Pass & Seymour are heavy-duty slide fan supports designed for mounting ceiling fans and light fixtures in new construction or alteration projects. These rotating dual-purpose mounting supports accommodate spans from 16 to 24 inches and provide a reliable solution for electrical distributors and switchgear suppliers needing durable wire and cable support components. The product is suitable for installation between, beside, or under ceiling joists, meeting National Electrical Code (NEC) requirements for fan and fixture support.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: 55501
• Order Minimum: 24 units
• Product Weight: 2.08 lbs
• Country of Origin: China
• Fan Support Capacity: Up to 70 lbs
• Fixture Support Capacity: Up to 110 lbs
• Box Volume: 16 cubic inches
• Box Depth: 1.5 inches
• Span Range: 16 to 24 inches
• UPC: 085129555013

Features

• Rotating dual-purpose mounting supports for fan (#10-32 screws) and fixture (#8-32 screws) installations
• Heavy-duty hexagon brace construction for durability
• Includes 25 cu. in. metal box for wiring and connections
• Cast zinc self-leveling feet for ease of installation
• Top and side knockouts for flexible wiring access
• Peel & stick tape temporarily frees hands for tool use during installation
• UL and NEC compliant for fan and fixture installations
• Designed for new construction or alteration applications with mounting between, beside, or under joists

Downloads & Links

• Reiker Fan & Fixture Supports
• Wall Boxes & Floor Boxes
• Cleaning Instructions for Wiring Devices
• Spec Sheet
