New Construction Slides – Heavy Duty Fan Support

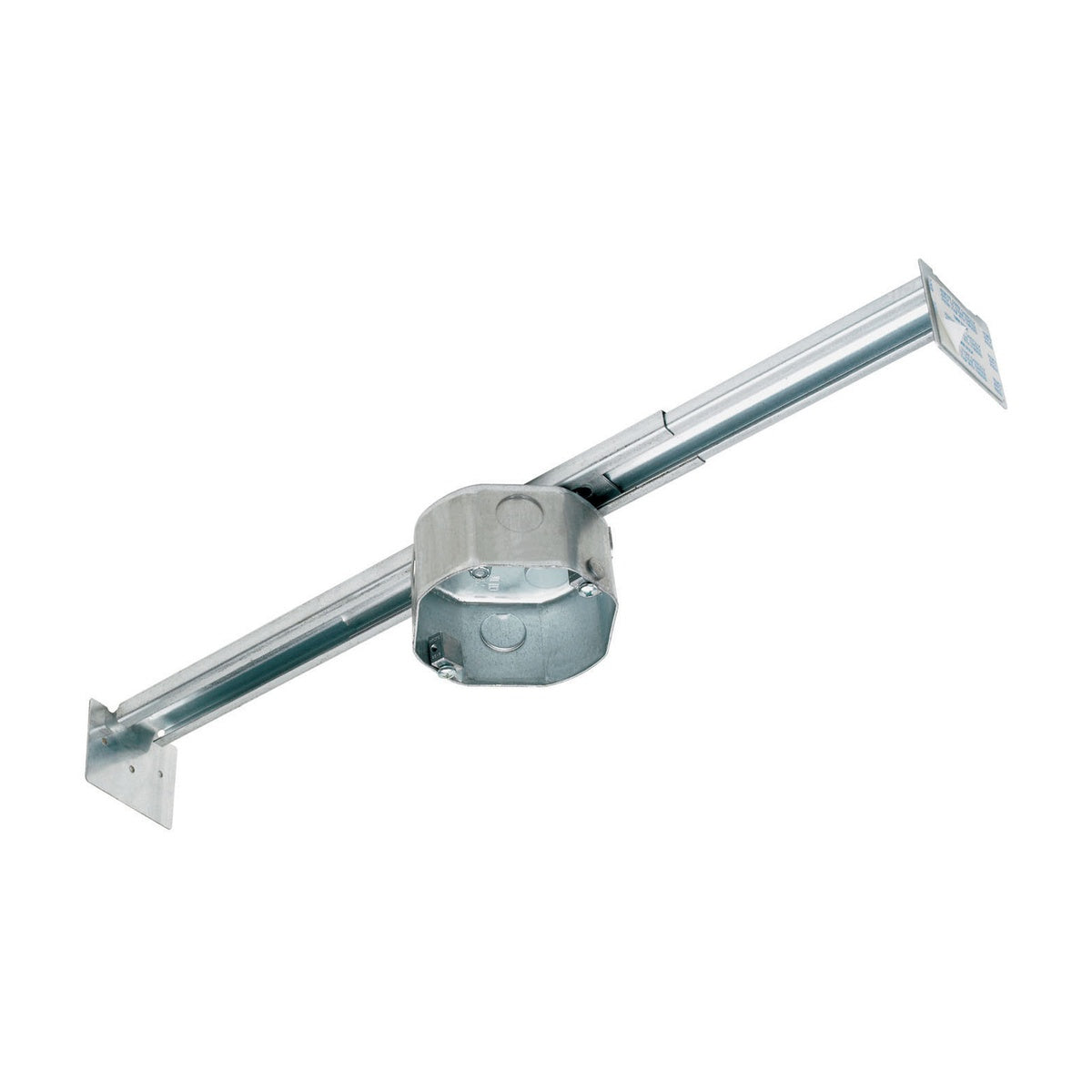

The New Construction Slides by Pass & Seymour provide a heavy-duty slide fan support designed for mounting ceiling fans and light fixtures in new construction or alteration projects. This product is suitable for electrical distributors and switchgear suppliers requiring reliable mounting solutions for fan and fixture installations spanning 16 to 24 inches. It features a deep metal box with rotating dual-purpose mounting supports, allowing flexibility to mount either fans or light fixtures, making it a practical component in lighting solutions and wire and cable management systems.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: 85502
• Country of Origin: China
• Weight: 1.76 lbs
• Span Range: 16 to 24 inches
• Pack Quantity: 24-Pack
• UL Listed for fan and fixture support

Features

• Heavy-duty slide with deep metal box
• Rotating dual-purpose mounting supports for fan (#10-32 screws) and fixture (#8-32 screws) mounting
• Peel-off tape for hands-free installation
• Pre-assembled with ground screw installed
• Includes top and side knockouts for wiring access
• Supports ceiling fans up to 70 lbs and fixtures up to 110 lbs at 16-inch spans

Downloads & Links

• Reiker Fan & Fixture Supports
• Spec Sheet
• Cleaning Instructions for Wiring Devices
