Features

• Meets FCC Part 68 standard
• All data and phone modules 568A wired
• Made of High impact plastic resistant material
• Standard Product

Specifications

• Country of Origin: Taiwan
• Width: 3.400 in
• Each - Width: 3.400 in
• Industry Standard(s): Meets FCC Part 68 Standard;RoHS Compliant;UL and cUL Listed
• Application: Telephone
• Contact: Phosphor Bronze
• Contact Resistance: Per TIA
• Enclosure: Integral
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insertion Loss: Per TIA
• Special Features: Standard Product
• Standard: Meets FCC Part 68 Standard;RoHS Compliant;UL and cUL Listed
• Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Type: Telephone
• Connectivity: Plug-In
• Display Size: Standard Sized Product
• Enclosure Type: Integral
• Style: Telephone
• Class Code: A82

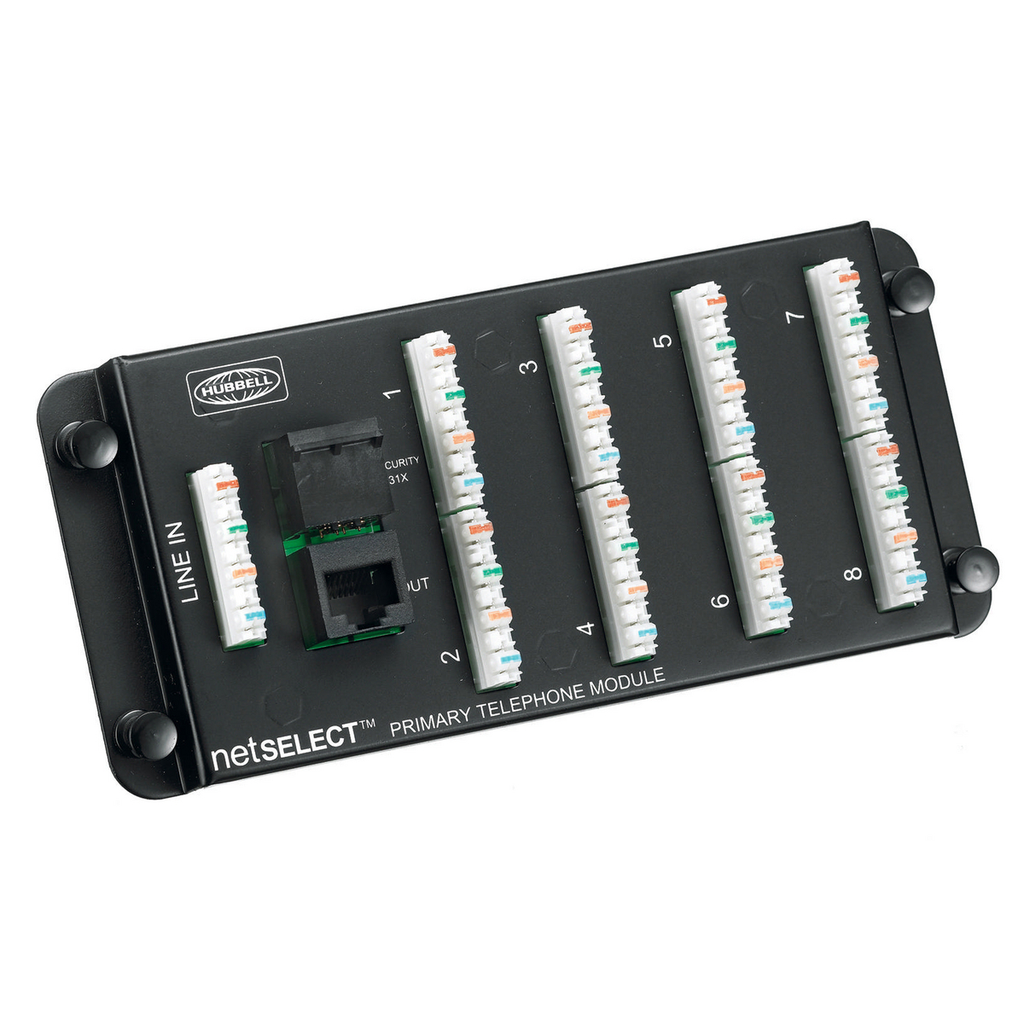

• Description - Invoice: MODULE, NETSELECT,8P,PRIMARY TELEPHONE
• Freight Class Code: 06168002
• Harmonization Code: 8536908585
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: HSOPTM8
• Sub Class Code: HPWALL2
• Material - Mounting Hardware: Screw Mounting
• Base Unit of Measure: EA
• BOX SIZE: 7.700x9.600x7.200 (in)
• Carton - Gross Weight per Pack: 5.900 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 883778500329
• Carton - Total Units: 10 EA
• Case Weight: 4.350 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: Yes
