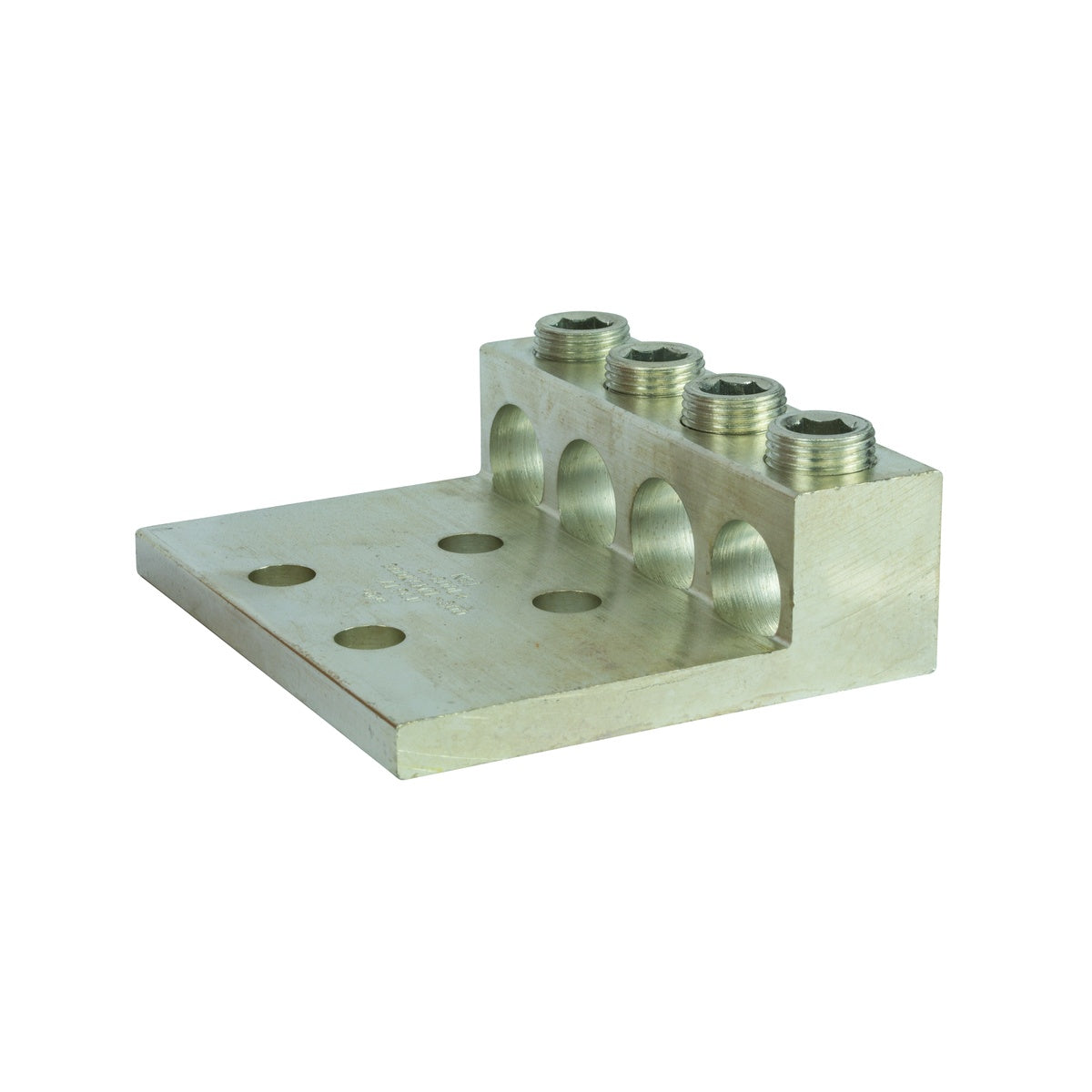

Nema Panelboard Lug (4) 800-300 MCM – Electrical Connector

This Nema Panelboard Lug is designed for wire termination applications, providing a secure and reliable connection for copper or aluminum conductors. It is suitable for use by electrical distributors and switchgear suppliers as part of lighting solutions or wire and cable installations. The lug features large size set-screw connectors with multiple mounting holes spaced to NEMA standards, ensuring a turn-prevent connection in panelboards.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated for low contact resistance
• Wire Range: 800 MCM - 350 MCM
• Voltage Rating: 600V max (2000V max per UL486B)
• Temperature Rating: 90 degrees Celsius
• Dimensions (L x W x H): 4.75 in x 5.38 in x 1.69 in
• Mounting Hole Spacing: NEMA standard 1.75 inches
• UL Listings: UL 486A/B Listed, Wire Connector E155027
• Country of Origin: United States
• Product Weight: 4.2 lbs

Features

• Large size set-screw connectors with multiple NEMA spaced mounting holes for secure, turn-prevent connection
• Constructed from durable 6061T-6 aluminum alloy
• Tin plating reduces contact resistance and enhances conductivity
• Compatible with copper and aluminum conductors
• Meets industry standards for panelboard lug applications
• Made in the USA
